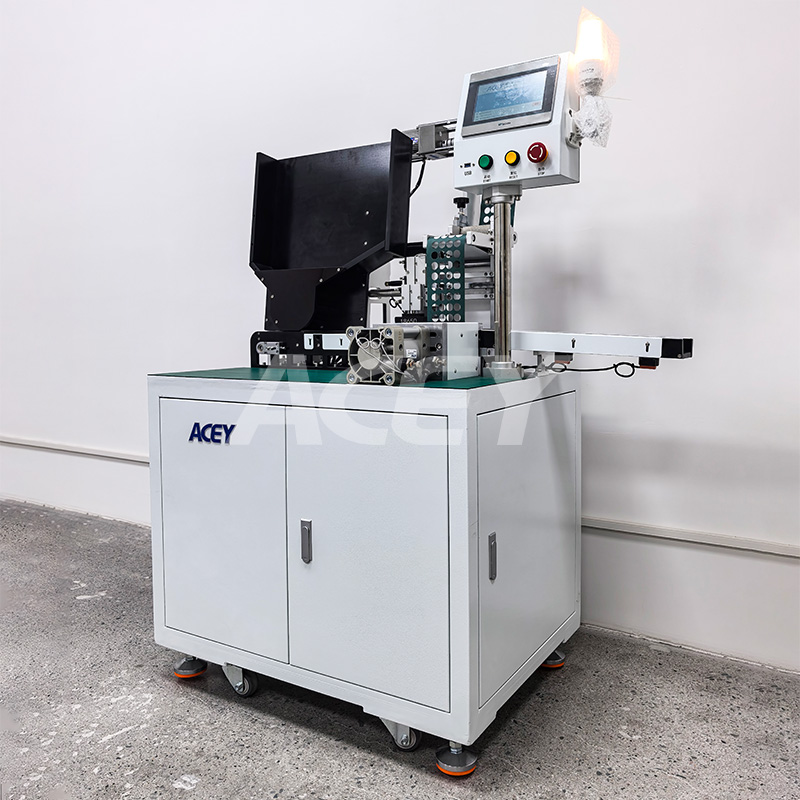

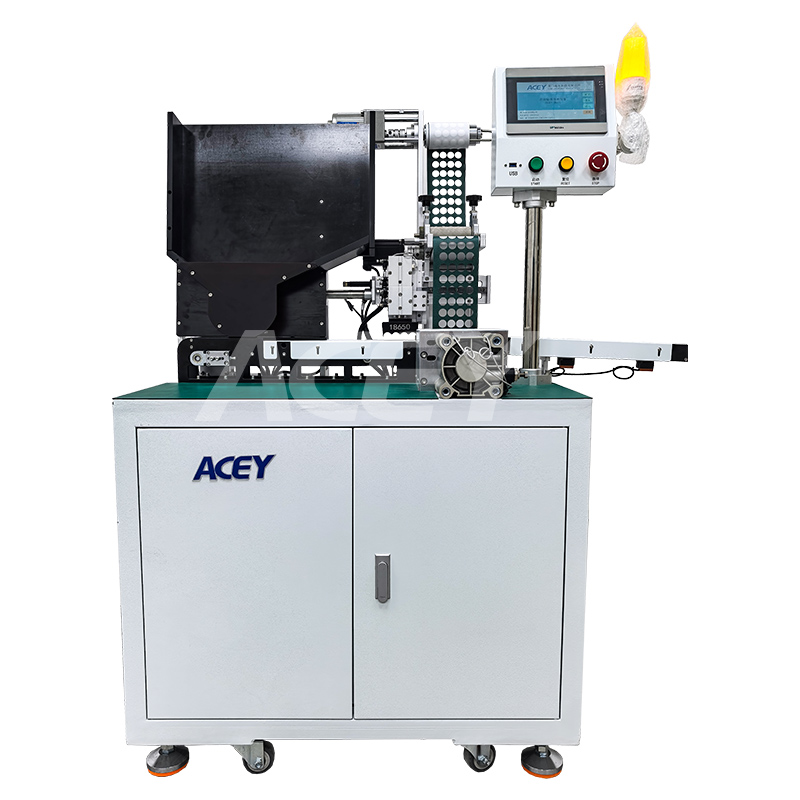

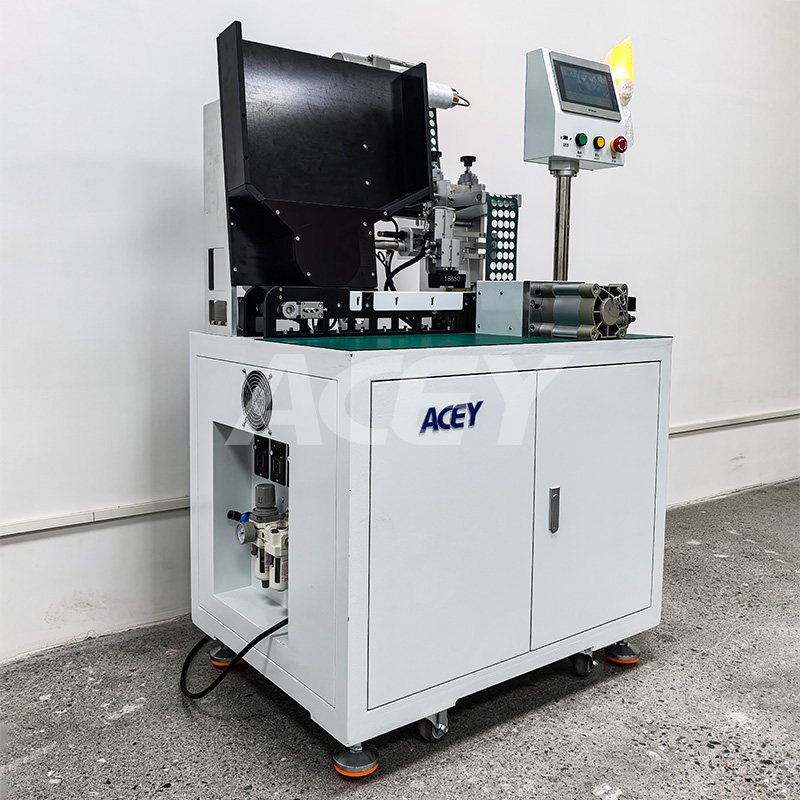

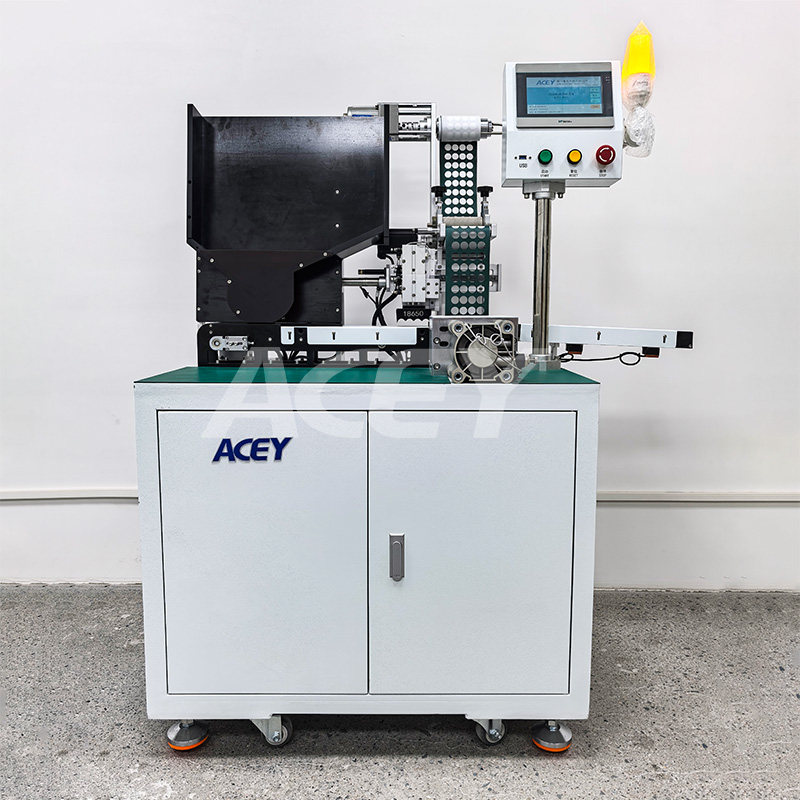

Cylindrical Cell Fish Paper Wrapping Machine For 18650 21700 26650 32650 32700

ACEY-BS01 Cylindrical battery fish paper sticking machine is used to automatically paste insulating paper onto the positive and negative terminals of cylindrical battery cells, improving the insulation protection and safety performance of battery pack assembly.

  • Brand:

    ACEY

  • Item No.:

    ACEY-BS01

  • Compliance:

    CE Certified

  • Warranty:

    One-year warranty with lifetime support

  • Order(Moq):

    1set

  • Payment:

    T/T

  • Product Origin:

    China

  • Lead Time:

    7-35 days
INQUIRE now
Product Catalog
  • Product Detail

Automatic Cylindrical Cell Insulation Paper Fish Paper Wrapping Sticking Machine For 18650 21700 26650 32650 32700


Description

ACEY-BS01 cylindrical cell fish paper warpping machine is designed for automatically applying fish paper pads or PVC insulation to the positive or negative terminals of 18650 cells. By replacing the mold, it can also be used for other cylindrical cells—such as 21700, 26650, 32650, 32700, and more—to perform automatic insulation paper application.


Features

  • The padding effect is consistent, and the adhesion is firm and aesthetically pleasing.
  • The equipment is easy to debug, learn, and understand, with fixed parameters, and is equipped with manual operation, single-step operation, and automatic operation programs.
  • The equipment has a compact structure design, beautiful appearance and small space occupation.
  • The equipment is equipped with universal movable casters, which makes it easy to move and transport the equipment.


Specification

Model No.

ACEY-BS01

Voltage Supply

single-phase ~ 220V, 50Hz

Rated power

2KW

Surface pad material

highland barley paper or PVC material

Material specification requirements

the max diameter of barley paper roll material is 350MM,

the inner diameter of paper roll core is 72-75MM

batrery type

18650 battery cell positive or negative pole is automatically pasted with highland barley paper mat or PVC material

Feeding method

insert battery cell hopper: 400pcs each time, available for 2 separate inserting units BNX-350 auto pasting

Pneumatic pressure

0.4-0.8Mpa barley paper machine

Cushioning power

electric or pneumatic

Control device

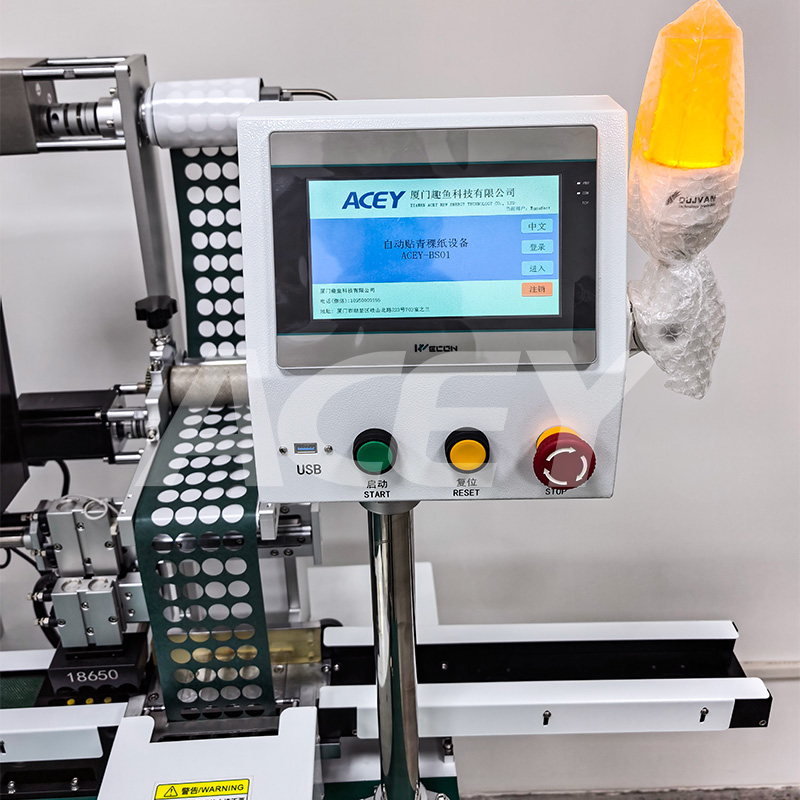

 7.5 inch touch screen, PLC programmer and servo motor
7.5 inch touch screen, PLC programmer and servo motor
 100mm
Speed
 4000-4500PCS/hour, 4PCS per punch
Dimensions
 L1110mm*W710mm*H1580mm
Machine weight
 200Kg
Knife mold
 slow-moving wire processing method, high precision, 5000 knife molds are coated once to remove sticky water

Product Details

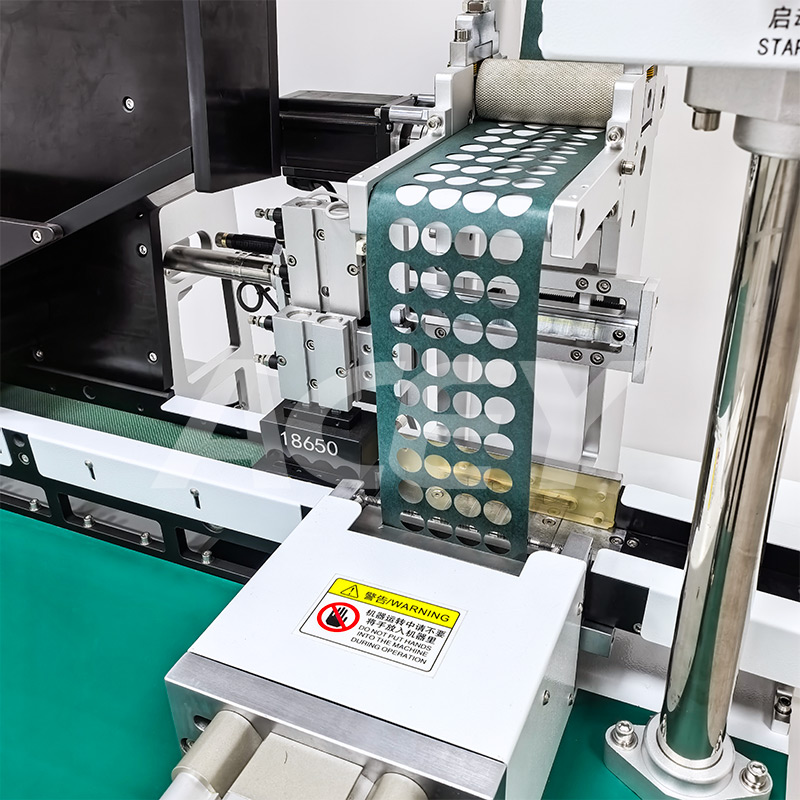

Cylindrical Cell Fish Paper Wrapping Machine

18650/21700 Cell Fish Paper Application Machine

Cylindrical Cell Terminal Insulation Pad Machine

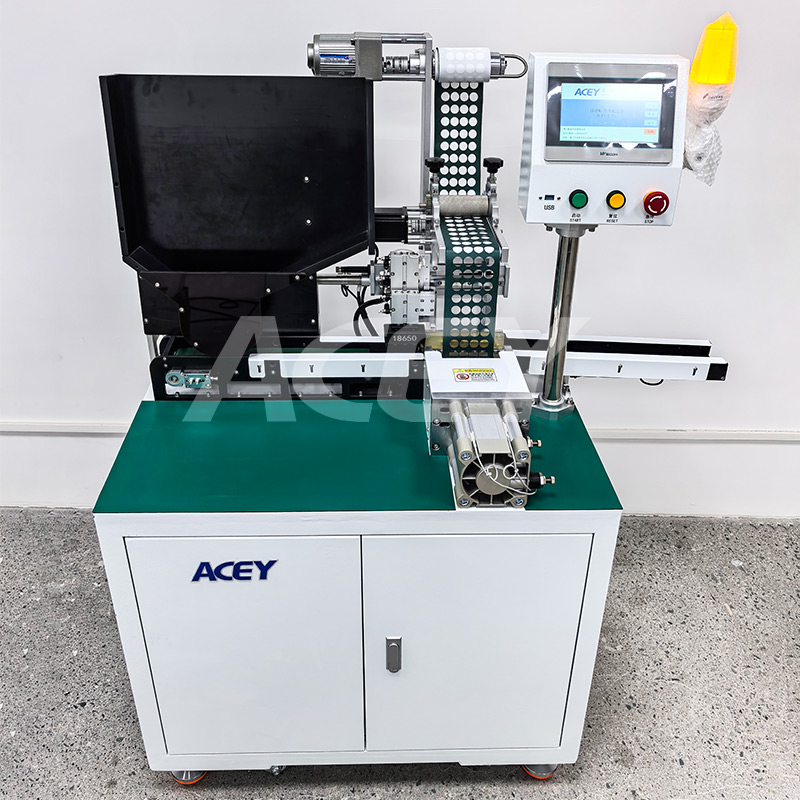

Cylindrical Cell Fish Paper Pasting Machine
