It is suitable for high-end micro-liquid precision metering, such as various liquid media in the industries of medicine, electrolyte, acid, solvent, dairy products, glue, reagent, etc.
Brand:
ACEYItem No.:
ACEY-EFP-1Compliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaLead Time:

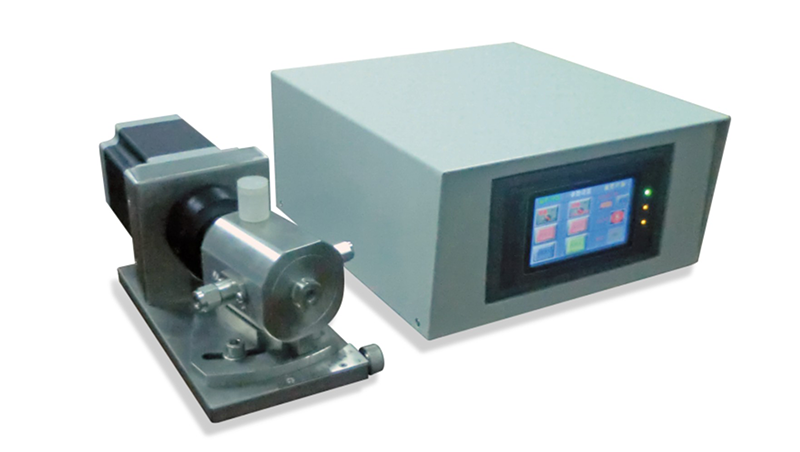

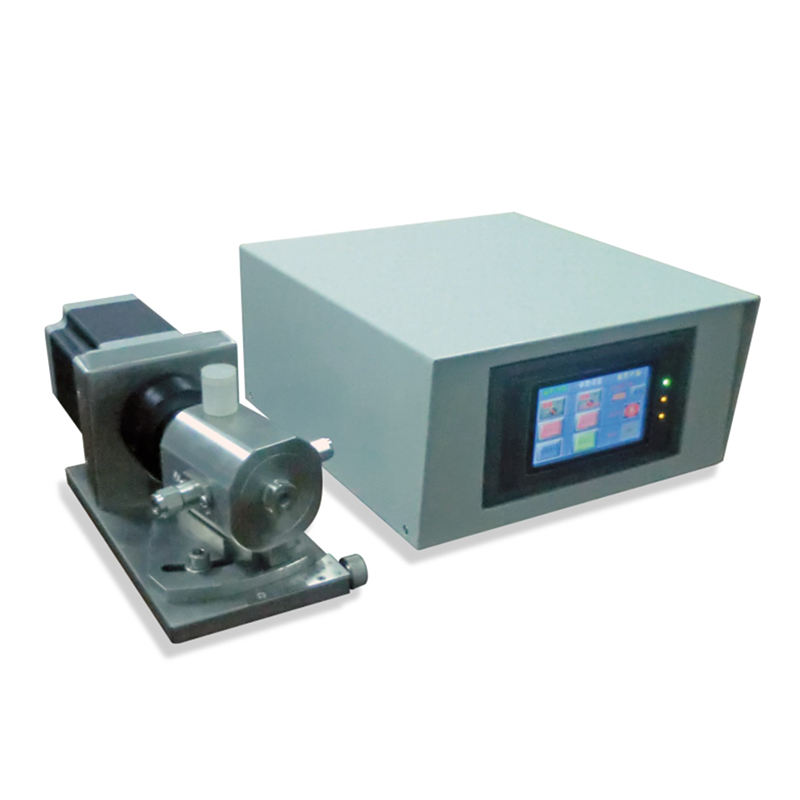

7daysMicro Precision Li ion Battery Electrolyte Filling Pump With Touch Screen
Description
The high-precision electric metering pump uses the connection of the coupling and the stepping motor to drive the plunger rod to reciprocately rotate in the ceramic cavity, forming a reciprocating valve direction switch between the liquid inlet and the liquid outlet. So as to achieve the goal of accurately controlling the inflow and outflow of the liquid medium .
Features
1. Suitable for high-end micro-precision liquid medium metering filling, adding, liquid injection, spraying and marking.Adopting valveless design, the flow is extremely stable, and the flow accuracy is within ±3‰.
2. The pump core material is made of special industrial ceramics (Zirconium Oxide ZrO₂, Alumina Al₂O₃), which has high-strength wear resistance, acid and alkali corrosion resistance, high temperature resistance, and long service life.
3. With anti-chemical reaction, the contact medium part is ceramic.
4. The pump core and pump sleeve are processed by a combination of nanotechnology and gel injection molding technology, with uniform microstructure and extremely high density. The matching accuracy is extremely high, achieving self-sealing, self-lubricating ceramic technology, without additional seals and lubricants.
5. Pump cover and component mechanism are uniformly resistant to acid and alkali, etc., which can adapt to the measurement of liquid in various harsh environments.
6. The design structure is a positive displacement plunger structure, reciprocating rotation, adjusting the stroke length/rotation period to change the flow rate.
7. No waste, no air bubbles, no leakage, no dripping, no clogging.
8. The system has powerful functions, multi-capacity, multi-speed options, and can transform and reversely transfer liquid immediately.
9. No dynamic seals and wearing parts, moving parts plunger rod, easy maintenance.
10. Imported programmable controller and touch screen man-machine dialogue, convenient parameter setting, stable and reliable performance.
11. Measuring and filling can be carried out according to the set parameters, and the metering will be automatically stopped when the prescribed amount of liquid is reached.
12. Standard communication interface, which can be used independently or communicate with PLC or industrial computer conveniently.
13. The operator can calculate the total amount of liquid according to the actual production as: Q total (total liquid amount) = Q stroke (stroke amount) * N stroke (stroke number)
14. With positive pumping/retracting/retracting amount/delayed measurement/standby cleaning/capacity counting and other settable function modes.
15. The whole machine is small in appearance, beautiful in appearance, flexible in use, simple in operation, stable in operation, safe and reliable.
Specification
Model No.
ACEY-EF-1
product type
Single head 1 output 1 reciprocating rotary positive
displacement industrial ceramic plunger metering pump
2μm
1-1200rpm forward and reverse reversible
Research and control 4.3 inch touch screen man-machine
interface dialogue operation
Imported Panasonic programmable controller
0μL-10000μL Max10000 /1 stroke range
Q total (total amount of liquid meter) = Q stroke (stroke
amount) × N stroke (stroke number)
The temperature of the medium liquid is less than or equal to
250℃ (due to different materials, please specify when placing the order)
Φ2.5/Φ4.0/Φ6.0 (Needle and needle length optional)
AC 220V±10%, 50Hz/60Hz (standard) AC 110V±10%, 50Hz/60Hz
(optional)
IP31
Pump core material
ZrO₂, Al₂O₃
Pump core performance:Corrosion resistance, high temperature
resistance, wear resistance, high hardness, low friction coefficient, long life
Pump core matching accuracy
Drive method
Imported Servo Motor/Stepper Motor
range of rotation
Quick control method
pulse
Control display method
Programming software
Storage performance
The memory can store parameters and up to 100
recipes
Single stroke capacity range
Capacity calculation method
Measurement accuracy
Within five thousandths
Applicable medium temperature
Catheter:PE/Teflon/Inlet inner diameter Φ6, outer diameter
Φ8, outlet inner diameter Φ6, outer diameter Φ8
Discharge needle
Measuring pump size
L×W×H 201×125×147mm
Controller size
L×W×H 295×215×157mm
Weight
≈7.3kg including controller and metering pump
Applicable power supply
working environment
Temperature 0～40℃, relative
humidity <80%
Protection level
Safety performance
Password protection and factory recovery
function to ensure that the set parameters are not modified at will
