Battery Electrolyte Filling Machine 1500ul-6000ul Electronic Liquid Injection Pump

Suitable for high-precision fluid metering and injection in the electrolyte, capacitor, acid, alkali, glue, reagent and other industries.

  • Brand:

    ACEY
  • Item No.:

    ACEY-EFP
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1 set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Battery Electrolyte Filling Machine 1500ul-6000ul Electronic Liquid Injection Pump

Description

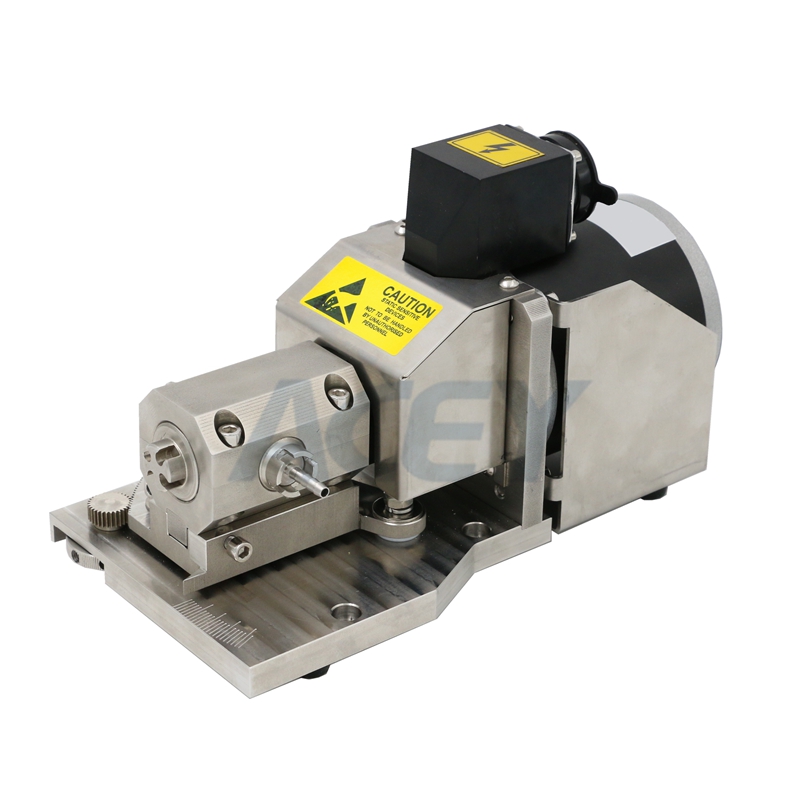

The precision ceramic liquid injection pump uses the connection of the coupling and the stepping motor to drive the plunger rod to reciprocately rotate in the ceramic cavity, forming a reciprocating valve direction between the liquid inlet and the liquid outlet Switch. So as to achieve the purpose of precisely controlling the fluid inflow and outflow.

Specification

Technical specification parameter

Type

Rotary reciprocating positive displacement Special ceramic injection pump

Drive device

Driven by stepping motor, the production tempo can be adjusted according to the demand

Ceramic material

It is made of alumina material and sintered at a high temperature of 1600, with uniform microstructure and extremely high density

Pump core process

High-precision polishing treatment, without any dynamic seals and lubricating oil

Pump core performance

High temperature resistance, wear resistance, acid and alkali resistance, high hardness, low friction coefficient.

Single punch capacity range

Single head pump, MAX50-1500ul /1 stroke, stroke times and production beat can be adjusted

Ceramic pump sleeve

stainless steel materials

Stroke precision

±3(medium water, without the influence of external environment, wind, vibration, etc.)

Inlet and outlet pipeline

Standard (inside diameter of liquid inlet pipe 6mm, outside diameter 8mm, inside diameter of liquid outlet pipe 4mm, outside diameter 6mm)

barrel of pump

270mm×120mm×145mm(length × width × height), pump weight 2.8kg

power supply

AC220V/50Hz single phase P250W

Electric box size

290mm×210mm×145mm(length × width × height)

Electric box color

metal baking paint, electric box weight 4.3kg

communication interface

standard interface

PLC

Maintenance

human-computer interface

Maintenance

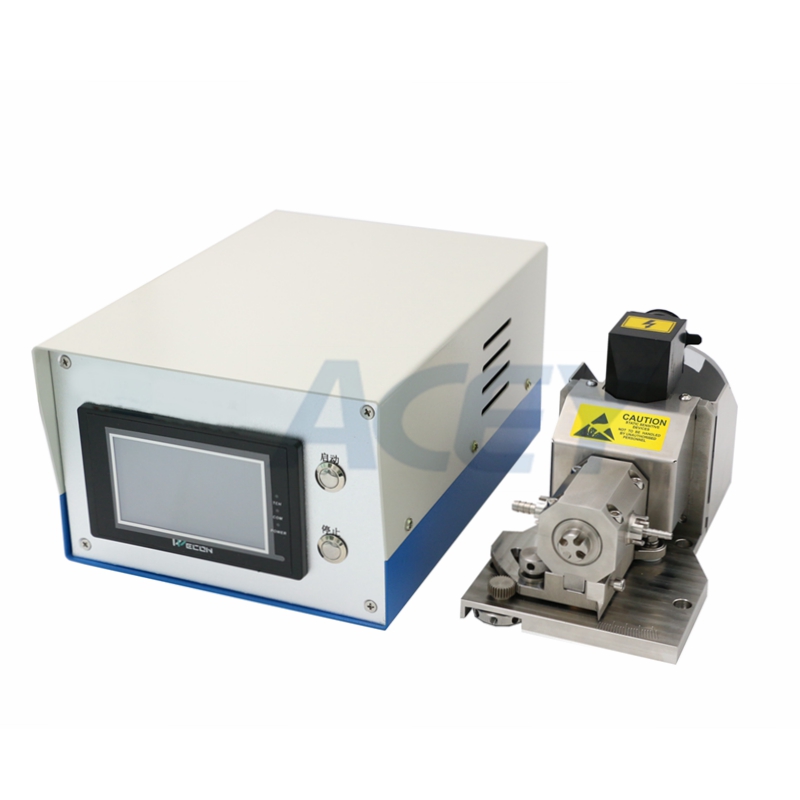

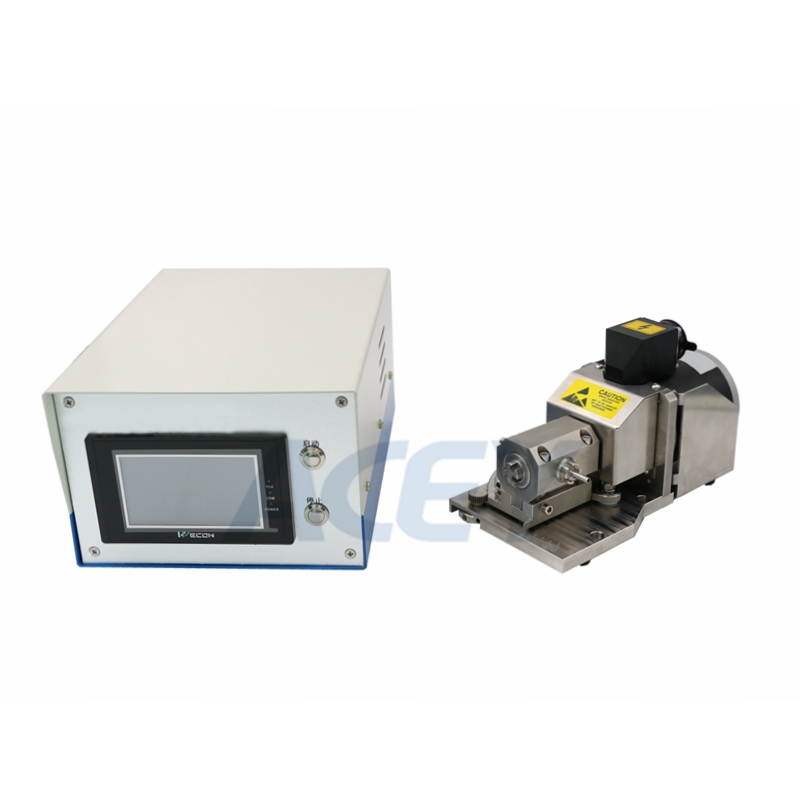

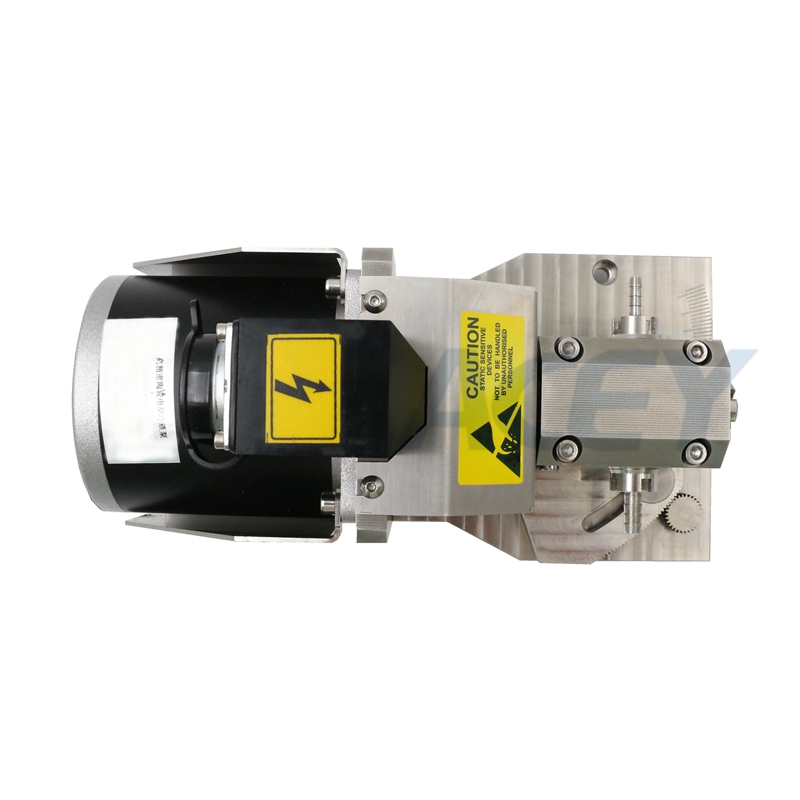

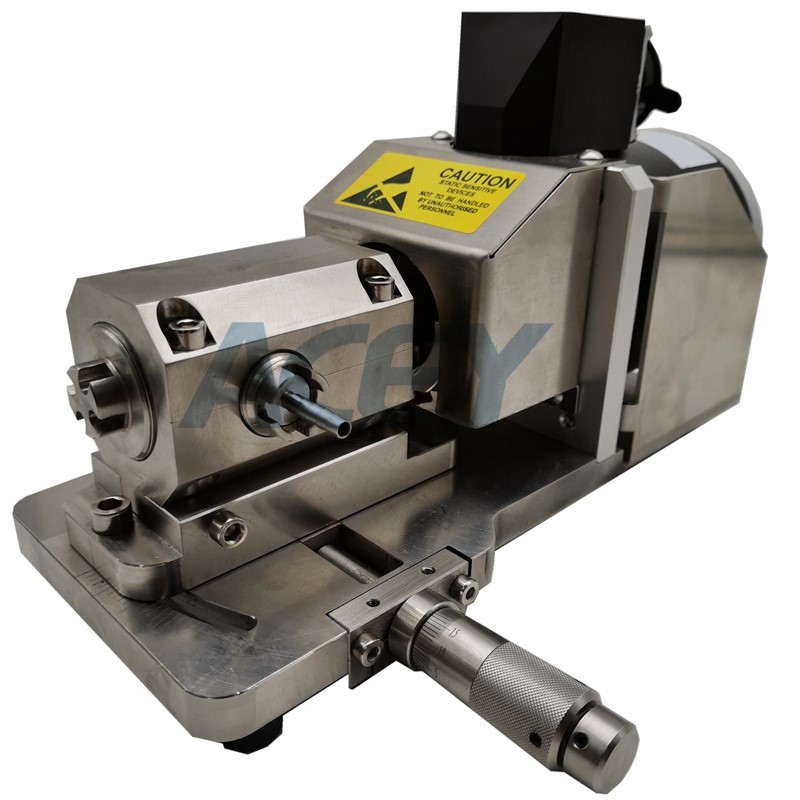

Product Display
