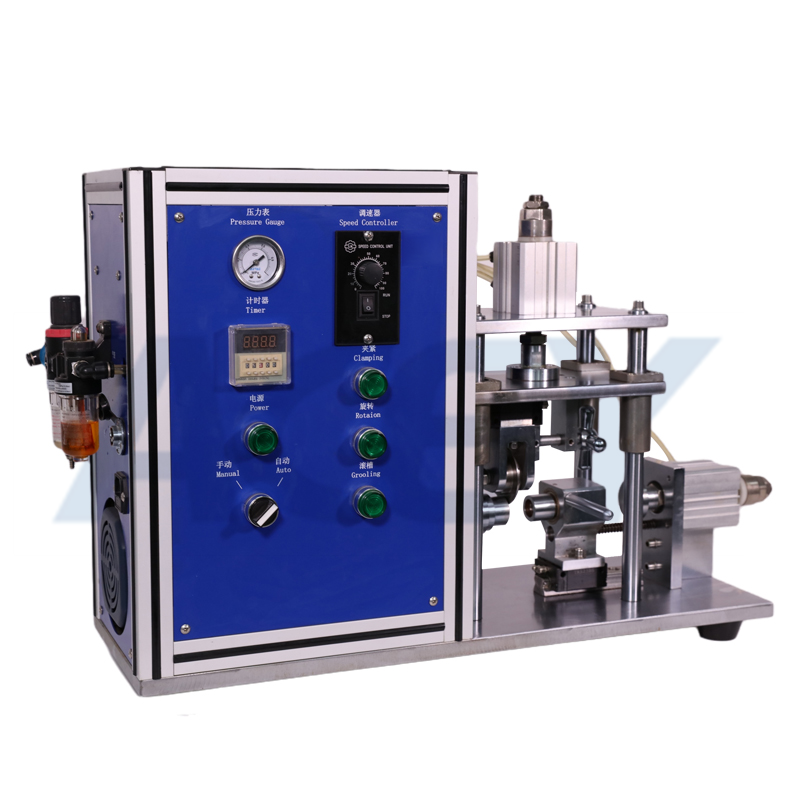

18650 Cell Grooving Machine For Cylindrical Battery Case Grooving

It is suitable for uniform and automatic rolling grooves of cylindrical steel shells (or capacitor aluminum shells) equipped with batteries.

  • Brand:

    ACEY
  • Item No.:

    ACEY-GM-1
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1 set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
Product Catalog
  • Product Detail

18650 Cell Grooving Machine For Cylindrical Battery Case Grooving

Description

*The rolling groove size is adjustable, with high precision and stable size.

*It can process various rolling grooves of cylindrical batteries.

*The machine is small in size, exquisite and beautiful in appearance, and easy to operate;

*Suitable for various steel shell cylindrical battery roll grooves such as 18650, 26650.21700...

*Suitable for aluminum shell capacitor rolling groove within Φ30

Specification

Roll groove depth

1.22.0mm (adjustable)

Rolling groove width

1.11.5mm (according to the thickness of the hob)

Processing accuracy

±0.1mm

Hob life

> 1 million times

Capacity

Semi-automatic 400 EA/H

Configuration power supply

220v/50Hz

Power

140W

Compressed air

0.5MPa0.7MPa

Dimensions

820mm X 255mm X 510mm

Weight

80kg.

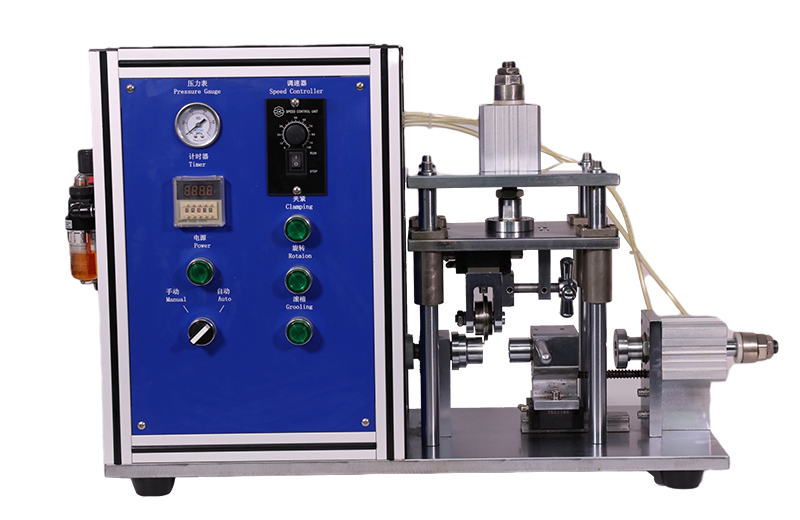

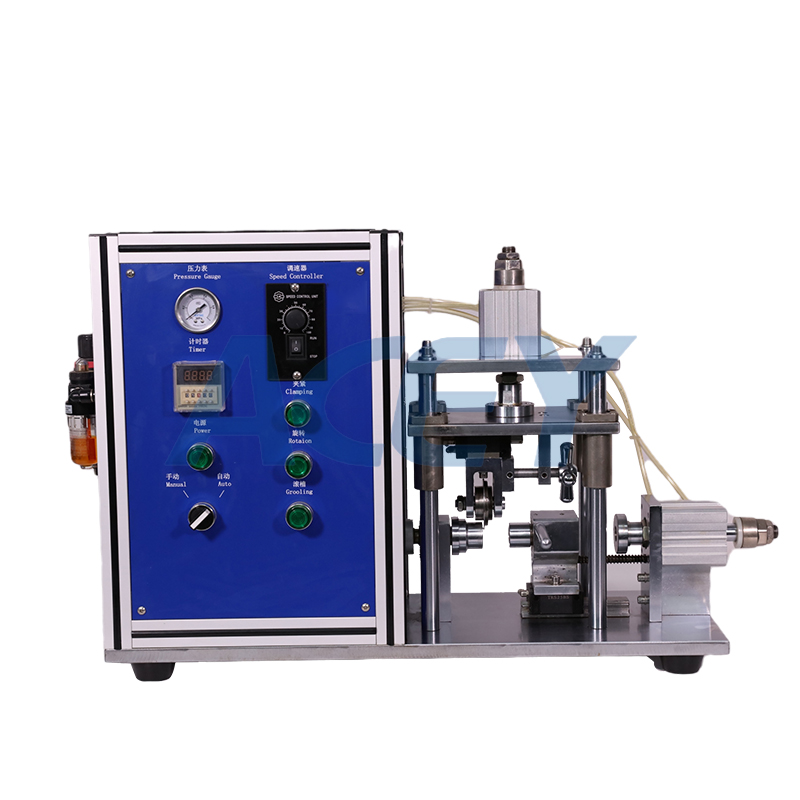

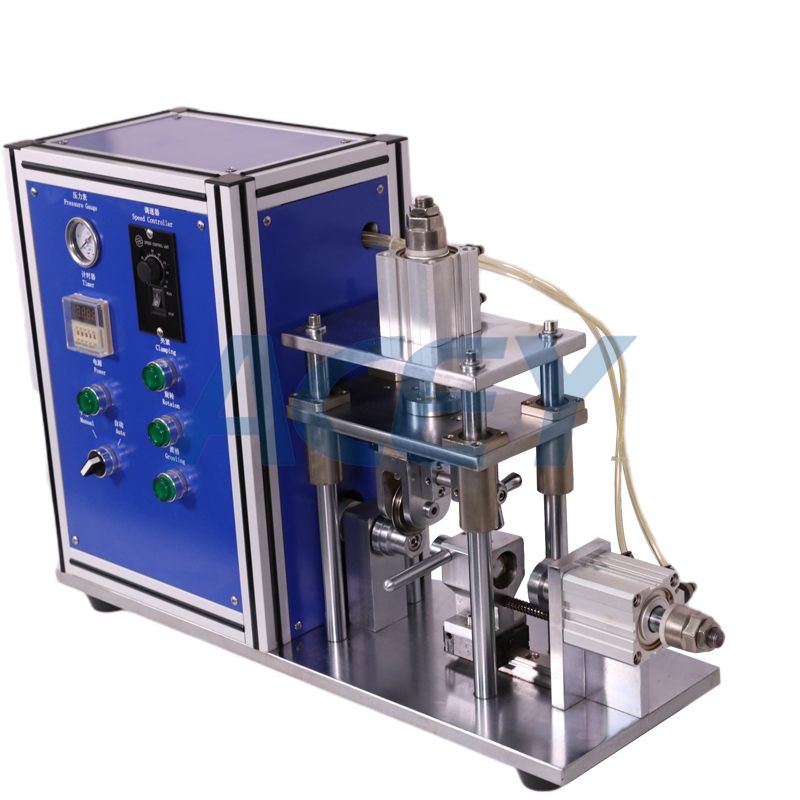

Product Display

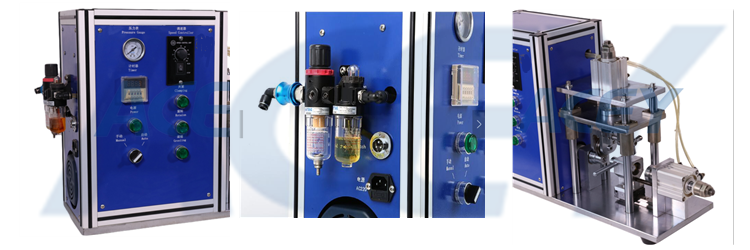

Details

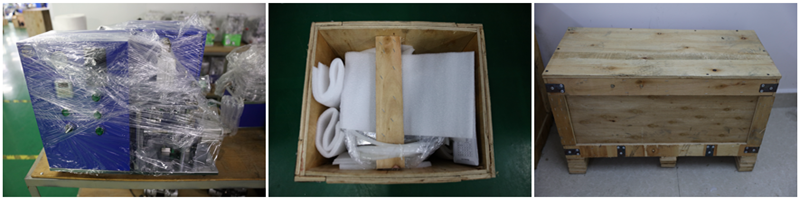

Packing


One-stop Solution

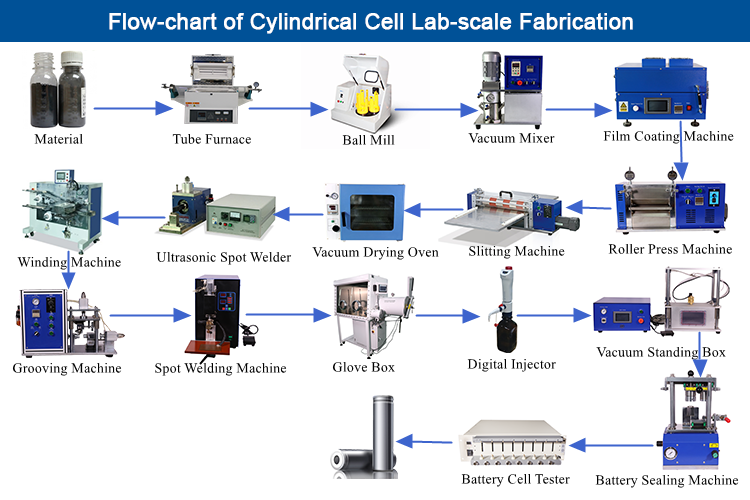

Flow-chart of Cylindrical Cell Lab-scale Fabrication
