Used for 21700,18650,26650,32650 Cylindrical battery research, producing.
Brand:
ACEYItem No.:
A-CC-21700Compliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
100 SetsProduct Origin:
ChinaLead Time:

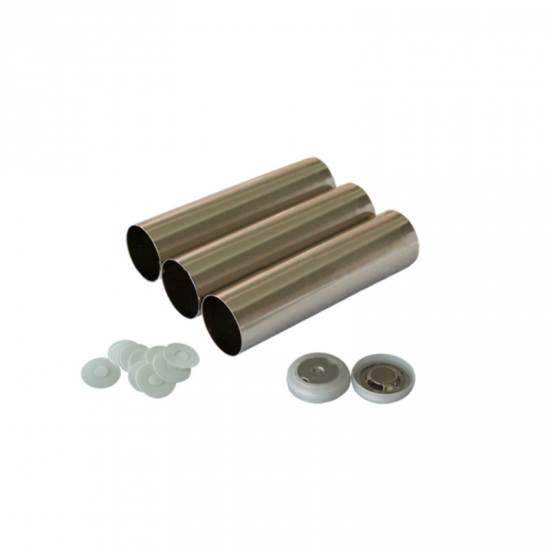

7days18650 26650 32650 21700 Battery Cylindrical Cell Case With Anti-Explosive Cap And Insulation O-Ring
Specification
21700 cylinder cell cases:
Specifications |
|
Dimensions (Dia x Height) |
1.Case Dimensions: 21.09mm(OD) x 21.52mm(ID) x 73.74mm(H); 2. Top Cap with O ring : 20.95mm(D) x 4.2mm(H); 3. 18650 and 38120 Cylinder Cell Cases can be supplied; 4.Material of 304ss and 316ss can be supplied. |
Materials |
Case are made of 304 stainless steel Cap are made of Nickel plated steel Seal O-ring are made of nylon(Optional) Insulating gasket are made of PP |
Note |
Min. order: 100 pcs per package |
26650 cylinder cell cases:
Specifications |
|
Dimensions (Dia x Height) |
Case: 26mm(OD) x 25.5mm(ID) x 68mm(H) Top Cap: 25.5mm(D) x 5mm(H) |
Materials |
Case and cap made of Nicke plated A3 steel and seal O-ring made of nylon |
Weight |
18.75 g/pcs |
Note |
Safety valve's open pressure: 2.8MPa (the cap valve will open to release interior high pressure if over 2.8MPa to ensure no explosion from the can) |
18650 cylinder cell cases:
Specifications |
|
Cap |
Cap with Built-in PTC Thermistor |
Dimensions (Dia x Height) |
· Case: 18mm(OD) x 17.5mm(ID) x 67mm(H) · Top Cap: 17.5mm(D) x 4.05mm(H) · Top Insulator: 12.5mm(D) x 0.19mm(H) · Bottom Insulator: 12.5mm(D) x 0.19mm(H) |
Materials |
· case and cap made of Nicke plated A3 steel and seal O-ring made of nylon |
Weight |
9.50 g/pcs |
Note |
Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure if over 2.5MPa to ensure no explosion from the can) |
32650 cylinder cell cases:
Specifications |
|
Dimensions (Dia x Height) |
· Case: 32mm(OD) x 31.5mm(ID) x 68mm(H) · Top Cap: 31.5mm(D) x 5.3mm(H) |
Materials |
· case and cap made of Nicke plated A3 steel and seal O-ring made of nylon |
Weight |
· 28.85g/pcs |
