304 SS 18650 Battery Cases With Anti-Explosive Cap And Insulation O-Ring

18650 Battery Case with Anti-Explosive Cap and Insulation O-ring,Used for 18650 battery research, producing.

  • Brand:

    ACEY
  • Item No.:

    A-CC-18650
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    100 Sets
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
Product Catalog
  • Product Detail

304 SS 18650 Battery Cases With  Anti-Explosive Cap And Insulation O-Ring

Description

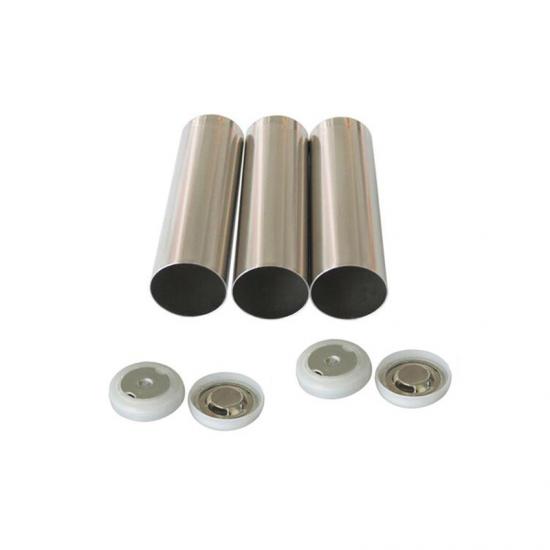

18650 Battery Case with Anti-Explosive Cap and Insulation O-ring,Used for 18650 battery research, producing, especially for Powerful 18650 battery making,100set/package included Cylinder cell case, Cap and up/down spacer.

Specification

Case Dimensions

18.15mm(OD) x 17.6mm(ID) x 68.25mm(H)

Top Cap

17.6mm(D) x 3.85mm(H)

Top Cap with O ring

17.6mm(D) x 4mm(H)

Top Insulator

17mm(D) x 0.12mm(H) with 6.5mm hole

Bottom Insulator

17mm(D) x 0.12mm(H) with 6.5mm hole

 Material

Case

304ss stainless steel

cap

Nickel plated steel

Seal O-ring

Nylon

Insulating gasket

PP
