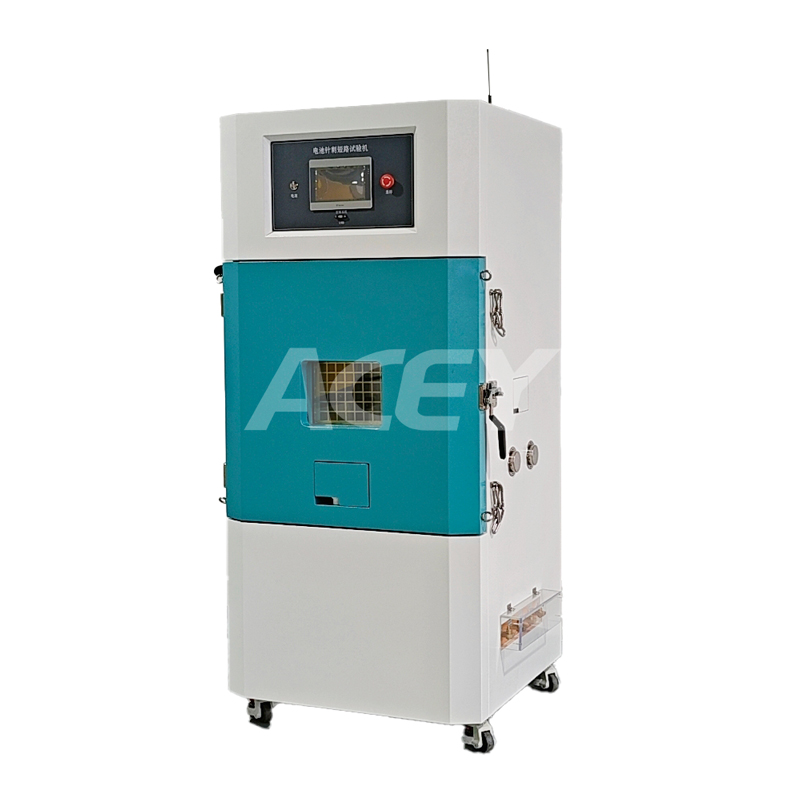

ACEY-6007C battery nail penetration test machine is used to simulate extreme scenarios where batteries are punctured by sharp objects during transportation and use. It detects whether the battery will experience safety issues such as fire, explosion, or leakage, thereby evaluating the battery's puncture resistance. It is mainly used for factory quality inspection and safety performance verification during the R&D stage of new energy batteries such as lithium-ion batteries and lithium polymer batteries. It is a key piece of equipment for battery manufacturers and quality inspection agencies to ensure battery safety.
Brand:
ACEYItem No.:
ACEY-6007CCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 daysLithium Battery Needle Puncture Nail Penetration Test Machine
Description
ACEY-6007C battery nail puncture test equipment is a professional safety testing device used to test the thermal stability and internal short-circuit performance of lithium batteries under extreme scenarios where they are punctured by sharp objects. This equipment simulates a real-world puncture scenario by inserting steel nails into the battery at a controlled speed and pressure, detecting whether the battery will experience safety issues such as fire, explosion, or leakage. It is widely used in the research, development, quality control, and certification testing of lithium-ion batteries and battery packs.
Equipment Principle
Battery needle puncture test machine works by using a motor to drive a rigid puncture needle through preset mechanical parameters to puncture a battery in a specific state. It monitors and records the battery's thermal runaway and safety performance in real time after puncture.
Specification
ACEY-6007C-700 (Touch Screen)
ACEY-6007B-700 (PC Control)
ACEY-6007C-1000 (Touch Screen)
ACEY-6007B-1000 (PC Control)
Model
ACEY-6007C (Touch Screen)
Test Chamber Size
600×500×550 mm (Custom size or front-opening optional)
700×700×700 mm (Custom size or front-opening optional)
1000×1000×1000 mm (Custom size or front-opening optional)
Inner Chamber Material
High-quality stainless steel, inner liner 1.5 mm
High-quality stainless steel, inner liner 2 mm / 3 mm (optional)
High-quality stainless steel, inner liner 3 mm / 5 mm (optional)
Applicable Test Batteries
3C digital polymer batteries, cells ≤ 30Ah
Battery packs for 2/3-wheeled vehicles, drones, energy storage batteries, power batteries, etc.(select appropriate model per test battery)
Structure
Left-side opening
Driving System
Servo motor drive system
Nail Penetration Speed
0.1–40 mm/s (adjustable)
0.1 mm/s ~ 80 mm/s (speed accuracy 0.05 mm/s)
Stroke Range
0–200 mm (position accuracy 0.1 mm)
0–200 / 400 mm (optional) (position accuracy 0.1 mm)
Voltage acquisition
Voltage Channels
1 channel
2 / 4 / 8 channels (optional; supports voltage measurement)
Voltage Range
0–10V (accuracy 0.1%FS)
0–10V (accuracy 0.1%FS) / 0–100V (accuracy 0.2%FS)
Voltage Resolution
0.01V
0.01V / 0.1V
Voltage Sampling Rate
10 Hz
10 Hz / 100 Hz (optional)
10 Hz / 100 Hz (optional)
Temperature acquisition
Temperature Channels
1 or 2 channels (optional)
2 / 4 / 8 channels (optional)
Temperature Range
0–1000°C (accuracy ±2°C)
0–1000°C (accuracy ±2°C)
Temperature Resolution
0.1°C
0.1°C
Temperature Sampling Rate
10 Hz
10 Hz / 100 Hz (optional)
Controller
Touch screen control
Touch screen / PC software control (optional)
Needle clamp
Single needle clamp *1
Single needle clamp *1 / Module three-pin clamp *1 (optional)
Steel Nails (SKD11)
φ3/5/8 mm, length 100 mm × 2 pcs
φ1/2/3/4/5/6/7/8/10 mm, length 100 mm, length 150 mm(2 pcs each by default)
Test chamber structure
Observation Window
Equipped with high-strength explosion-proof tempered glass
Lighting
LED illumination for observation
Test hole
The right side and the right side have 50mm diameter test lead holes for easy access of the test connection wires (80mm/100mm diameter specifications can be specified).
Exhaust System
Exhaust pipe at rear of chamber; can connect to fume extractor (optional automatic smoke detection & exhaust system)
Pressure Relief Device
Integrated safety pressure relief port to release internal pressure and ensure safety
Optional Items
(Optional) Video monitoring: high-definition camera for real-time viewing & recording; supports dynamic playback (PC not included for PC models)
Product Display
Battery drop tester
This machine is suitable for the free fall test of mobile phones, lithium batteries, interphones, electronic dictionaries, building intercom phones, CD/MD/MP3, and other small consumer electronic products and components.
Temperature control Lithium Battery Short Circuit Testing Equipment
This series of equipment is one of the commonly used equipment in all kinds of baking, aging and high temperature experiments.
Computerized Battery Extrusion Needling Machine
The extrusion direction of the extrusion test should follow the following rules: a battery is only squeezed once, and the battery is qualified
High Temperature Battery Burning Test Machine
This battery burning tester is necessary testing equipments to test battery burning resistance.
Lithium Battery Washing Test Machine
This testing machine is suitable for the batteries or battery packs.
Simulate High Altitude And Low Pressure Test Chamber
An altitude chamber combines temperature and low-pressure altitude with optional humidity to test basic components or sub-assemblies for a variety of industries
Thermal abuse test chamber
This series of equipment is one of the commonly used equipment in various baking and aging experiments.
