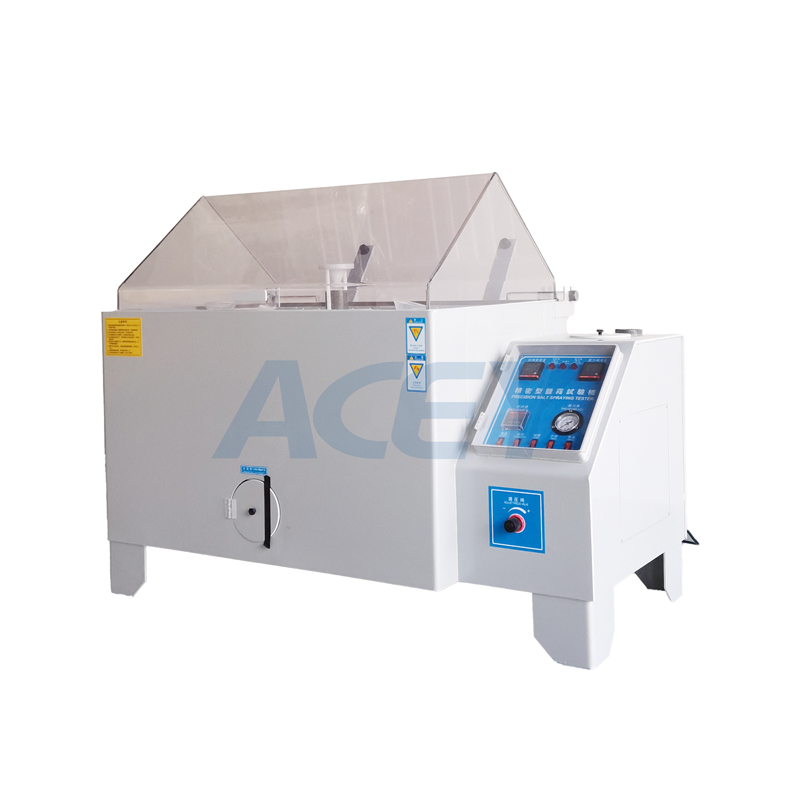

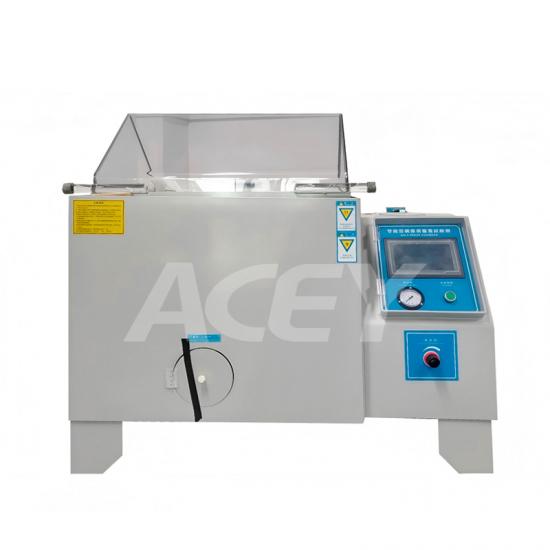

Salt Water Spray Fog Cyclic Corrosion Test Chamber

ACEY-120A Salt Spray Test Chamber is used to evaluate the corrosion resistance of various materials and their protective coatings. It is widely applied in metal electroplating, surface coating, electronics, electrical appliances, automotive parts, and new energy industries, making it an essential equipment for quality control of material corrosion resistance.

Brand:
ACEY
Item No.:
ACEY-120A
Compliance:
CE Certified
Warranty:
One-year warranty with lifetime support
Order(Moq):
1 set
Payment:
T/T
Product Origin:
China
Lead Time:
7-35 days

INQUIRE now

Product Catalog

New Products

Product Detail

Salt Water Spray Fog Cyclic Corrosion Test Chamber

Product Description

ACEY-120A salt spray corrosion test chamber is used to test the corrosion resistance of various materials after surface treatments, including coatings, electroplating, organic and inorganic films, anodizing, rust-preventive oils, and other anti-corrosion treatments.

Characteristics

Imported gray and white P.V.C board system, special treatment to resist corrosion. Plastic steel V-shaped frame with stainless steel tube angle placement, to ensure that the test object into 30 degrees oblique angle, six wheels glide, can be pushed.
Fine workmanship, beautiful appearance, high transparency, pneumatic opening lid.
Adopt automatic/manual water refilling system, with automatic/manual water refilling function when the water level is insufficient. The experiment is not interrupted to meet the diversified environmental requirements of guests. (Automatic water replenishment can be accessed only from the tap water pipe)
Nozzle: spray tower with conical disperser, with the function of guiding mist, adjusting the amount of mist, and evenly falling mist, etc.
The use of high-precision multi-functional timer, test time can be set multi-functional. With power failure memory function, after the call, according to the time before the power failure to continue to work until the product completed the required time, to avoid power failure after the experiment redo。
Salt spray experiments using steam direct heating method, fast heating speed, uniform temperature distribution, reduce standby time.
Two-button fully automatic operation. With full-detection fault warning system. Light-up display and beeping alarm when fault occurs
Adopt two built-in fog volume collection cartridges. Compared with the traditional external type, it is less likely to break.
With overload short circuit protection. Prevent damage to the instrument and internal electric control parts when abnormalities occur.
The inner and outer box is connected to the sealing groove, using water seal. Prevent salt spray from leaking out.
Imported temperature controller using digital display, PID control, error ± 0.1 ℃.
Temperature range: 1: Laboratory temperature: 35°C - pressure barrel temperature: 50°C (can be set arbitrarily) 2: Laboratory temperature: 47°C - pressure barrel temperature: 63°C (can be set arbitrarily)
The reagent supplement bottle adopts a hidden see-through window with water level, which is easy to clean and not easy to break.
Heating rate: 1: Laboratory, normal temperature ----→ 35°C for about 35 minutes 2: Pressure barrel, room temperature ----→ 47°C for about 15 minutes
Temperature accuracy: ±1℃
Applicable international standards: RELATEU STANDARDS CNS 3627、3885、4159、7669、8866； JIS D-0201、H-8502、H-8610、K-5400、Z-2371、ISO3768、3769、3770； ASTM B-117、ASTM B-268 B-268、GB-T2423、GJB150。

Product Parameter

Model	ACEY-120A (Touch Screen)
Internal Dimensions	1200×800×500(L×W×H)mm
External dimensions	2000×1300×1400(L×W×H)mm
Test chamber temperature	NSS ACSS 35℃±1℃/ CASS 50℃±1℃
Pressure drum temperature	NSS ACSS 47℃±1℃/ CASS 63℃±1℃
Test chamber volume	480L
Brine tank volume	40L
Compressed air pressure	1.00±0.01kgf/cm2
Spray volume	1.0-2.0ml/80cm2.h
Test chamber relative humidity	More than 85%

Related Models Specification

Model	ACEY-60A	ACEY-90A	ACEY-120A	ACEY-160A
Chamber Capacity	108L	270L	480L	800L
Inner Chamber Dimensions (mm)	600450400	900600500	1200800500	16001000500
Outer Chamber Dimensions (mm) Approx.	11006001100	14108801280	200013001400	200014001400
Chamber Temperature	Salt Spray Test (NSS ACSS): 35℃±1℃, Corrosion Resistance Test (CASS): 50℃±1℃
Saturated Air Barrel Temperature	Salt Spray Test (NSS ACSS): 47℃±1℃, Corrosion Resistance Test (CASS): 63℃±1℃
Spray Method	Continuous Spray	Equipment Material	Imported PVC Sheet, Impact-resistant, Thickness 5mm

Spray Volume	1.0ml-2.0ml/80cm²/h (Average of at least 16 hours)
Spray Pressure	1.00±0.01kgf/cm²
Standard Configuration	Main Unit x 1, 500g Sodium Chloride Reagent x 2 bottles, 5L Measuring Cup x 1
Neutral Salt Spray Test (NSS)	International standards require testing with a 5% saline concentration. Dissolve one 500g bottle of sodium chloride in 9500ml of pure water and stir evenly. The solution pH should be between (6.5 ~ 7.2). 24 hours of Neutral Salt Spray testing is equivalent to 1 year in the natural environment.
Acid Salt Spray Test (ASS)	Add approximately 10~15ml of glacial acetic acid to the neutral test saline solution, adjusting the pH to 3.0. The solution becomes acidic, and its corrosion rate is about 8 times faster than the neutral test. 24 hours of Acid Salt Spray testing is equivalent to 3 years in the natural environment.
Copper-Accelerated Acetic Acid Salt Spray Test (CASS)	Add approximately 10~15ml of glacial acetic acid to the neutral test saline solution, adjusting the pH to 3.0. Then add copper chloride at a ratio of 0.26g/L (2.6g for 9500ml of saline solution), mix uniformly, and add to the test machine. The test temperature is 50°C. Its corrosion rate is about 8 times faster than the neutral test. 24 hours of CASS testing is equivalent to 3 years in the natural environment.
Optional	Touch Screen
