XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
Brand:
ACEYItem No.:
ACEY-WHW-200L-5V50mA-160CHCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1Payment:
T/TProduct Origin:
ChinaLead Time:
7-35 days5V 50mA 200L Botton Cell Battery Cycler Tester Constant Temperature Test Chamber
Product Description

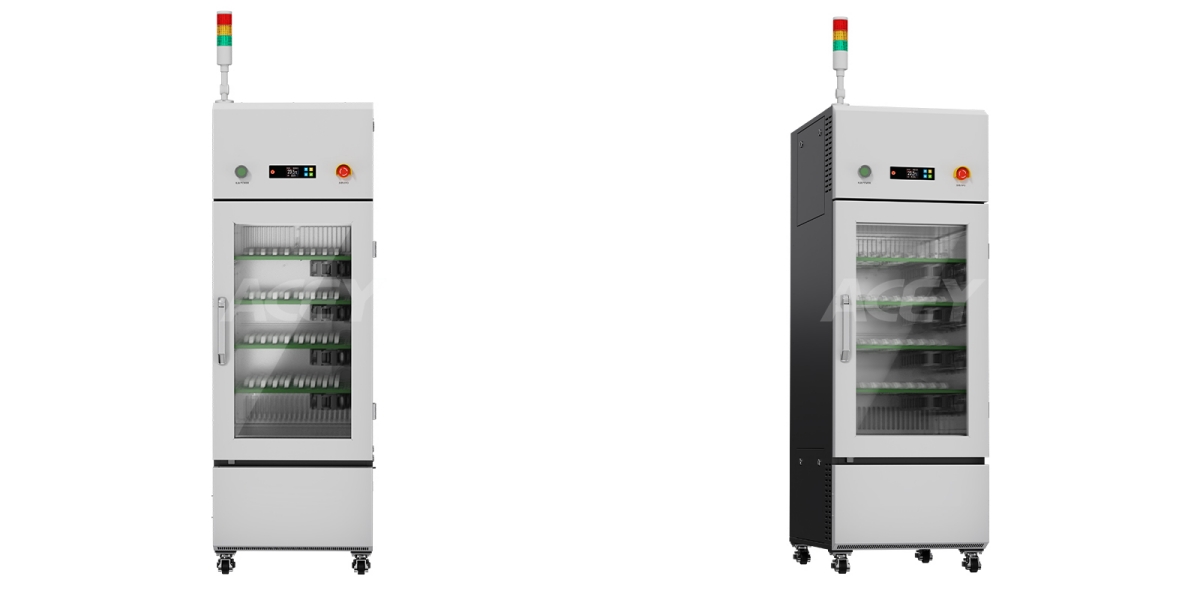

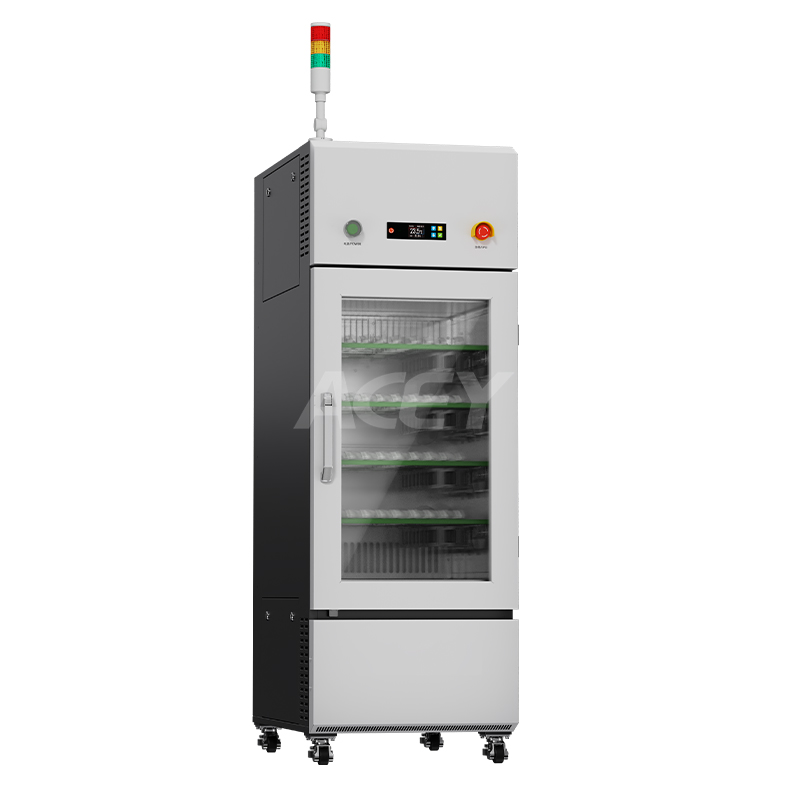

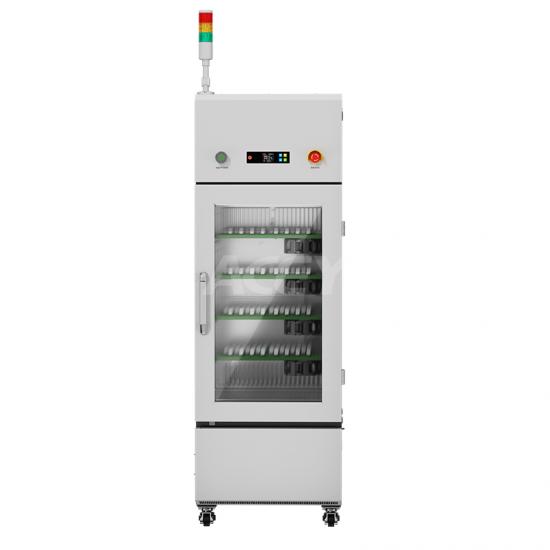

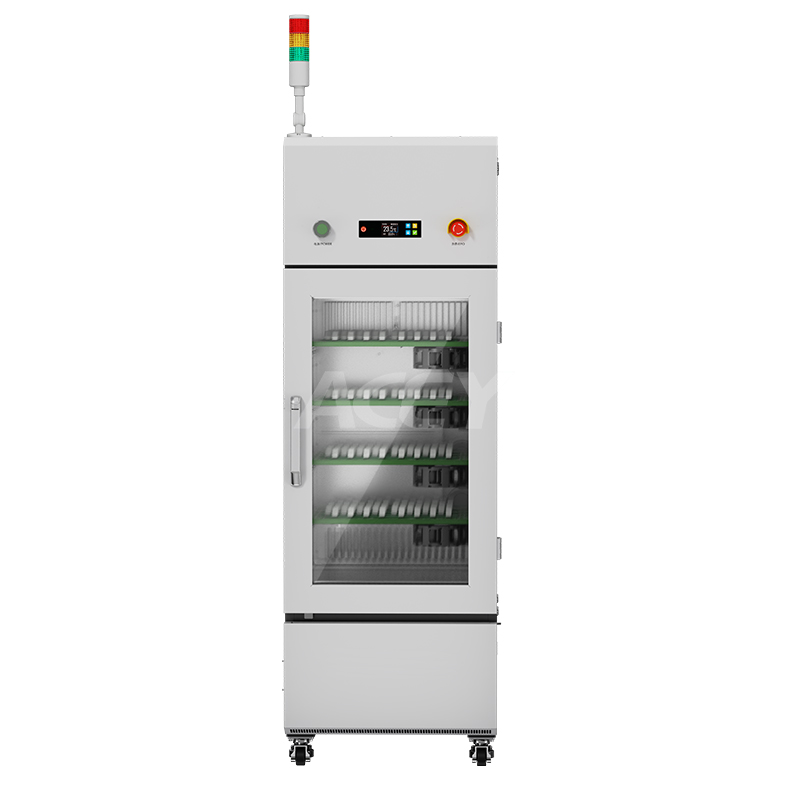

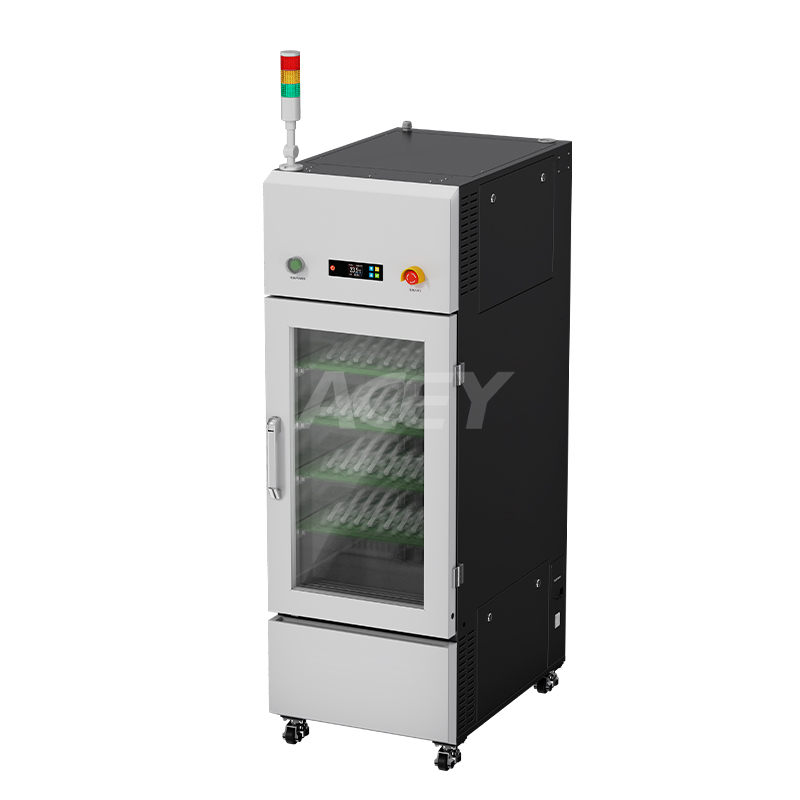

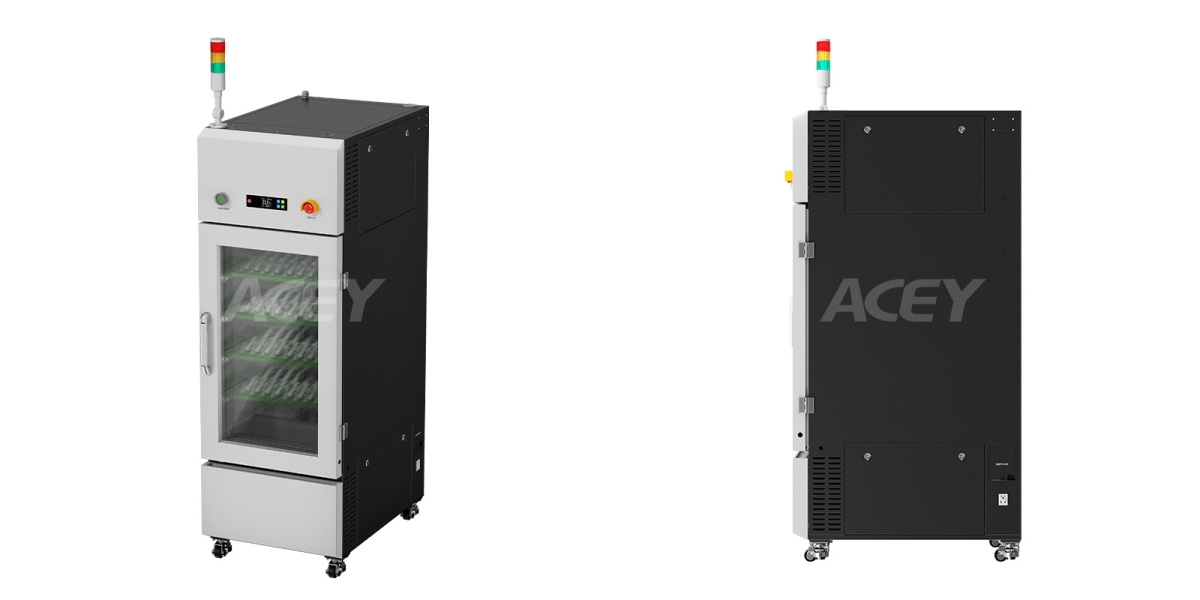

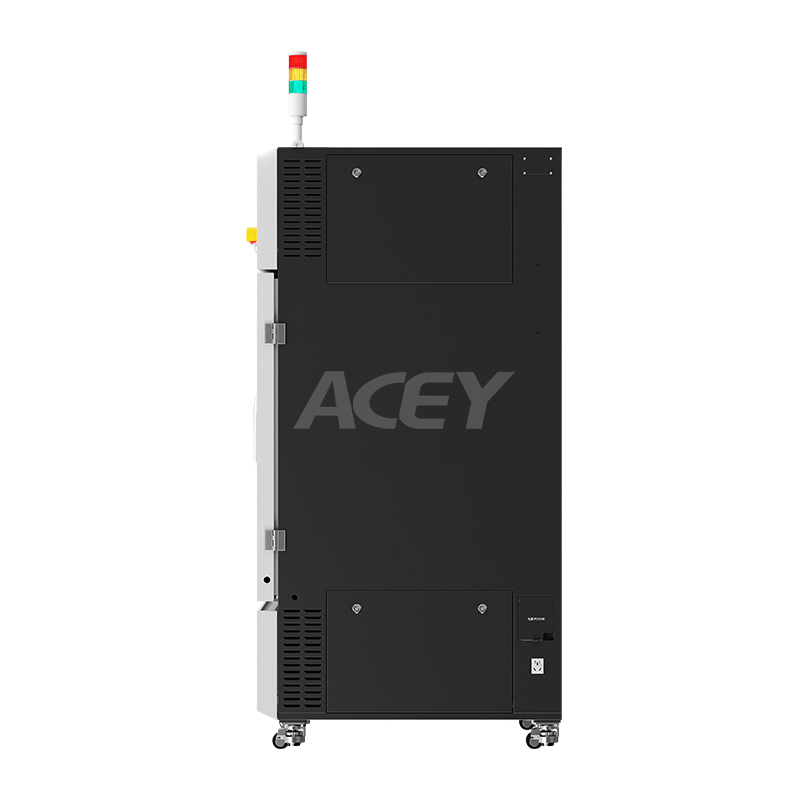

ACEY-WHW-200L-5V50mA-160CH temperature controlled battery testing system combines a coin cell charge-discharge tester with a constant temperature chamber, providing a compact solution for controlled battery performance evaluation. It is specially designed for constant temperature testing of coin cells during cycling, ensuring stable and uniform thermal conditions throughout the charge and discharge process.
Production Application
Product Parameters
Environmental Condition
Ambient temperature +25℃, relative humidity ≤85%, no sample in the test box (no loading)
Temperature Range
0℃～60℃
Temperature Fluctuation
≤±0.5 ℃（No loading, stable temperature）
Temperature Departure
±2.0℃（No loading, stable temperature）
Heating up Time
25℃→+60℃ ≤30 min（No loading, nonlinearity）
Cooling Time
25℃→-0℃ ≤50 min（No loading, nonlinearity）
Heat Preservation
Outside material: High quality cold-bonded steel plate, surface spray and paint treatment
Inner material: Stainless steel SUS304
Cabinet heat preservation material: Rigid polyurethane foam + glass wool (insulation thickness: 50mm)
Air conditioning
Centrifugal fan, heater, evaporator
Chamber
Standard
Configuration
Door: Hollow toughened glass and frame
Wire hole: (with soft rubber plug) 50mm four PCS (On the rear side of the box)
Caster: with foot break, 4 PCS
Sample rack: 4 layers of electrical insulation sample rack,load-bearing (Uniform) 10kg/layer
Light: LED light
Control Panel
Controller display screen
Heater
Stainless heating pipe
Control type: SSR
Cooling compressor
Totally enclosed piston compressor
Cooling method
Air cooling
Throttling gear
Capillary tube
Freezing medium
R134a
Welding technology
Protection welding with nitrogen
Test System Parameters
| Items | Values | |
| Resolution | AD:24bit; DA:16bit | |
| Input impedance | ≥1G Ω | |
| Voltage | CV output range | 10mV~5V |
| Min discharge voltage | -5V | |
| Accuracy | ± 0.02% FS | |
| Stability | 0. 04% of FS | |
| Current | Output range/channel | Range1: 0.1mA; Range2: 1mA; Range3: 10mA; Range4: 50mA |
| Minimum output current | 0.2μA | |
| Accuracy | ± 0.02% FS | |
| CV cut-off current | Range1: 0.1μA; Range2: 1μA; Range3: 10μA;Range4: 50μA | |
| Stability | 0.04% FS | |
| Power | Output power/channel | 0.25W |
| Stability | 0. 08% of FS | |
| Time | Current response time | <1ms ( 10%FS~90%FS) |
| Working step time | ≤ (365*24)h/step Time format-00:00:00.000(h, m, s, ms) | |
| Data record | Data record conditions | Min voltage change: 10mV |
| Data record Frequency | 10Hz(Min data record interval :100ms) | |
| Charge | Charge modes | CC, CV, CCCV, CP |
| Cut-off condition | Voltage, Current, Time, Capacity, Energy, - ΔV | |
| Discharge | Discharge modes | CC, CV, CCCV, CP, CR |
| Cut-off condition | Voltage, Current, Time, Capacity, Energy | |
| Pulse | Charge | CC, CP |
| Discharge | CC, CP | |
| Min pulse width | 500ms | |
| Pulse counts | Up to 32 | |
| Chg and Dschg switch | Supported | |
| Cut-off condition | Voltage, Time | |
| DCIR | Calculated DCIR values available in BTSDA | |
| Cycle | Max cycles | 65535 |
| Max steps | 254 | |
| Cycle nest | 3 | |
| Protection | Safety protection | ● Power-failure data protection |
| ● Offline operation mode | ||
| ● User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc. | ||
