XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
Brand:
ACEYItem No.:
ACEY-6004C-500Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:

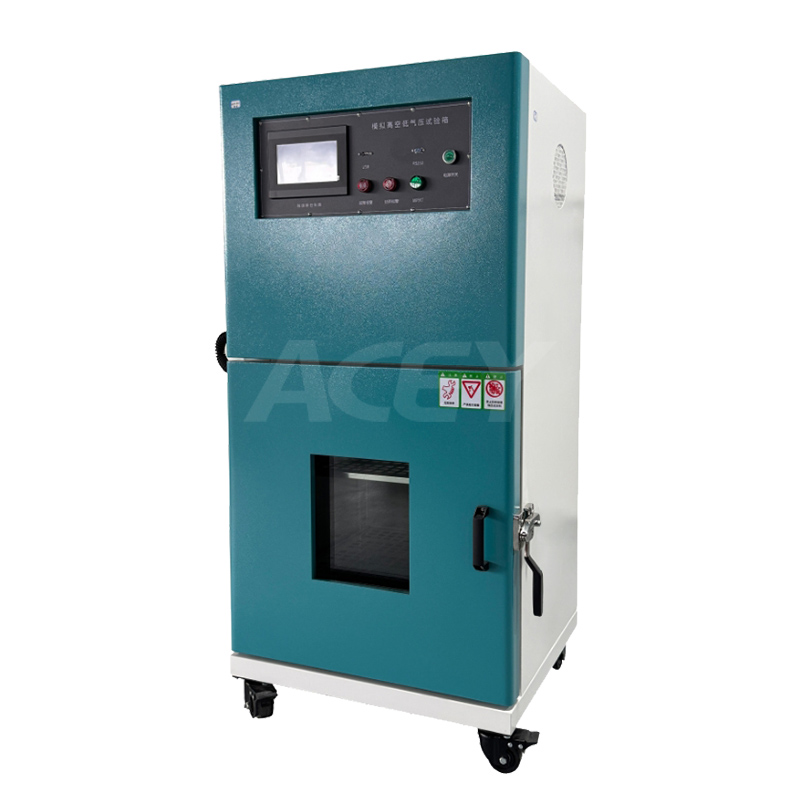

7-35 daysHigh Altitude Low Pressure Simulation Test Chamber For Lithium Battery
Description
The simulated high-altitude low-pressure test chamber is used for low-pressure (high-altitude) simulation tests of batteries. All tested samples are tested under a negative pressure of 11.6kPa (1.68psi). For high-altitude simulation tests, all tested samples are tested under low-pressure conditions.
In lithium battery testing, high-altitude low-pressure test chambers are used to meet the safety verification of transportation/use environments (especially aviation transportation environments), as well as to test the battery's sealing, structural stability, thermal runaway risk, etc. under low pressure.
Specification
Item
Specification
Product Name
High Altitude Low Pressure Simulation Test Chamber
Model
ACEY-6004C-500
ACEY-6004C-700/800/1000
Tested Battery
3C series, small pouch/cylindrical/prismatic battery modules
3C series, pouch, cylindrical, prismatic, battery modules
Control Method
PLC touch screen control
Inner Chamber Size
W500×D500×H500mm
Inner Chamber Temperature
Room temperature (non-adjustable)
(Standard requirement: 20°C ± 5°C can be achieved by adjusting the lab air conditioning)
Low Pressure Range
5.0KPa to 101.3KPa
Minimum Pressure
5.0KPa (0.5KPa optional)
Control Accuracy
±0.5kPa (≤5kPa), ±1kPa (5kPa~40kPa), ±2kPa (40kPa~80kPa)
Pressure Rise/Drop Rate
15KPa/min ± 3.0KPa
Pressure Leakage Rate
Approx. 0.8KPa per hour
Vacuum Sensing Method
Diffused silicon pressure sensor
Control Mode
Upper/lower vacuum limit, hold pressure time, end pressure, alarm parameters can be set
Vacuum Control Method
7-inch touch screen, fully automatic, start vacuum after placing product
Inner Chamber Material
Stainless steel 4.0mm, reinforced internally, vacuum shape stable
Stainless steel 5.0mm, reinforced internally, vacuum shape stable
Outer Chamber Material
Cold-rolled steel 1.2mm, powder coating
Observation Window & Lighting
19mm tempered glass, W250×H300mm, LED light inside for clear observation
Layering
Inner chamber divided into two layers, with two mesh plates
Insulation Layer
Hollow fill, sealing material, rock wool, good thermal insulation, high-temperature resistant door gasket
Casters
Movable casters with brakes, lockable position, can be pushed freely
Chamber Structure
Integrated, control panel and vacuum pump installed at bottom
Sealing
High-density silicone rubber sealing strip at chamber door
Pressure Protection
Auto stop vacuum when overpressure occurs, pressure protection at same time
Outer Dimensions / Weight
W800×D750×H1480mm, 250kg
Refer to selected model
Power Supply / Power
AC220V, 2KW
AC220V, 2KW/3KW
Optional
Terminal for line feed or power socket
Video monitoring system, ≥3MP
Pressure range 0.5KPa ~ 101.3KPa
