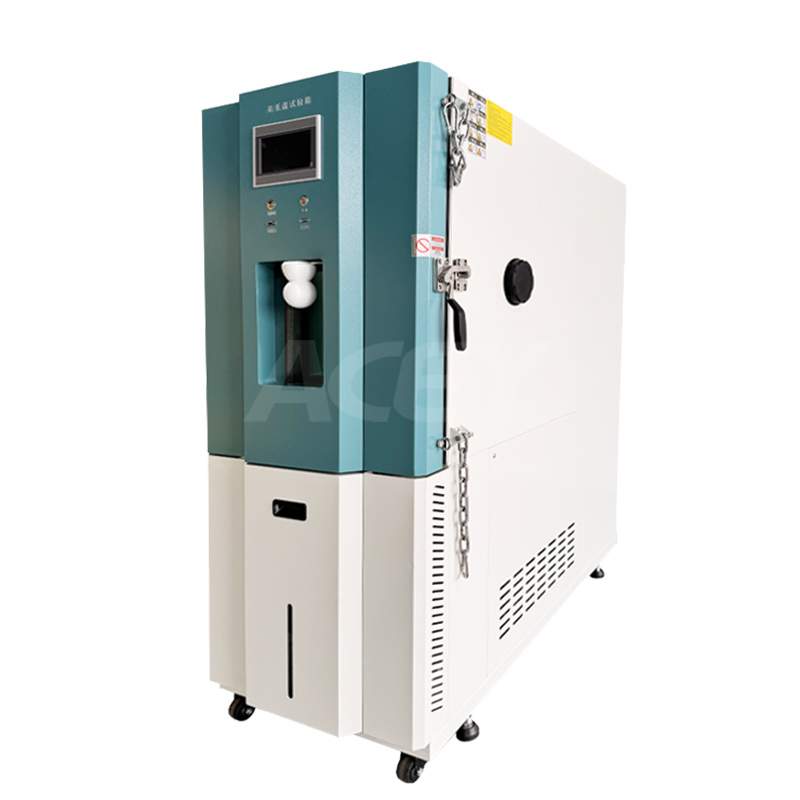

ACEY-9001WB-800L battery high and low temperature test chambers are primarily used to evaluate battery performance, safety, and reliability in different temperature environments. They simulate the effects of extreme temperature conditions on batteries and ensure their adaptability in practical applications. High and low temperature test chambers are available in a variety of sizes and can be customized upon request.
Brand:
ACEYItem No.:
ACEY-9001WB-800LCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days80L-1000L High And Low Temperature Test Chamber For Battery
Product Description
ACEY-9001WB-800L High and low temperature test chambers can accurately simulate complex natural environments, including low and high temperatures, high temperature and high humidity, and low temperature and low humidity, providing extreme testing conditions for batteries. Combined with charge and discharge testing equipment, they can monitor battery performance in various temperature environments.
This test chamber is also suitable for testing the heat, humidity, cold, and dryness resistance of defense and aerospace automation components, automotive parts, shipbuilding parts, electronic and electrical components, plastics, chemicals, food, paper, metals, chemistry, research institutes, inspection and quarantine bureaus, pharmaceuticals, and related products, as well as for R&D and quality management engineering testing. It is particularly suitable for high-temperature, low-temperature, and humidity cycle testing of products such as optical fibers, LCDs, components, inductors, PCBs, computers, and mobile phones.
Technical Parameter
| Parameter | Specification | ||||||
| Product Name | High and Low Temperature (Humidity) Test Chamber | ||||||
| Model | ACEY-9001WB-80L | ACEY-9001WB-150L | ACEY-9001WB-225L | ACEY-9001WB-408L | ACEY-9001WB-800L | ACEY-9001WB-1000L | |
| Volume | 80L | 150L | 225L | 408L | 800L | 1000L | |
| Interior Dimensions (W×D×H) mm | 400×400×500 | 500×500×600 | 600×500×750 | 800×600×850 | 1000×800×1000 | 1000×1000×1000 | |
| Exterior Dimensions (W×D×H) | Type 1 | 880×980×1450 | 980×1080×1550 | 1080×1080×1700 | 1280×1180×1800 | 1480×1380×1950 | 1480×1585×1950 |
| Type 2 | / | 850×1600×1670 | 900×1650×1850 | 1100×1730×1950 | 1280×1900×2080 | 1280×2080×2080 | |
| Power & Power Consumption | AC220V 5KW | AC220V 5.5KW | AC380V 7KW | AC380V 8.5KW | AC380V 11KW | AC380V 12KW | |
| Approx. Weight | 200kg | 250kg | 300kg | 420kg | 530kg | 600kg | |
| Temperature Range | Standard | -40℃ ~ +150℃ | |||||
| (Optional) | (Optional) Low Temp: -20℃ / -60℃ / -70℃ (Selectable) | ||||||
| Humidity Range | 20%RH ~ 98%RH (5% Low Humidity Type Customizable) | ||||||
| Heating Rate | Average 3℃/min (Empty) | ||||||
| Cooling Rate | Average 0.7~1℃/min (Empty) | ||||||
| Temperature Fluctuation | ±0.5℃ | ||||||
| Temperature Uniformity | ±2℃ | ||||||
| Humidity Deviation | +2/-3%RH (Humidity >75%RH), ±5%RH (Humidity ≤75%RH) (Constant Temp & Humidity Chamber) | ||||||
| Interior Material | SUS304 Stainless Steel, Thickness 1.0mm (Customizable Thickness) | ||||||
| Exterior Material | Cold-rolled painted steel plate, Thickness 1.2mm | ||||||
| Insulation Material | High-temperature resistant rigid polyurethane foam | ||||||
| Refrigeration System | Single-stage/Cascade (Selectable), Hermetic Compressor | ||||||
| Control System | Touch Screen Programmable Controller, with USB/RS485 interface for PC connection, dedicated test software for remote monitoring, etc. | ||||||
| Cooling Method | Air-cooled (Water-cooled optional) | ||||||
| Explosion-proof Safety | Automatic explosion-proof pressure relief device, Explosion-proof door lock chain | ||||||
| Safety Protections | Fuse switch, Compressor overload protection, Overheat/Overcurrent protection, Overtemperature protection, Fuse, Dry-burn protector, Water shortage alarm protection, Emergency stop protection, etc. | ||||||
| Notes | ① Exterior dimensions are for reference only. ② Customization according to specified requirements. | ||||||
| (Optional) | ① Three-color alarm light ② Fire extinguishing device ③ Insulated coating for interior material ④ Insulated shelf ⑤ Video monitoring system (Selectable configuration) | ||||||
