10℃-300℃ Electric Heating Constant Temperature Blast Drying Oven
Brand:
ACEYItem No.:
ACEY-LD-030Compliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setProduct Origin:
ChinaLead Time:
7days

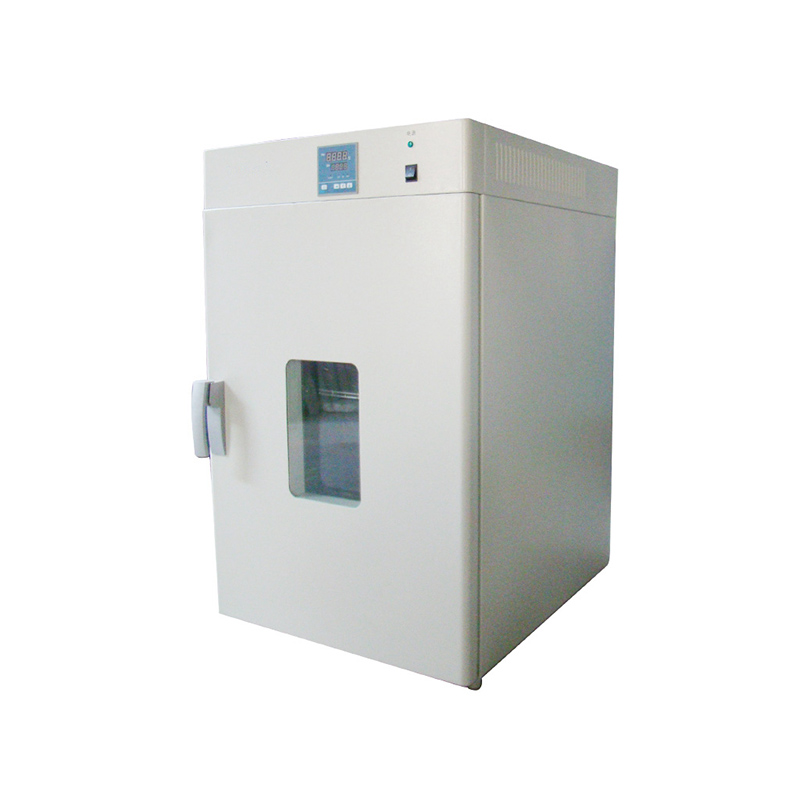

10C-300C 10L/70L/140L/240L Lab Vertical Electric Blast Drying Oven
Application
Mainly suitable for factories, schools, chemical, biological, pharmaceutical, food and scientific research units, for non-explosive flammable and non-volatile substances drying, baking, heat treatment, disinfection and insulation.
Features
1. Streamlined design, electrostatic plastic spraying on the surface of cold-rolled steel plate on the shell, stainless steel inner container, and easy cleaning without dead angle design.
2. Air duct circulation structure, which can force convection to simulate air circulation and make the inner container temperature uniform and stable.
3. Using microcomputer PID control, the system has automatic temperature control, timing, over-temperature alarm, LCD digital display, stable temperature control performance.
4. The box door is equipped with a large viewing angle observation window as standard, and heat insulation technology is adopted to make the temperature of the observation window within a reasonable range.
5. The studio adopts flexible shelves, and the shelves and quantity can be adjusted at will.
6. Using heat preservation technology and heat preservation materials, the temperature in the box is not easy to lose, reduce energy consumption and save energy.
7. According to user requirements, an independent temperature limit controller can be installed to double protect the safety of the system. (Optional)
Technical parameters:
RT+10~300℃
0.1 ℃
Temperature fluctuation
± 0.5 ℃
Timing range
340X320X320
400X350X500
450X550X550
500X600X750
485X500X615
545X535X790
595X735X845
650X785X1060
Name
Drying Oven
Model
LD-030
LD-070
LD-140
LD-240
Volume
30L
70L
140L
240L
Temperature control range
Temperature resolution
Number of partitions
2PCS
1~9999min
Power Supply
AC220V/50Hz
Rated power
1.0KW
1.5KW
2.0KW
2.5KW
Size of liner
Overall dimensions
Options (optional):
SS- stainless steel (304, 316L)
SC-Independent Temperature Limit Controller
FE-fuji liquid crystal controller
LP-LED LCD Intelligent Program Controller (Section 18 and Section 30)
TH-reserved Ø25, 50, 80, 100mm test holes
PR-Paperless Recorder
TP-Printer (Heat Sensitive, Panel)
RC-Remote Communication with Computer (LP Option Required for R485 Interface)
HC-load-bearing partition (load-bearing 50kg, standard load-bearing 15kg)
For other specifications, sizes and functions, please contact our salesperson.
