XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
Brand:
ACEYItem No.:
ACEY-WGDW-100L-5V50mA-80CHCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1Payment:
T/TProduct Origin:
ChinaLead Time:

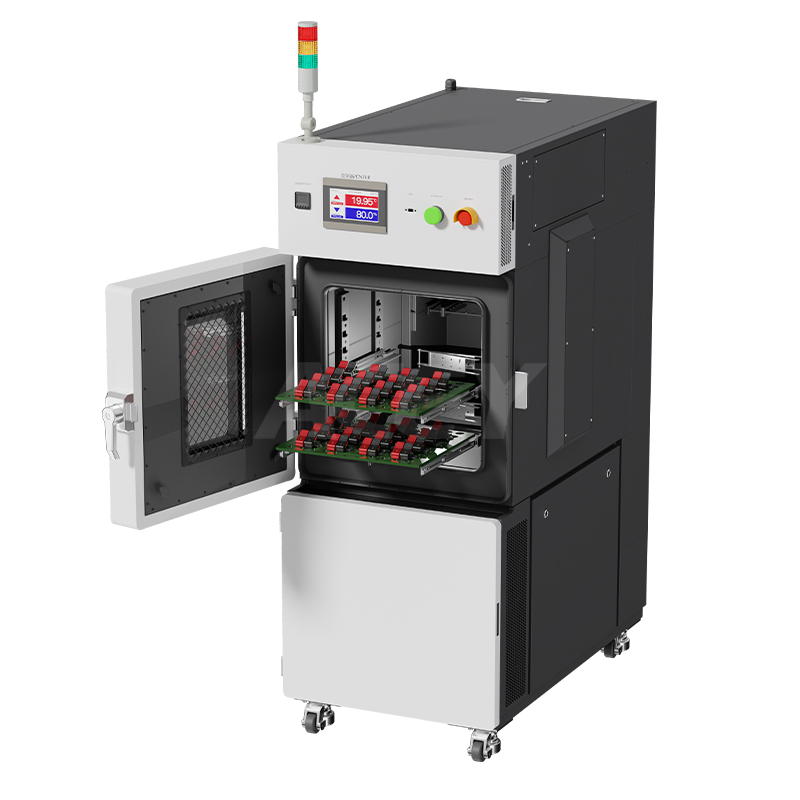

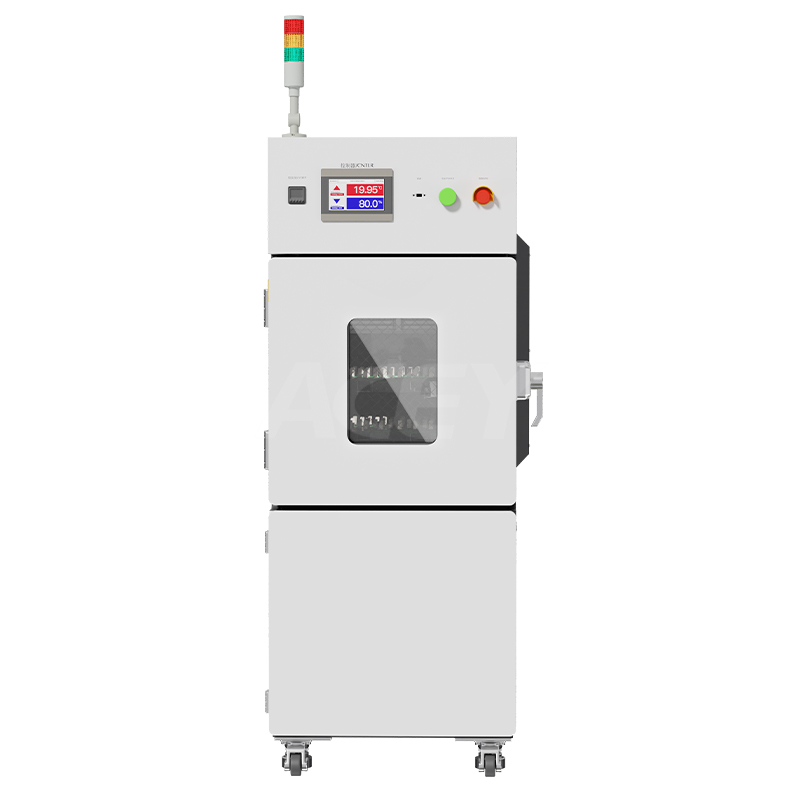

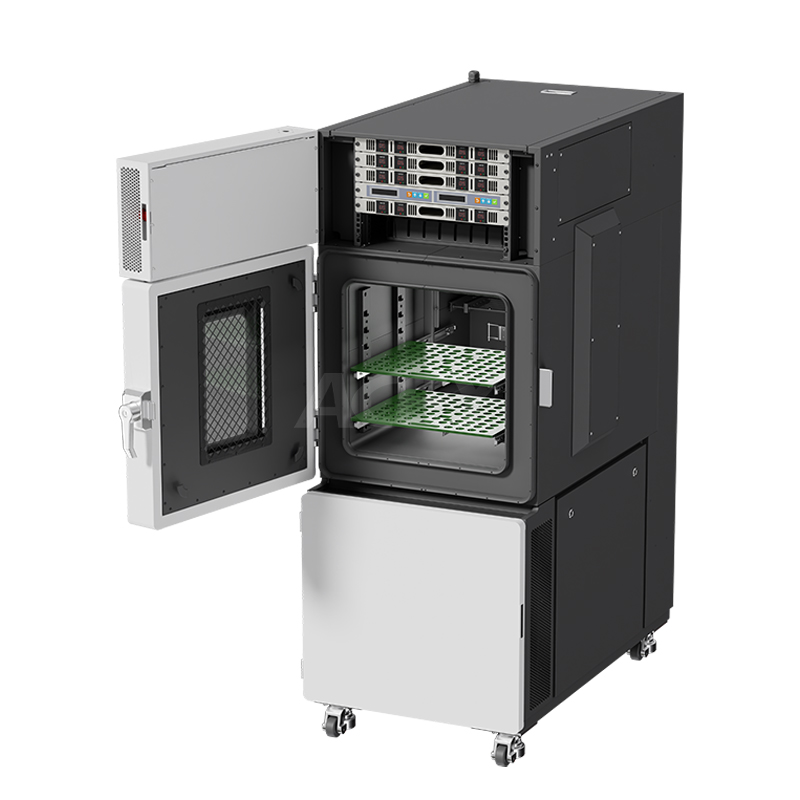

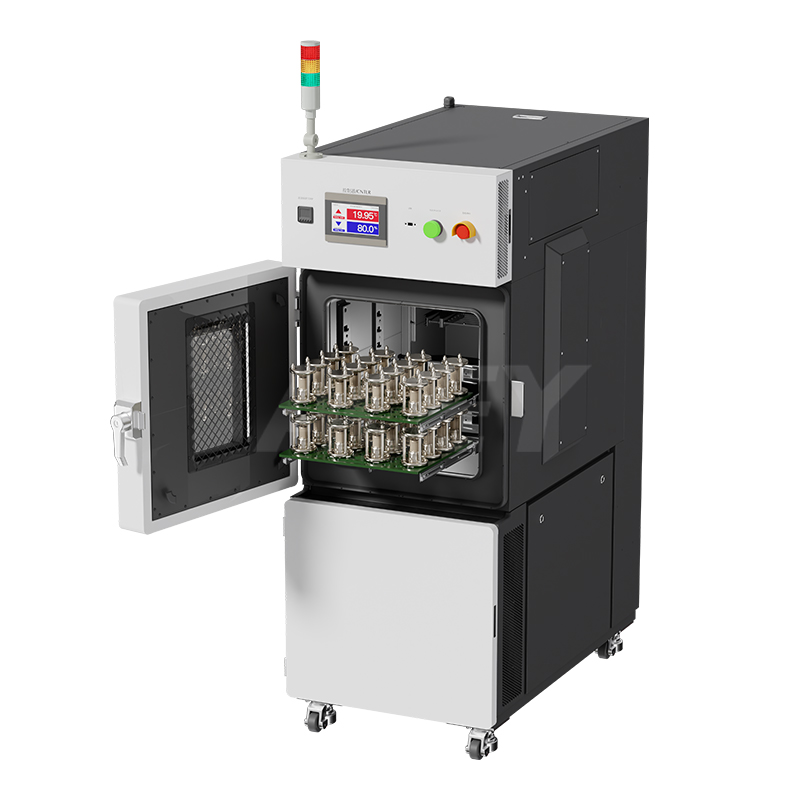

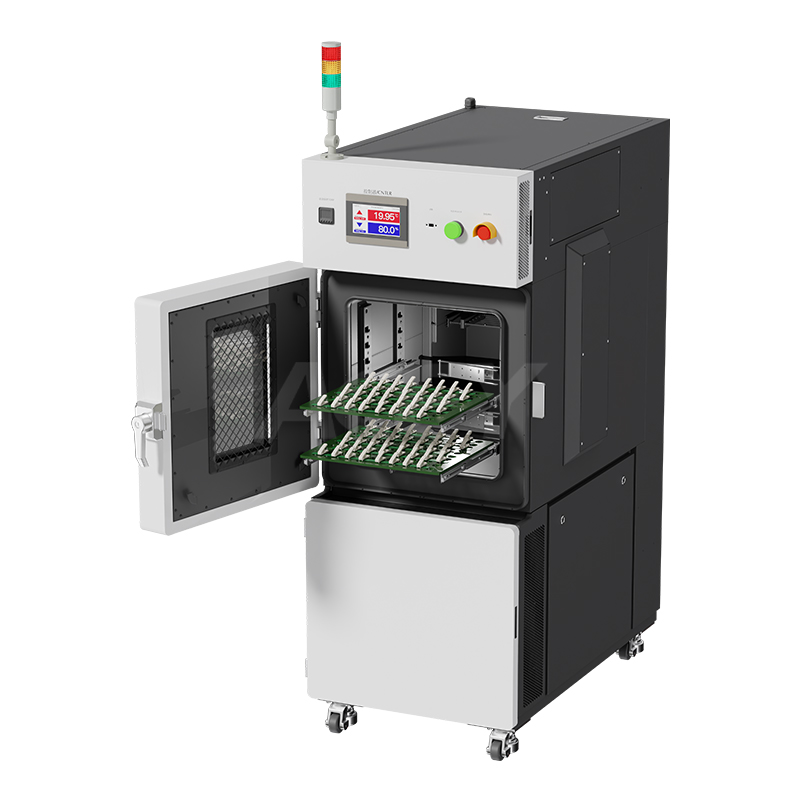

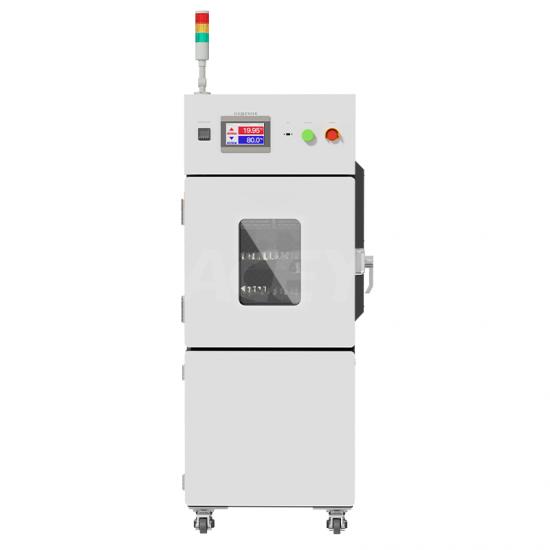

7-35 days100L High Low Temperature Test Chamber with Integrated Coin Cell Battery Tester
Product Description
ACEY-WGDW-100L-5V50mA-80CH perfectly integrates a high-precision battery charge-discharge tester with an environmentally controlled high-low temperature chamber. Specifically designed for R&D institutions, universities, and battery manufacturing labs, it aims to test the cycle life, capacity, and safety of coin cells and small pouch cells under extreme temperature conditions (range customizable, e.g., -70°C to 150°C). Controlled by a unified BTS software system for synchronized data and temperature monitoring.
Beyond battery applications, this versatile equipment serves as a premium reliability testing solution for industries such as Electronics, Electrical Engineering, Appliances, and Plastics. It is ideal for testing the cold, heat, moisture, and dryness resistance of raw materials and components, ensuring rigorous quality control (QC) and product durability.
Technical Specifications
| Parameter | Specification |
| Environmental Chamber Performance | |
| Temperature Range | -70℃ to +150℃ |
| Temperature Fluctuation | ≤ ±0.5℃ (at stable temperature) |
| Temperature Deviation | ±2.0 ℃ |
| Cooling Speed | From +20℃ to -70℃ within 75 minutes (no load) |
| Heating Speed | From +20℃ to +150℃ within 60 minutes (no load) |
| Inner Dimensions | W500 × D500 × H500 mm |
| Outer Dimensions | W750 × D1220 × H1800 mm |
| Integrated Battery Tester | |
| Channels | 80 independent channels for coin cell testing |
| Voltage Range | Charge: 10mV to 5V; Discharge: -5V to 5V |
| Current Precision | ±0.02% FS (Full Scale) |
| Data Record Frequency | 10Hz (Min interval: 100 ms) |
| Current Response Time | < 1 ms (10% FS to 90% FS) |
Premium Structural Features
Safety & Protection
Application Scenarios
Product Display
