XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
Brand:
ACEYItem No.:
ACEY-HRCDS-25Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1Payment:
T/TProduct Origin:
ChinaLead Time:

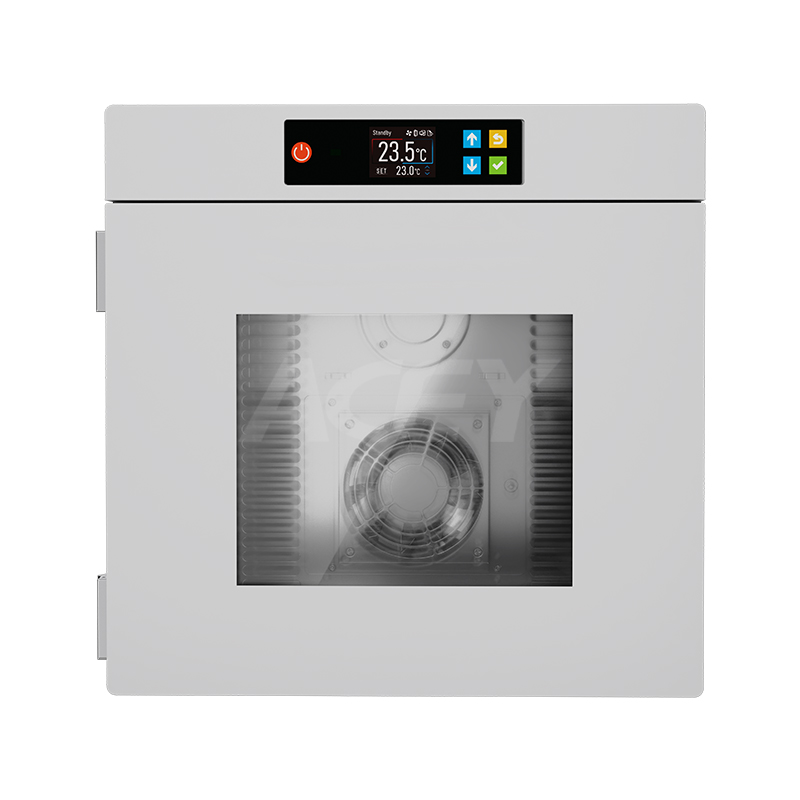

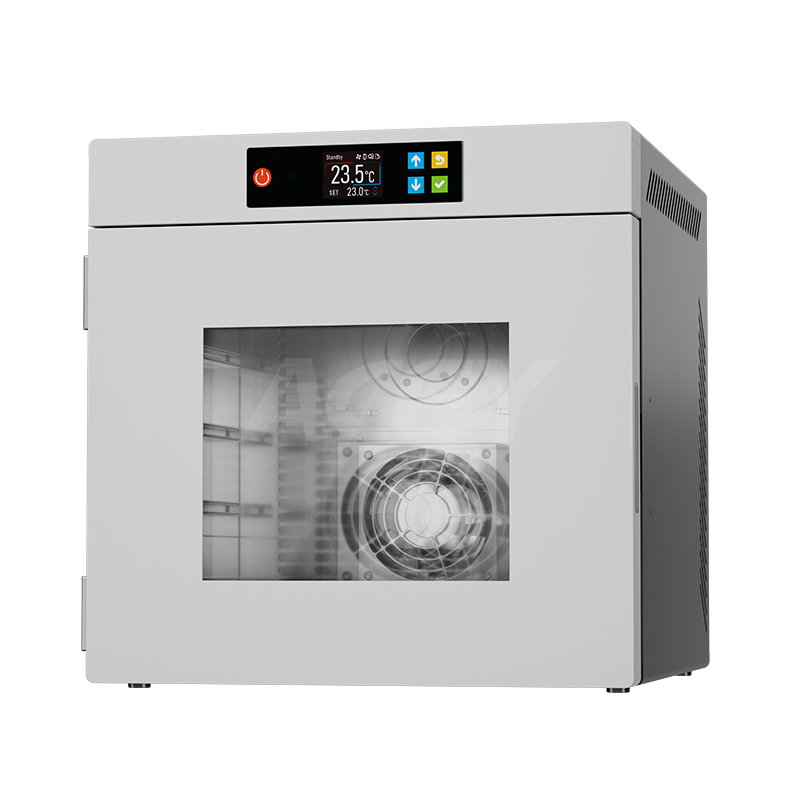

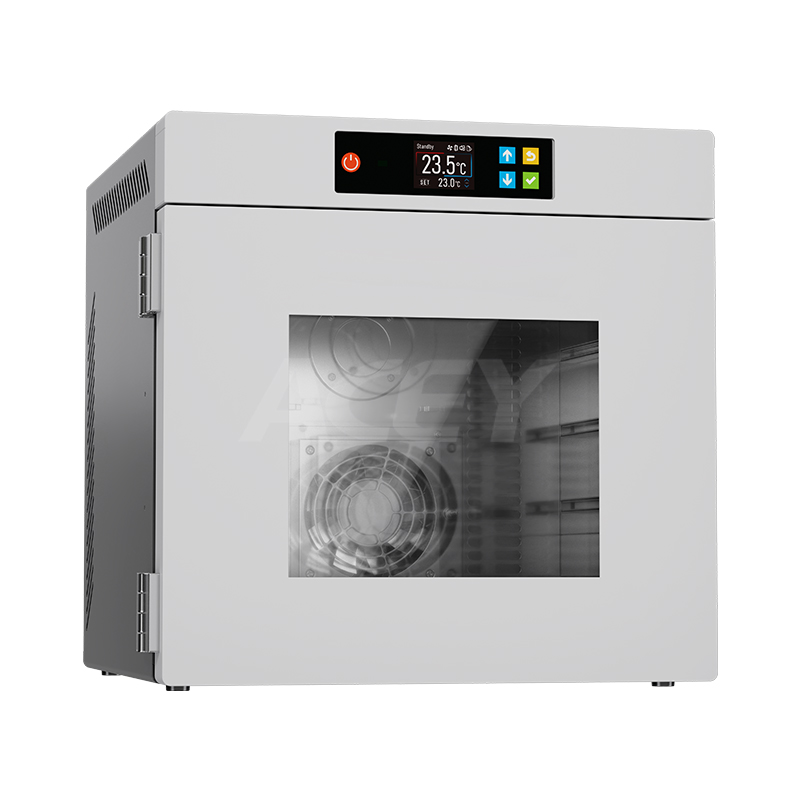

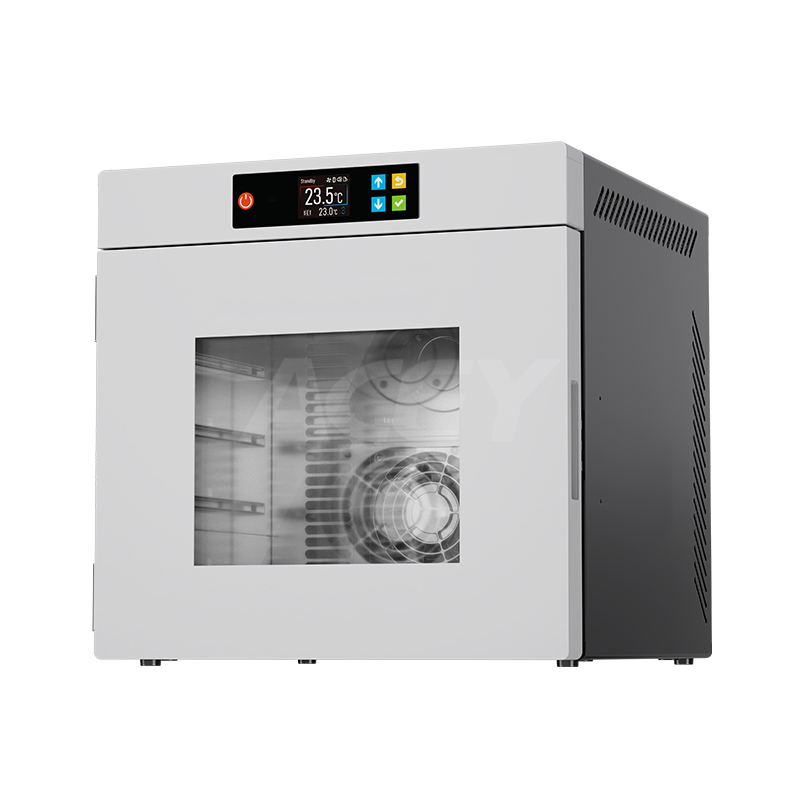

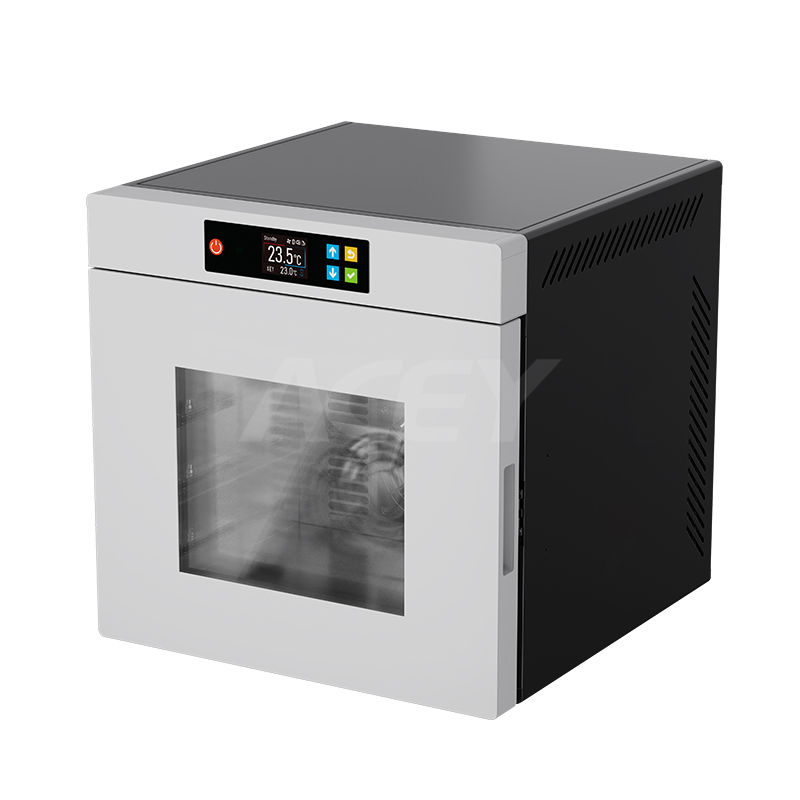

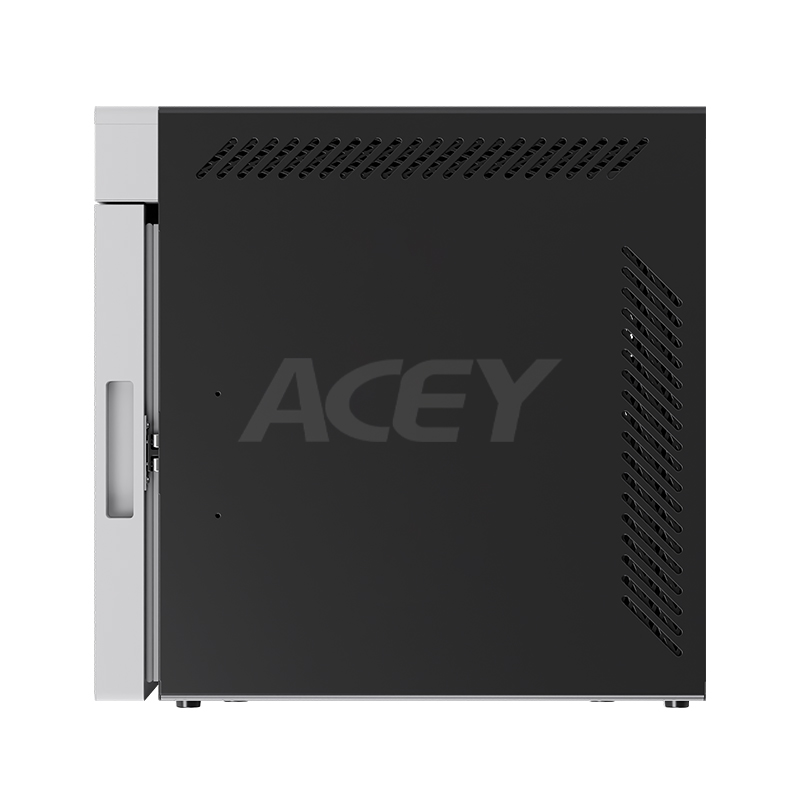

7-35 days25L Benchtop Constant Temperature Test Chamber For Coin Cell Battery Testing
Product Description
ACEY-HRCDS-25 constant temperature chamber is mainly used for constant temperature testing of coin cells and 3C polymer batteries. Controlled by the BTS host computer system, it can be connected to battery testing system to maximize battery performance. It is primarily targeted at research institutions, universities, and battery manufacturing companies' experimental centers.
Product Features
Product Specification
Description
Product Specification
AC Input
AC(220±10%)V /50Hz or AC(110±10%)V /60Hz
Single Phase+protective earth ground
Power
0.2KW
Input Current
1A(220VAC)/2A (110VAC)
Volume, Size
StandardVolume
25L
Inner Size
W360 mm×D250 mm×H290 mm
ExternalSize
W440 mm×D450 mm×H440 mm
Weight
About40kg
Performance
Operating environment
OperatingTemperature is +25℃、Relative humidity≤85%、Under no samples situation
Temperature Range
15~60℃
Temperature fluctuation
≤±0.5℃（no load、temperature stability）
Temperature deviation
±2.0℃（no load、temperature stability）
Rise time
25℃→60℃≤50 min(No load)
Cooling time
25℃→15℃≤60 min (No load)
Structure features
Thermal insulation
maintenance structure
Extern materials:High quality cold rolled steel plate,Surface spray and baking paint treatment
Inner materials:Stainless steel plateSUS304
Chamber insulation materials:PU Foaming
Control panel
Control panel touch control button
Cooling/ Heating method
Semiconductor, DC FAN
Configuration
Door: Insulating Stalinite
LED Light
Cell holder board
Electrical System
Controller: LED HMI
Setting Mode: TouchScreen
ControlType: Forced Circulation Ventilation
Communicate Type: Ethernet
