A very important process in the production of battery electrode is roll press. The precision of roll press machine is very important for the compaction density and safety of battery electrode.

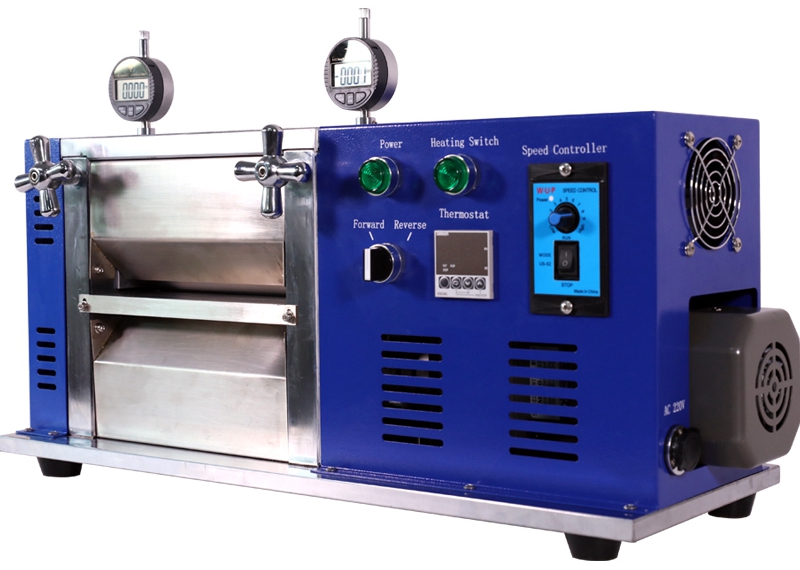

1.Experimental heating roll press: It is considering the battery electrode under the proper temperature, lively base material physical properties and ductility increases, so that we can enhance the cohesive force between the and current collector and active materials, at the same time reduce the deformation resistance of the battery electrode, thus make better compression plate mass density, made the battery have higher quality and durability. This type of roll press machine adopts the industry leading heating system, PID temperature control system, heating quickly, temperature control precision is uniform, temperature can be reached automatically constant temperature. Heat roll press machine is widely used in the rolling of lithium ion cylindrical battery, pouch cell and polymer battery, coin cell, super capacitor, nickel metal hydride battery and other battery electrodes research and development, and is suitable for use in universities and scientific research institutions.

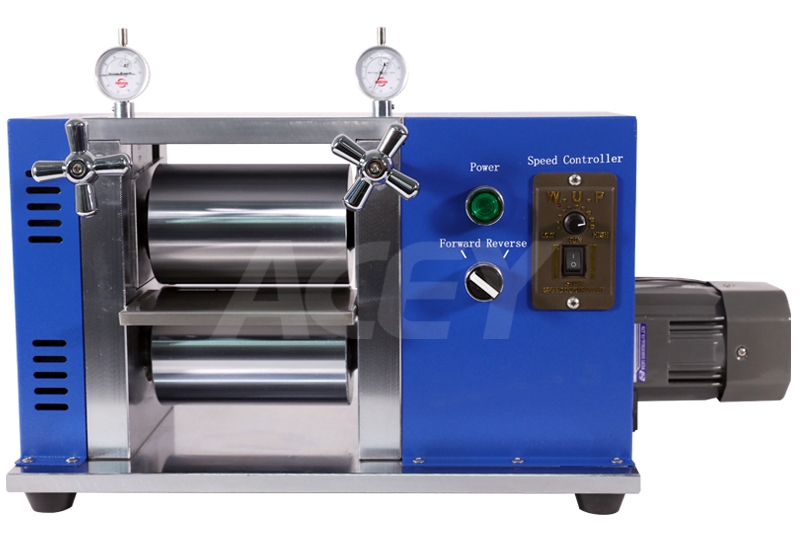

2.Electric vertical roller machine

The electric rolling press machine is specially designed for experimental research and development of lithium battery, such as cylindrical cell, pouch cell, coin cell. The rolling thickness is adjustable, motor driven, and the operation is simple and convenient. The equipment is used in the rolling of metal lithium electrode pieces in the lithium-sulfur battery industry and the high-corrosion industry, with high rolling precision, and is an ideal choice for lithium batttery laboratory research and development and sample production.

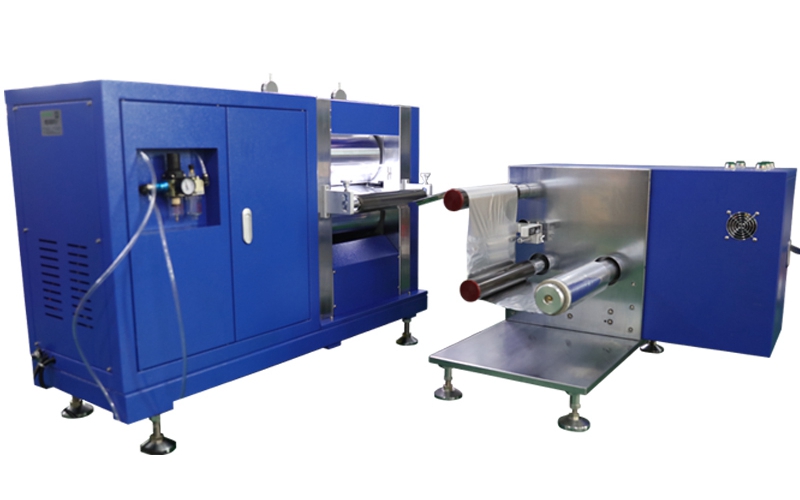

3.Hydraulic roller press machine

The hydraulic balance electric pair roll machine is aimed at high-precision rolling of positive and negative plates in the battery industry. The equipment has good horizontal and vertical rolling uniformity, and the appearance of the rolled product is high-quality. Hydraulic rolling press machine is provided by the hydraulic system to provide pressure for roll rolling. It is suitable for Where there is a higher requirement for the consistency of rolling force and rolling gap.

Xiamen Acey provide 300mm width hydraulic roll press machine, rewinding and unwinding machine is available.

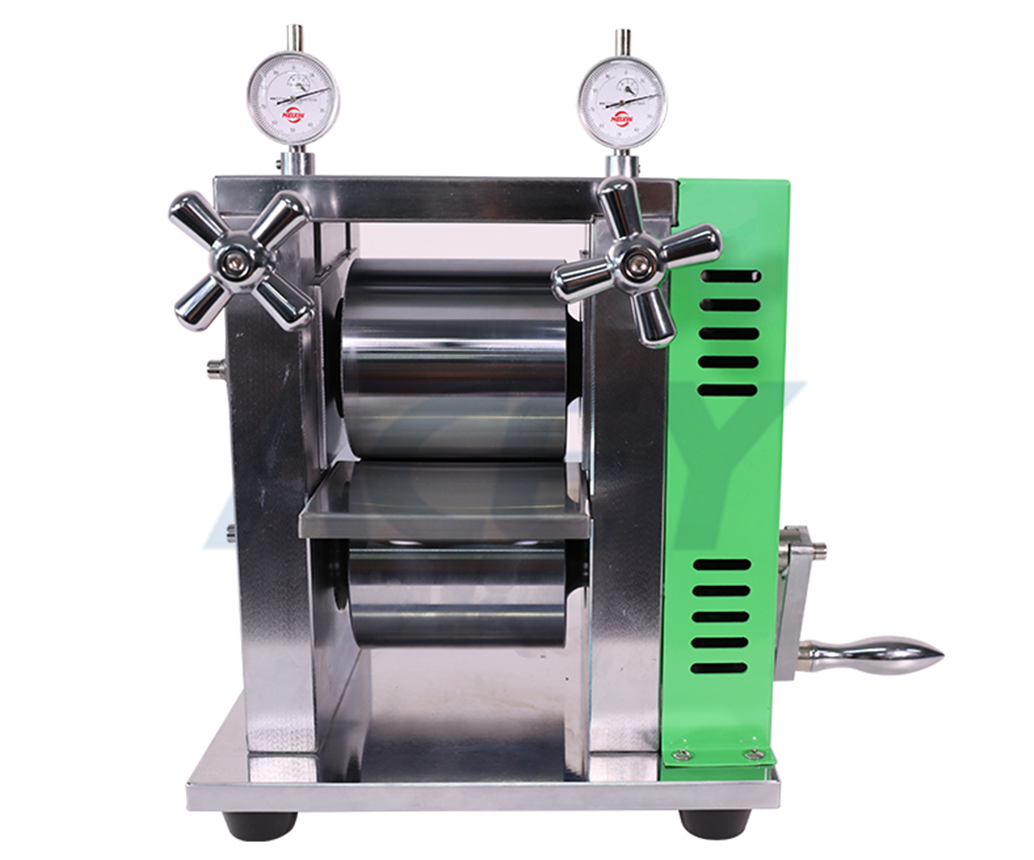

4.Manual Vertical Roll press machine

It is mainly suitable for manual rolling of battery materials in the laboratory. It is especially suitable for thinning and increasing the density of lithium battery electrode of clean energy materials . This machine adopts gear transmission to realize the roll pressing, the rolling thickness can be adjusted, and it is easy to use.

Xiamen Acey provides High precise Roll press machine for lithium battery R&D. The main specifications are dia 100*200mm, 150*200mm, 150*300mm, 150*500mm, 200*200mm, 200*300mm and so on, Customization is available.
