Prismatic/Pouch Battery Pack Assembly Line

/Semi-automatic Prismatic Battery Pack Assembly Line

Lithium Ion Battery Pack Assembly Line
Semi-automatic Prismatic Battery Pack Assembly Line Semi-automatic Prismatic Battery Pack Assembly Line Semi-automatic Prismatic Battery Pack Assembly Line Semi-automatic Prismatic Battery Pack Assembly Line Semi-automatic Prismatic Battery Pack Assembly Line Semi-automatic Prismatic Battery Pack Assembly Line Semi-automatic Prismatic Battery Pack Assembly Line

Semi-automatic Prismatic Battery Pack Assembly Line

This semi-automatic assembly line is used for assembling prismatic battery packs used in applications such as energy storage systems (household, commercial, industrial, and utility-scale), electric vehicles (cars, buses, trucks, and special-purpose vehicles), backup power solutions for data centers, telecom, and medical equipment, as well as industrial and marine applications such as forklifts, AGVs, ships, and heavy machinery.

  • Brand:

    ACEY

  • Item No.:

    ACEY-SA-P

  • Compliance:

    CE Certified

  • Warranty:

    One-year warranty with lifetime support

  • Order(Moq):

    1 set

  • Payment:

    T/T

  • Product Origin:

    China

  • Lead Time:

    7-35 days
INQUIRE now
Product Catalog
  • Product Detail

Semi-automatic Prismatic Lithium Ion Battery Pack Assembly Line


Product Description

The assembly line is specifically designed for prismatic lithium battery pack assembly, providing a complete solution from cell capacity grading to finished battery pack aging testing. This line ensures high precision, safety, and efficiency for applications such as energy storage and electric vehicles.  The equipment includes Cell Capacity Grading Machine, Battery Voltage & IR Sorting Machine, Battery Stacking and Pressing Machine, Laser Cleaning Machine, Laser Welding Machine, BMS Tester, Battery Comprehensive Tester, and Battery Aging Machine.

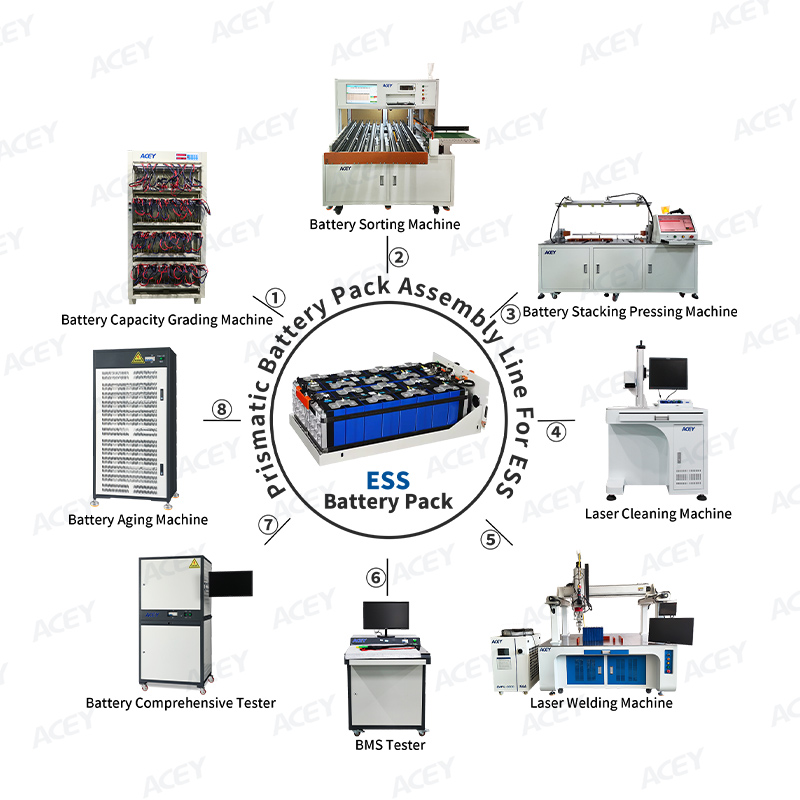

Assembly Process

Cell capacity grading → Cell voltage & IR sorting → Module stacking & pressing → Terminal laser cleaning → Module laser welding → BMS testing → Battery pack comprehensive testing → Battery pack aging testing



Advantages

  • Modular & Flexible Design
Standardized modular design allows flexible layout adjustment for various cell sizes, ideal for customized pack production.
  • Multi-Model Compatibility
Compatible with prismatic cells of varying thickness and support multiple processes of aluminum shell/steel shell and welding/bolting.
  • Cost Efficiency
40-50% lower capital investment vs full-automation


Product List

Prismatic Battery Pack Assembly Equipment
Product Name Description
Battery Capacity Grading Machine 5V 30A/60A/100A/200A/300A/400A/etc optional
Energy-feedback
Battery Sorting Machine Voltage & IR Sorting
8/10/Customized Channels Optional
Battery Stacking Pressing Machine 50 groups/hour (10PCS battery cells)
Laser Cleaning Machine 30W, 50W, 100W Optional
Laser Welding Machine 1000W, 1500W, 2000W, 3000W, 4000W, 6000W Optional
BMS Tester 1-52 series Optional
50A~500A
Battery Pack Comprehensive Tester Voltage: 10V~300V, Current: 60A~600A
Battery Aging Machine Voltage: 8~30V, Current: 0~400A.
High Voltage Series: 500V~1500V, Current: 100A~1000A


Product Display

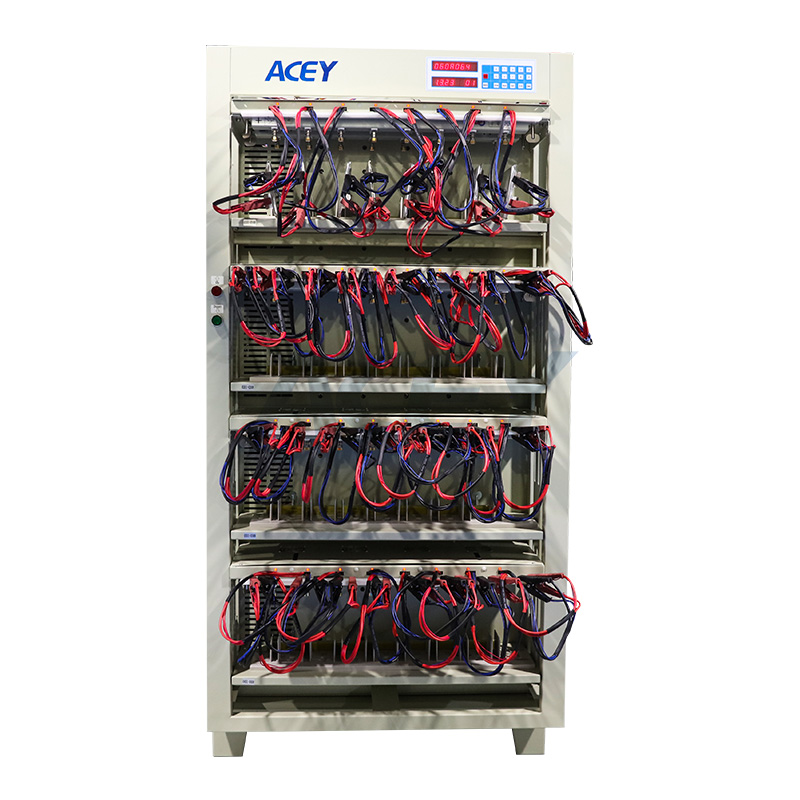

1. Prismatic Battery Charge Discharge Tester

5V 60A battery capacity grading machine


2. Battery Sorting Machine

Battery sorting machine

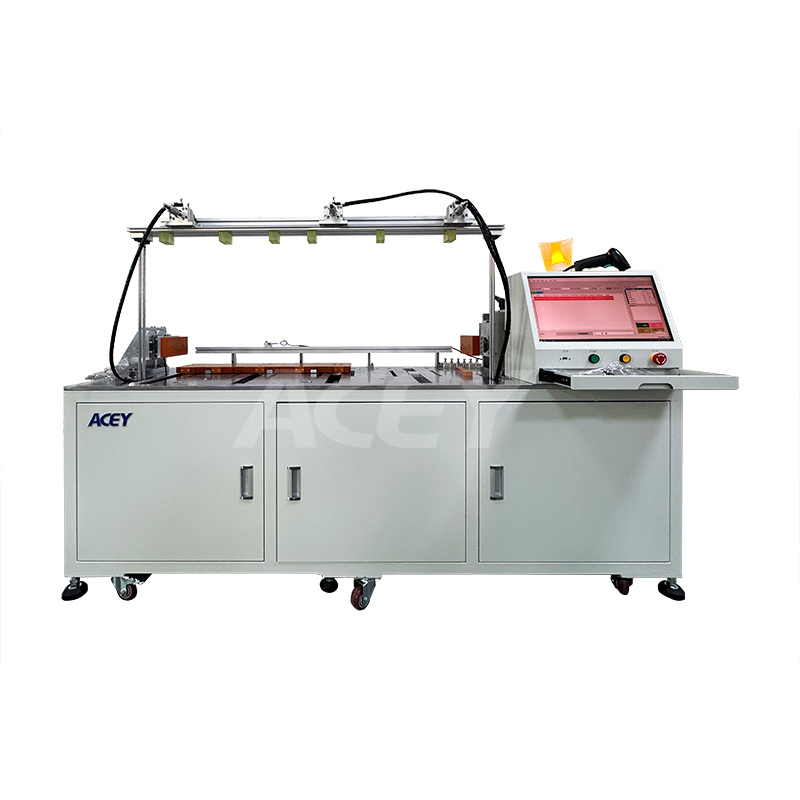

3. Battery Stacking Pressing Machine

Battery Stacking Pressing Machine

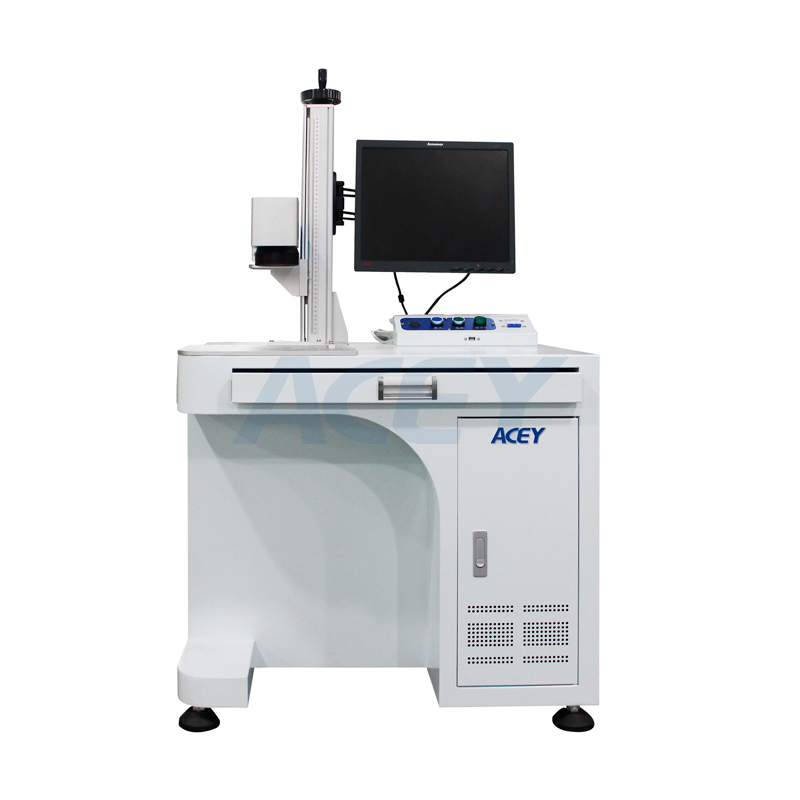

4. Laser Cleaning Machine

Laser Cleaning Machine

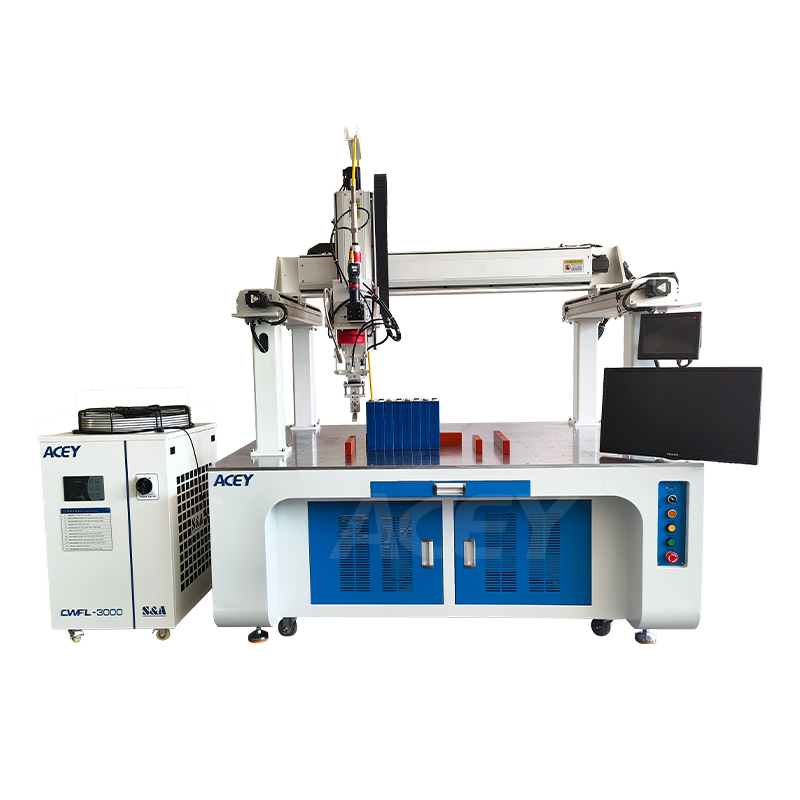

5. Laser Welding Machine

laser welding Machine

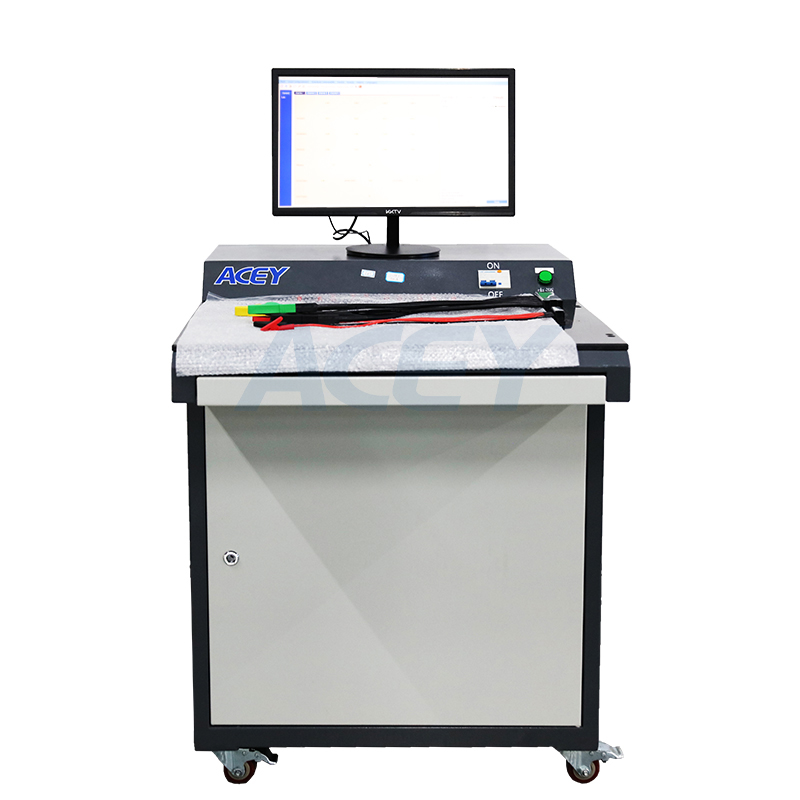

6. BMS tester

BMS tester

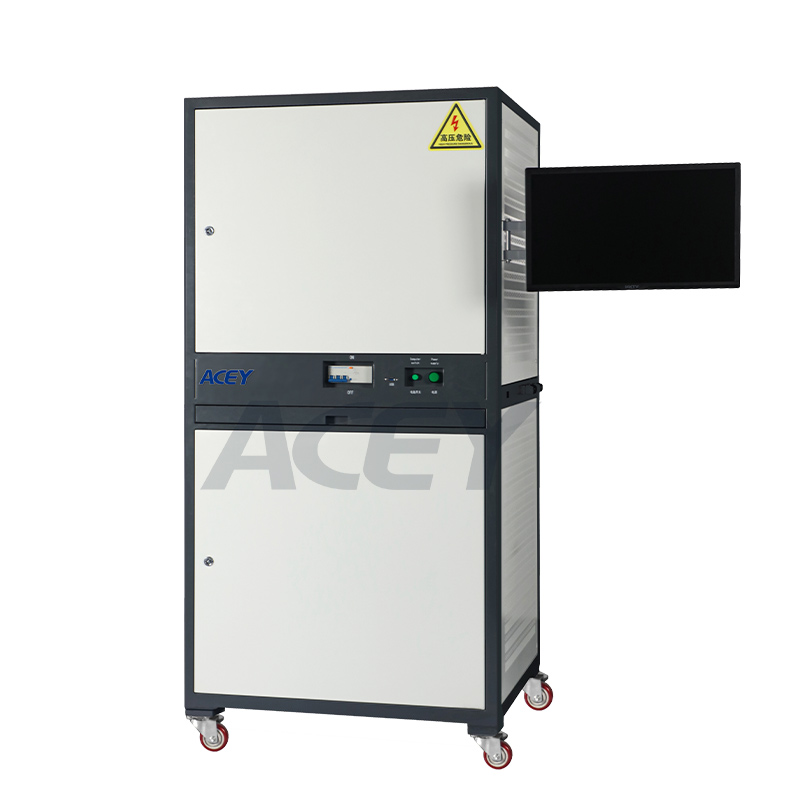

7. Battery integrated tester

Battery comprehensive tester

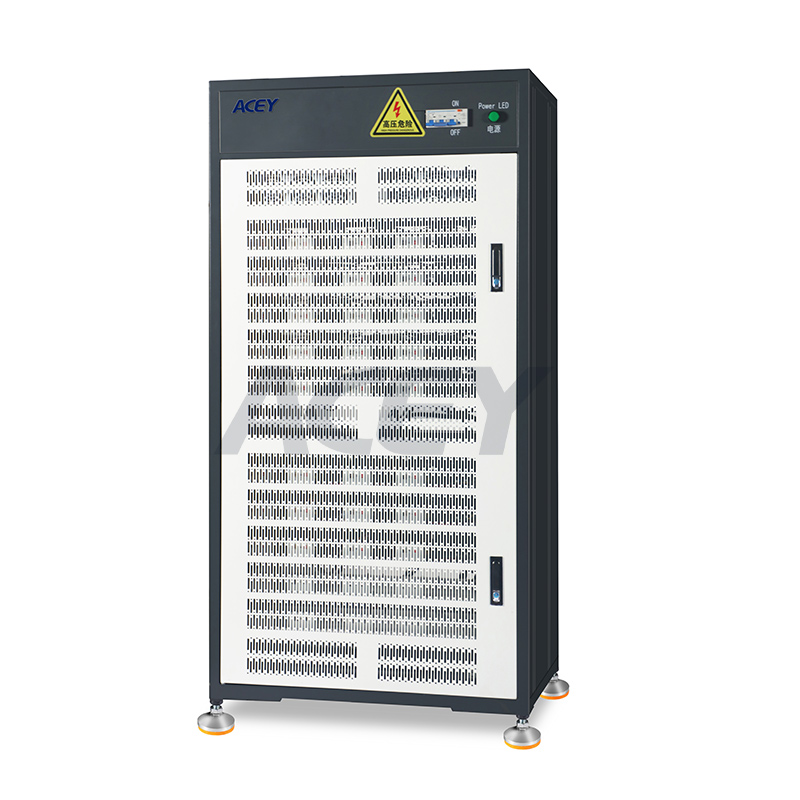

8. Battery pack aging machine

Battery pack aging machine
