Lithium battery sorting machine is a sorting equipment for testing the internal resistance and voltage of cylindrical batteries. This equipment can accurately sort the batteries to the corresponding gear according to the set internal resistance and voltage value. Sorting of good and bad products in different gears. There are some matters needing attention in the operation of the lithium battery sorting machine and also need to be clear. In order to facilitate everyone's understanding of the operation and operation of the cylindrical lithium battery sorting machine, the editor has collected and sorted out some precautions for everyone to compare and understand.

1. When starting up, first check whether the actuators of the equipment are in the initial position, confirm that there is no other sundries on the equipment, and then turn on the air source, confirm that the air source pressure is 0.5～0.6Mpa, and then turn on the power to run the control program. :

2. Turn off the power and air source when the equipment is out of service after get off work:

3. Turn off the power and air source when repairing, maintaining and maintaining the equipment:

4. When loading the batteries to be sorted into the loading box, try to ensure that the positive and negative directions of all batteries are the same: When the batteries in the receiving box are about to be full, remove the batteries in time:

5. When the machine is running, don't put your hands in the battery sorting track to avoid pinching your fingers:

6. When the equipment is running abnormally or stopped for no reason, press the emergency stop button first, and then check the abnormal condition of the equipment. After troubleshooting, release the emergency stop button to make the manipulator return to the origin and the system is in a pause state. Press the start green button to make the system resume automatic operation, If the system can't run, you can press the system reset button to restore normal working status.

7. When the sorting of a certain type of battery is complete and there is no material alarm, you can press and hold the green button for 3 seconds to empty the material, or wait for 30 seconds, the system will automatically enter the finishing mode and automatically sort the remaining materials to the trough. After sorting, the equipment will be out of condition, please load it.

8. Before each operation of the equipment, the battery on the sorting manipulator should be emptied, press the system reset button to make the equipment enter the initial state, and then press the run button:

9. It is necessary to ensure that the positive and negative electrodes of the batteries to be sorted are clean, and at the same time, avoid dust and other debris from polluting the detection probe to ensure the accuracy of the measurement data:

10. In order to ensure the measurement accuracy, it is recommended to clean the probe with alcohol every 4 hours under normal production conditions and replace the probe every month:

11.To ensure the high-precision measurement of the tester, please reset and calibrate the tester regularly.

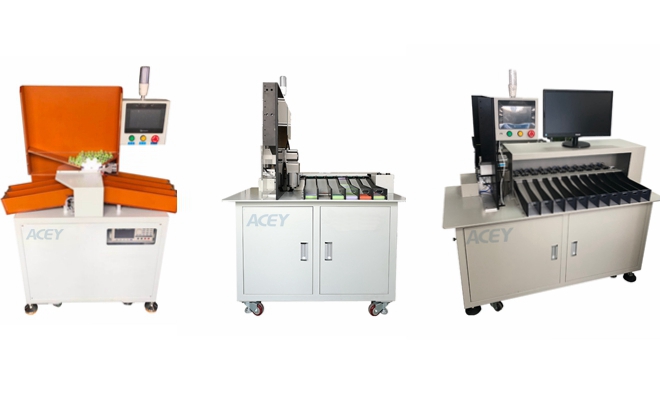

Xiamen ACEY New Energy provides 5-channel sorting machine，11-channel sorting machine.
