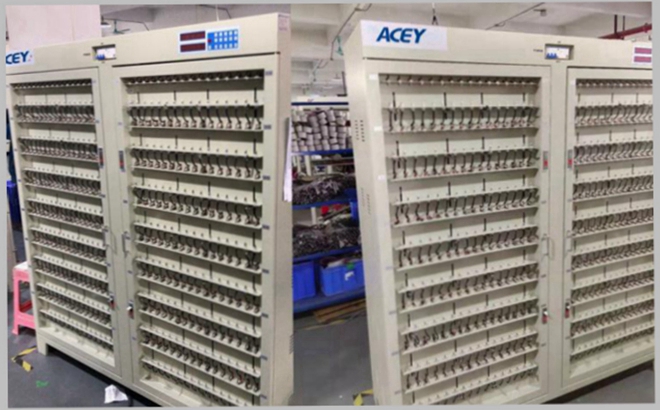

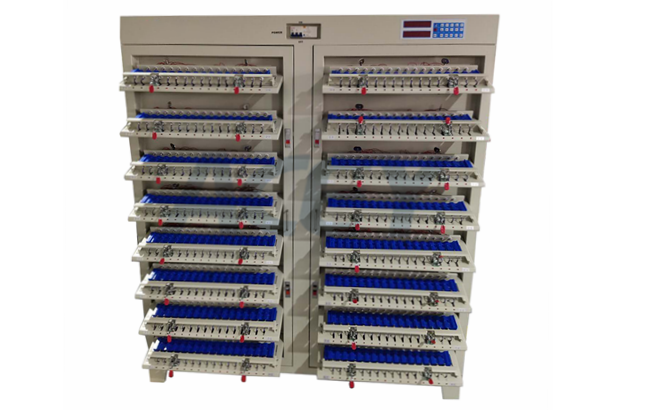

This 512 channels 5V 3A Battery cell tester is ready to delivery after testing.

ACEY provides with you high quality product and 1st class service.

Our battery forming machine has the following features:

(1)Each channel can perform battery performance test on a set of finished batteries, and a single test channel adopts a modular combination, and each module can carry out a separate current limit, making it more convenient for users to expand channels and maintain equipment. Each channel is completely independent, does not interfere with each other, and does not affect each other. Even if some of the channels do not work properly for some reason, it will not affect the normal operation of other channels.

(2)Battery fixture: Each battery fixture is designed using the internationally popular four-wire principle, which avoids the superposition of the internal resistance of the tester on the internal resistance of the battery and makes the test results more accurate. The fixture has beautiful appearance, strong corrosion resistance, convenient adjustment and reliable contact. Best for cylindrical cell.

(3)Test data and status power failure protection: The battery cell tester has a power failure protection function. This function is selected through the host computer software. When the power supply suddenly stops, the recorded data can be saved by the built-in dry battery. When the power supply is restored , Can also restore the state when the power is off, continue to run.

(4) Comprehensive and flexible software and hardware security protection: software protection: when the battery under test has low voltage, low current, over voltage and over current, the control system will close this channel and separate the battery from the device. Clamp safety protection: all battery clamps and accessories are made of flame-retardant materials.

(5) Cooling method: air cooling.
