Advantages of Lithium Battery CCD Tester in Massive Pack Production

"Lithium battery" is a kind of battery with lithium metal or lithium alloy as positive / negative material and non-aqueous electrolyte solution. With the development of microelectronic technology in the 20th century, miniaturized equipment is increasing, which puts forward high requirements for new energy power supply. Lithium battery has entered a large-scale practical stage, with the rise of its massive production.

In large-scale production, efficiency and accuracy are very important. In this case, a series of related machine are required to improve the efficiency.

What is the machine vision?

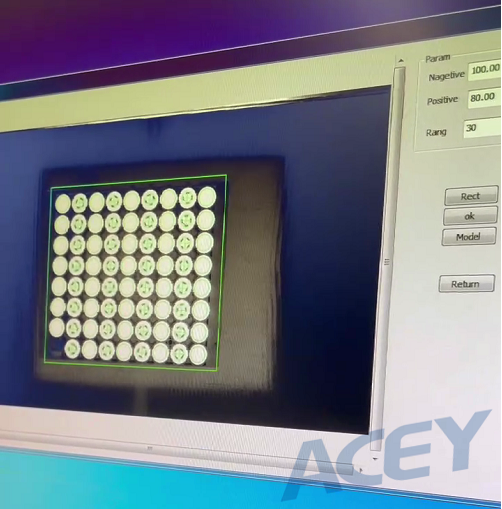

Introduction to machine vision: machine vision is to use machines instead of human eyes to measure and judge. The captured target is converted into image signal through industrial camera (CCD camera is widely used), which is transmitted to the special image processing system and converted into digital signal according to pixel distribution, brightness, color and other information; The image system performs various operations on these signals to extract the characteristics of the target, and then controls the equipment action on the scene according to the discrimination results.

What are the advantages of lithium battery CCD tester?

1. High accuracy: up to 100%, which can accurately identify battery module’s series parallel, pole piece damage, battery positive and negative error and other phenomena;

2. Objective repeatability: excluding the influence of subjective will, emotion, visual fatigue and other factors of battery test results, the reliability is high.

3. High detection accuracy: micron detection accuracy;

4. Fast speed: 60 ~ 80m / min.

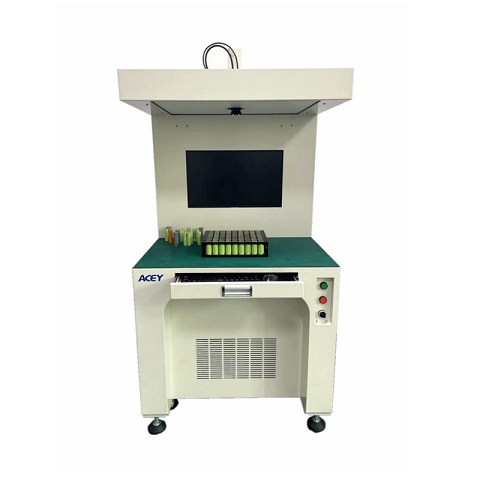

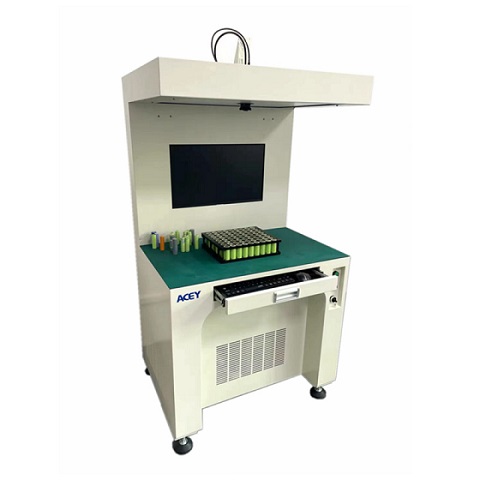

Acey new energy provides intellegent battery CCD tester, which can do high-accurate detection in battery pack production.
