ACEY 60V 300A Battery Charge Discharge Aging Test System

ACEY 60V 300A Battery Charge Discharge Aging Test System

Product Description

ACEY-BA60300-6 battery charge and discharge tester is designed for battery pack capacity testing, cycle life testing, charge/discharge performance testing and aging verification.

The system provides 6 fully independent test channels, with a voltage range up to 60V and charge/discharge current up to 300A per channel. It is suitable for lithium-ion, LiFePO4, lead-acid, NiMH and NiCd battery packs, including both common-port and separate charge/discharge port configurations.

Product Features

• 6 independent channels with separate programmable test conditions
• 0–60V voltage range
• ±300A charge/discharge current
• Voltage and current accuracy: ±(0.05%FS + 0.05%RD)
• 18kW continuous power per channel
• Supports CC charging, CC-CV charging, constant-current discharge, rest and cycle testing
• Up to 9999 test cycles
• Soft-start current output for smoother charge/discharge startup
• Automatic test recovery after power or communication interruption
• Real-time data monitoring and Excel export
• Optional BMS communication: CAN, RS485, SMBus, I²C, HDQ and SPI
• MES data upload and remote monitoring supported

Battery Testing Functions

ACEY-BA60300-6 battery aging test system supports multiple battery testing procedures, including:

• Battery pack capacity testing
• Cycle life testing
• Charge and discharge characteristic testing
• Battery aging testing
• Temperature characteristic testing
• Production inspection and battery module testing

High-Current Testing with Smooth CC-CV Control

During charging and discharging, the system uses soft-start current control to reduce sudden current impact on the battery pack and connectors.

For CC-CV charging, the transition from constant current to constant voltage is performed smoothly without significant current spikes. The same soft-start control is applied during discharge startup.

Data Monitoring & BMS Communication

The test software records voltage, current, capacity, energy, power, temperature and cycle information during the test.

Test data can be displayed as curves and exported to Excel for further analysis.

Optional communication interfaces include:
CAN / RS485 / SMBus / I²C / HDQ / SPI

The system can also read BMS parameters such as individual cell voltage, temperature, current and capacity.

Technical Specifications

Applications
ACEY-BA60300-6 battery charge discharge aging system is suitable for:

• Lithium battery pack production
• LiFePO4 battery packs
• Power tool battery packs
• Electric scooter battery packs
• Vacuum cleaner battery packs
• Battery module testing
• Battery cycle life and aging laboratories

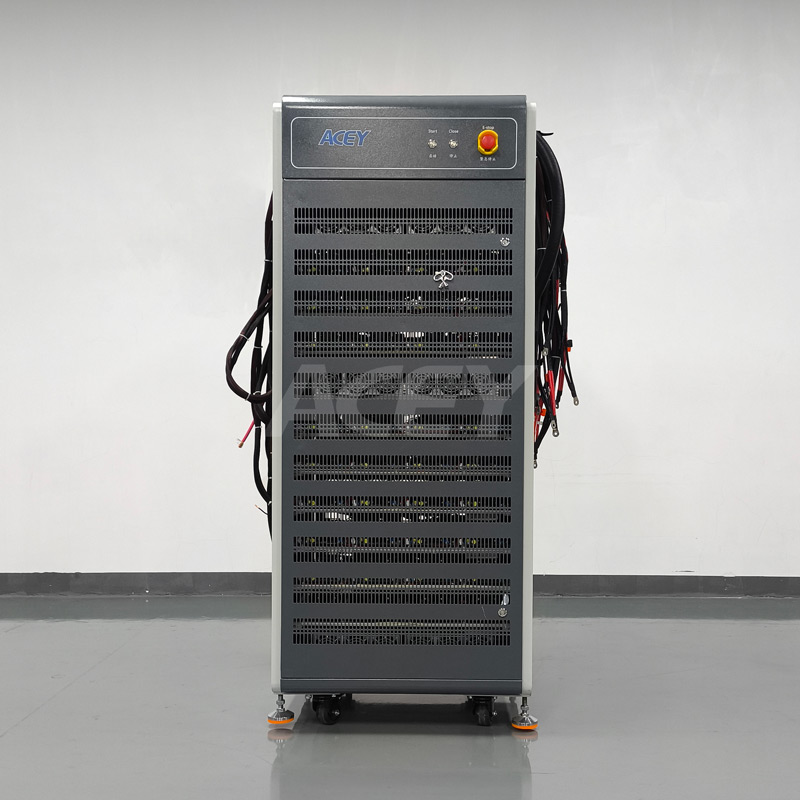

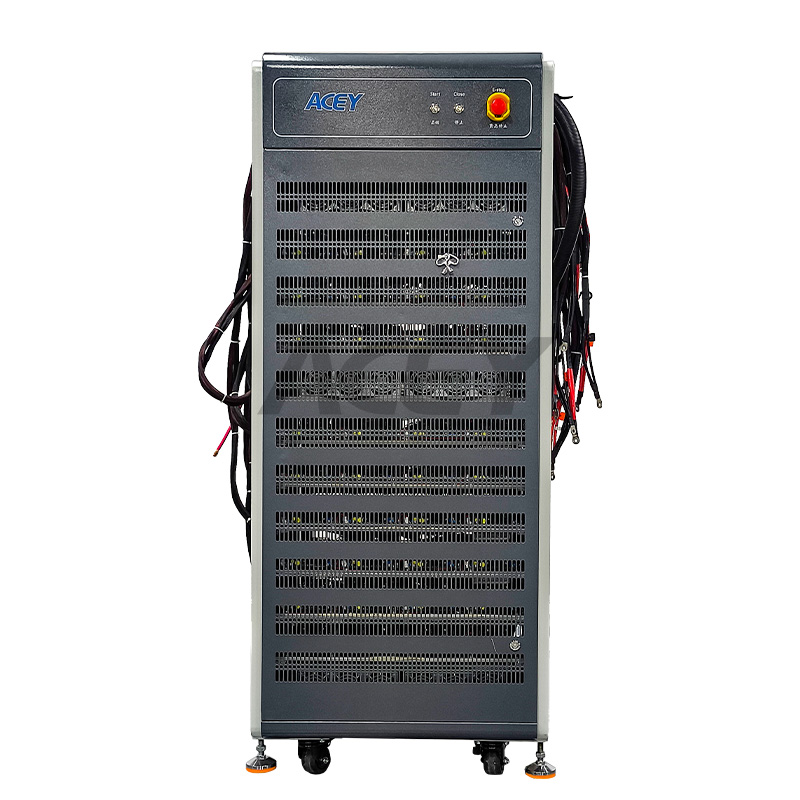

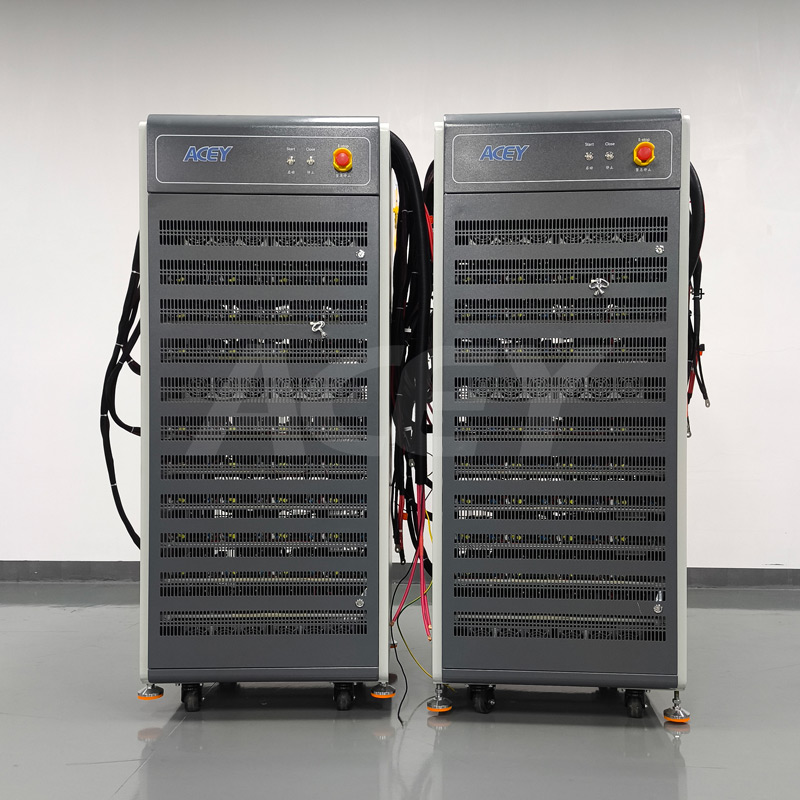

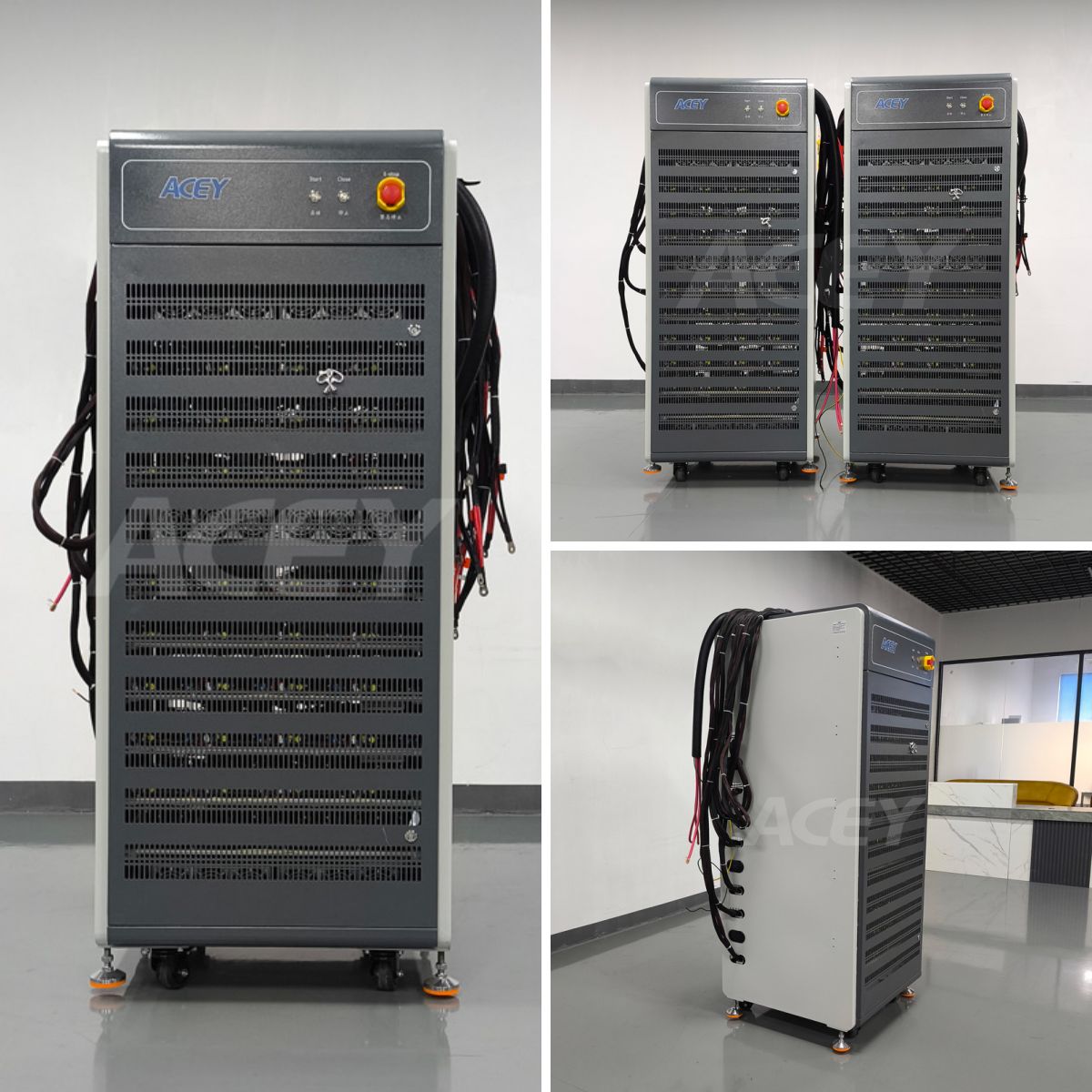

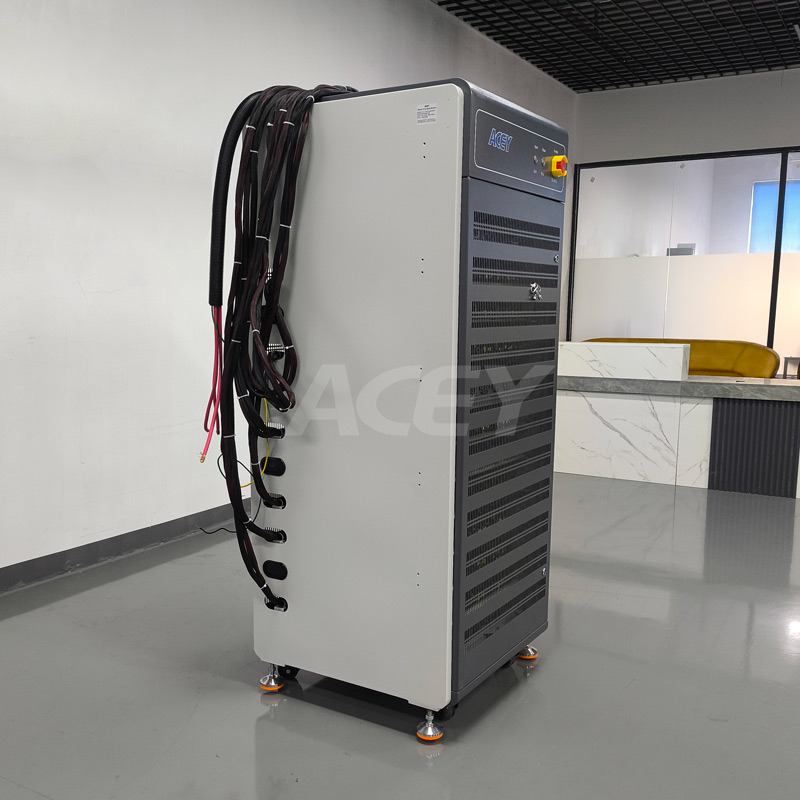

Product Display

FAQ
*What batteries can this charge discharge tester test?
ACEY-BA60300-6 battery pack aging machine is suitable for ternary lithium, LiFePO4, lead-acid, NiMH and NiCd battery packs. It supports both common-port and separate charge/discharge port battery configurations.

*What is the maximum charge and discharge current?
Each channel supports charge and discharge current up to 300A, with a minimum output current of 300mA.

*Can different test programs run on different channels?

Yes. Each channel is independently programmable and can use different current, voltage and test-step settings.
