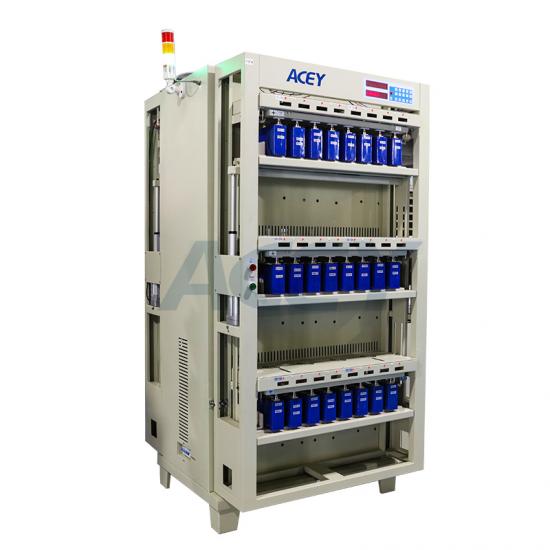

5V 100A 48CHS Regenerative Lithium Ion Battery Cell Formation Equipment

ACEY-BCT5100-48P lithium ion battery formation equipment is used to test the capacity, voltage and other parameters of power lithium battery, and to grade them according to performance indicators to ensure the consistency of the battery pack.

  • Brand:

    ACEY

  • Item No.:

    ACEY-BCT5100-48P

  • Compliance:

    CE Certified

  • Warranty:

    One-year warranty with lifetime support

  • Order(Moq):

    1 Set

  • Payment:

    T/T

  • Product Origin:

    China

  • Lead Time:

    7-35 days
INQUIRE now
Product Catalog
  • Product Detail

5V 100A 48CHS Regenerative Lithium Ion Battery Cell Formation Equipment


System Features

1. Single point independence, each battery has a completely independent constant current and constant voltage source, stable and impact-free. Adopt 2-channel programmable constant current and constant voltage control module.
2. The equipment is controlled by STM32 single-chip microcomputer and connected to the computer. It can save all test data and curves. It can also be operated directly through the keyboard of the equipment to set the process to complete the test and sort.
3. Real-time detection and display of the status of each battery. If there is an abnormality, the channel will stop working and the indicator light will be on.
4. It has power-off protection function. After the call comes, it can continue to run the original workflow.
5. The power tube adopts field effect tube, which is suitable for batteries with lower voltage discharge, such as lithium iron phosphate batteries.
6. The graphical operation interface is adopted, which is intuitive and clear. It displays the voltage, current, time\capacity and other data of each battery at the same time, and can set different colors to display the corresponding working status and abnormal conditions.
7. The software is powerful and the human-machine interface is friendly.
8. Four-wire test interface to ensure high measurement accuracy.
9. Modular design concept, easy to maintain.

Equipment Workflow

  • The equipment is connected and controlled by a computer to send instructions and collect data, etc;
  • The keyboard can manually operate the equipment and display parameters and status;
  • The constant current board is controlled by the CPU and has constant current and constant voltage functions;
  • When the battery is charging, the bidirectional power supply converts the AC power into 14V DC power, and the battery charging control and detection are realized through the constant current board;
  • When the battery is discharging, the process is opposite to charging. The battery voltage is first increased to 15V through the constant current board, and then the DC power is converted into AC power through the bidirectional power supply and directly fed into the factory's AC distribution network, thereby realizing the energy feedback of the battery discharge power.

Compatible Battery

Length  65-300mm
Thickness  15-75mm
Height  70-320mm
Tab spacing  50-250mm

Specification

Equipment structure

Number of Device Channels

The whole machine has 48 channels

Exterior dimension

Width 1009mm × Length 800mm × Height 1843mm

Chassis Color

Standard gray black (customizable))

Fixture form

Power battery flat head clamp

Clamp spacing

84mm

Channel Control Mode

Each battery has a completely independent constant current constant voltage source, stable and no impact. Realizable start

move, stop, pause, continue and protect

Each channel has an independent constant voltage, constant current hardware control circuit

Each channel charging current, discharge current accuracy can be automatically calibrated by software

Working power supply

Three-phase 5 wire system AC380V ± 10%,50HZ

power factor

≥ 0.99

AC current distortion rate

≤ 2%

Power Department Efficiency Index

Charging ≥ 80%, discharging ≥ 75%

Working power consumption

≤ 29KW

equipment failure rate

<1%

Working environment

Temperature -10~40, relative humidity 80%

Heat dissipation mode

Natural air intake, upward exhaust

smoke alarm

Optional

Power component protection function

1. Grid voltage overrun protection

2. Power grid frequency overrun protection

Channel Parameters

Voltage measurement range

DC 0~5V

Battery voltage range

Charge DC 0~4.5V; Discharge DC 4.5~1.5V

Constant voltage range

DC  2~4.5V

Voltage accuracy

±(0.5 reading ‰ +0.5 ‰ full)

Voltage control resolution

0.1mV

Voltage sampling resolution

0.1mV

voltage stability

≤(± 1mV)

Current range

Charging DC 200mA ~ 100A; Discharging DC 200mA ~ 100A

Current accuracy

±(0.5 reading ‰ +0.5 ‰ full)

Current control resolution

1mA

Current Sampling Resolution

0.1mA

Current stability

≤(± 1mA)

Current rise time (90% load)

≤ 50MS

Channel startup time (90% load)

≤ 50MS

Software function

Control mode

Computer-controlled equipment work, full cabinet control, with scanning system

Communication mode

485 serial port communication (baud rate 57600 )/ TCP communication

Process Settings

Up to 32 steps and 256 cycles can be set

Charging mode

Constant current, constant voltage, constant current and constant voltage

Charging end conditions

Voltage, current, time, capacity,-△V

Discharge mode

Constant current, constant power, constant resistance

Product Details
