Brand:
ACEYItem No.:
ACEY-CAL-32140Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days32140 33140 Cylindrical Lithium ion Battery Pack Assembly Line
Product Description
The assembly line is designed for large cylindrical cells (32140 & 33140), offering high efficiency, precision, and scalability. It supports the entire pack manufacturing process, from cell capacity grading and welding to module assembly and final aging testing.
The equipment includes Cell Grading Machine, Insulation Paper Sticking Machine, Battery Voltage & IR Sorting Machine, CCD Tester, Manual/Automatic Spot Welding Machine, BMS Tester, Battery Comprehensive Tester, Heat Shrink Wrap Machine，Inkjet Batch Code Printing Machine and Battery Aging Machine, etc.
Assembly Process

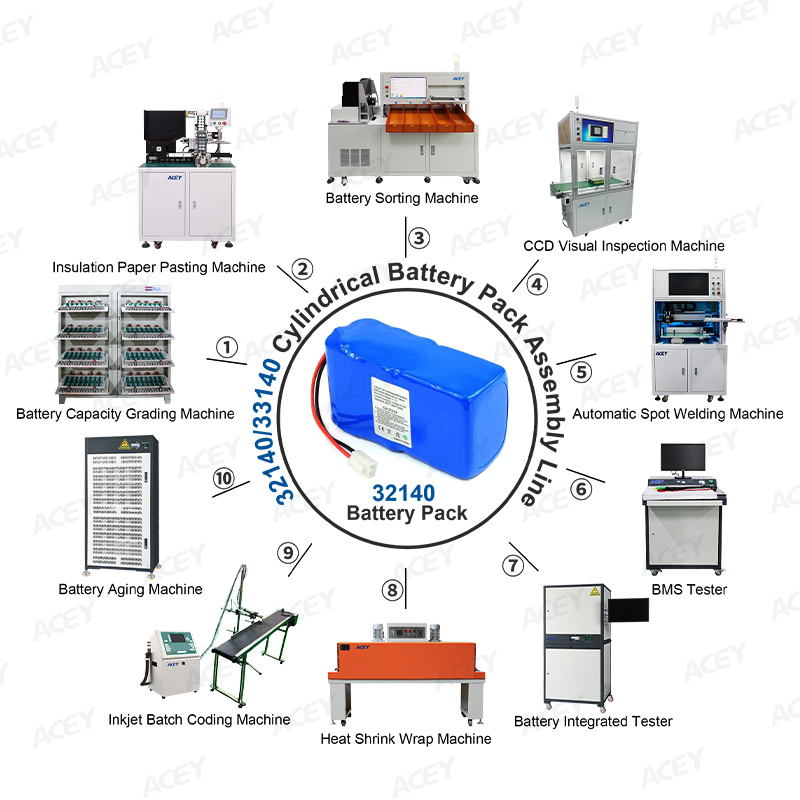

Cell capacity grading → Insulation paper pasting → Cell voltage & IR sorting → CCD testing → Battery pack spot welding → BMS testing → Battery pack comprehensive testing → Shrink film packaging → Inkjet code printing → Battery pack aging testing
Advantages
Product List
32140 & 33140 Cylindrical Battery Pack Assembly Equipment
Product Name
Description
Battery Capacity Grading Machine
5V 10A/20A optional
Energy-feedback/Liner optional
Insulation Paper Sticking Machine
Sticker Matrials: Barley paper or PVC
Replaceable Mould for 32140 33140
Battery Sorting Machine
5/10 Channels Optional
Barcode Scanner Optional
Suitable for 32140 33140
CCD Visual Inspection Machine
Cylindrical battery positive and negative detection
Conveyor Belt Optional
Manual Spot Welding Machine
Pneumatic AC Spot Welding Machine
(Single Welding Point or Double Welding Point)
AC Pedal Manual Spot Welding Machine
Automatic Spot Welding Machine
Single Side Automatic Spot Welding Machine
Double Sides Spot Welding Machine
BMS Tester
1-52 series Optional
50A~500A
Battery Pack Comprehensive Tester
Voltage: 10V~300V, Current: 60A~600A
Heat Shrink Wrapping Machine
Shrink Film: PP/PE/POF/PVC
250*120MM/350*150MM/400*200MM/450*300MM/ETC
Inkjet batch code printing machine
Drop on Demand/Continue ink jet printer
Battery Aging Machine
Voltage: 8~30V, Current: 0~400A.
High Voltage Series: 500V~1500V, Current: 100A~1000A
Product Display

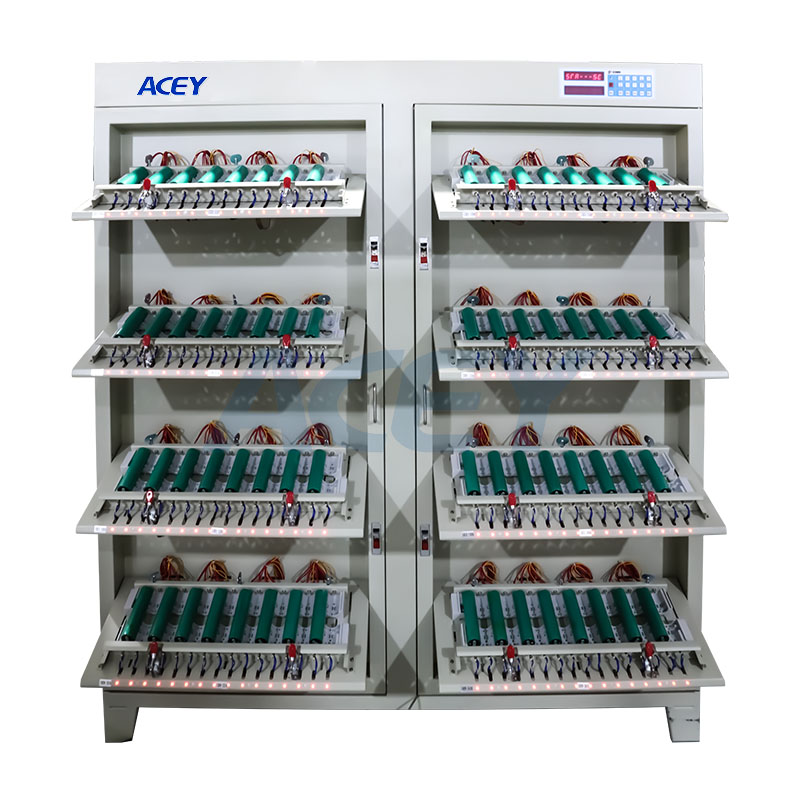

1. Battery charge discharge tester

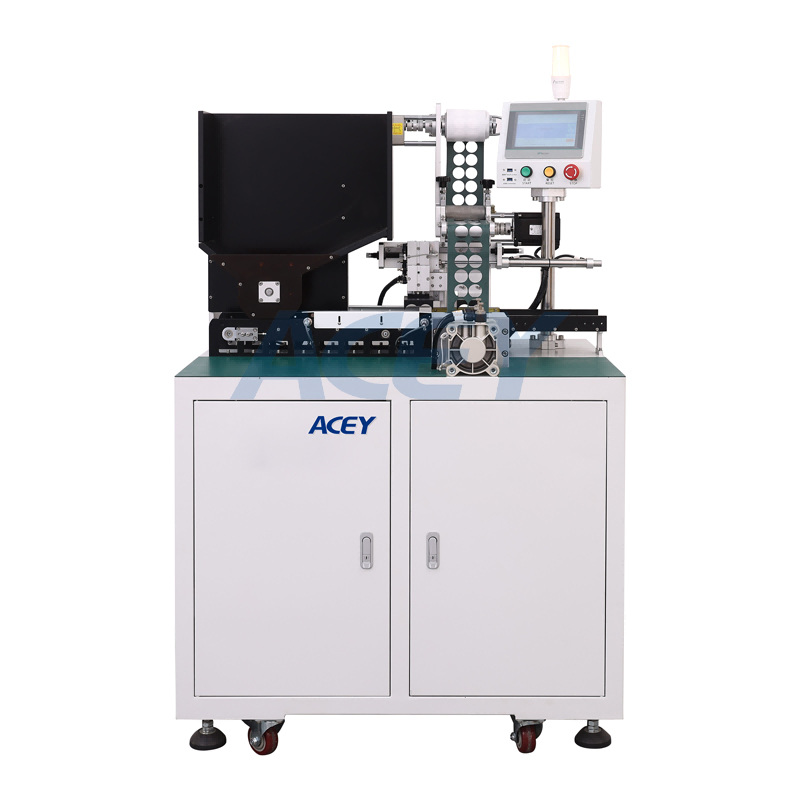

2. Insulation paper pasting machine

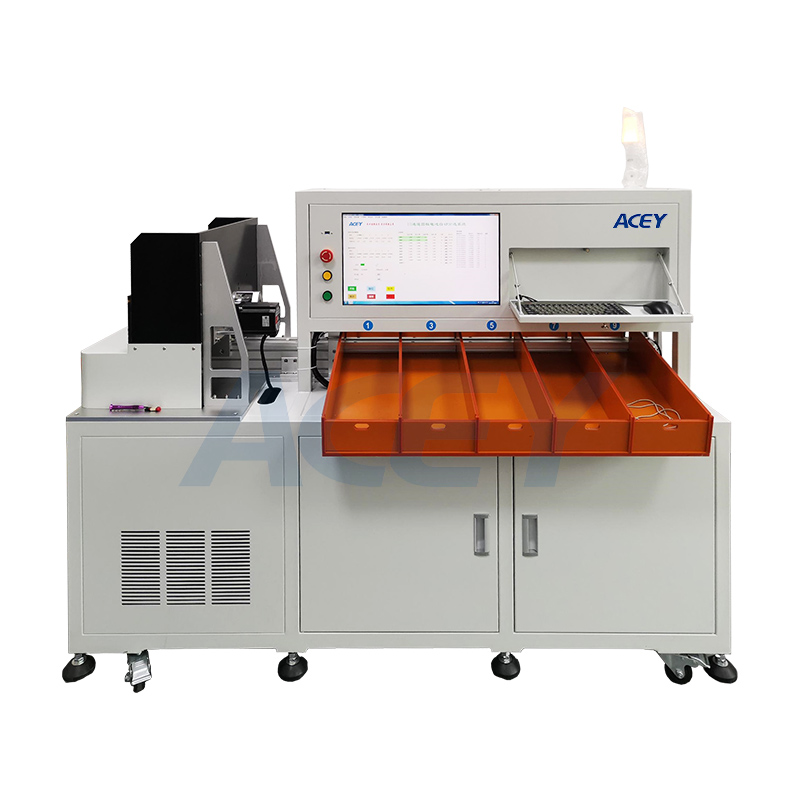

3. Battery sorting machine

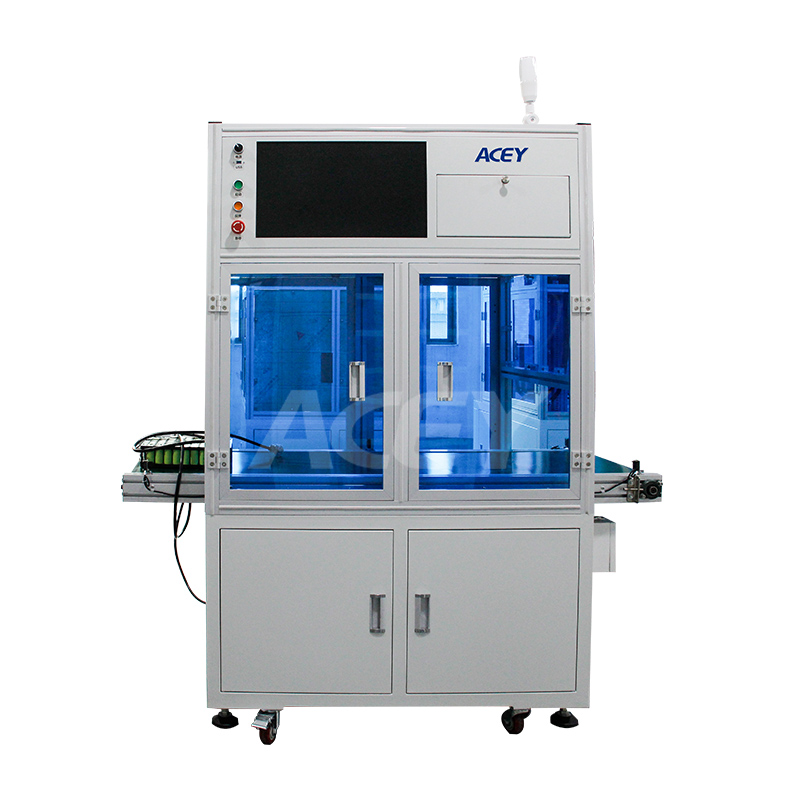

4. CCD visual inspection machine

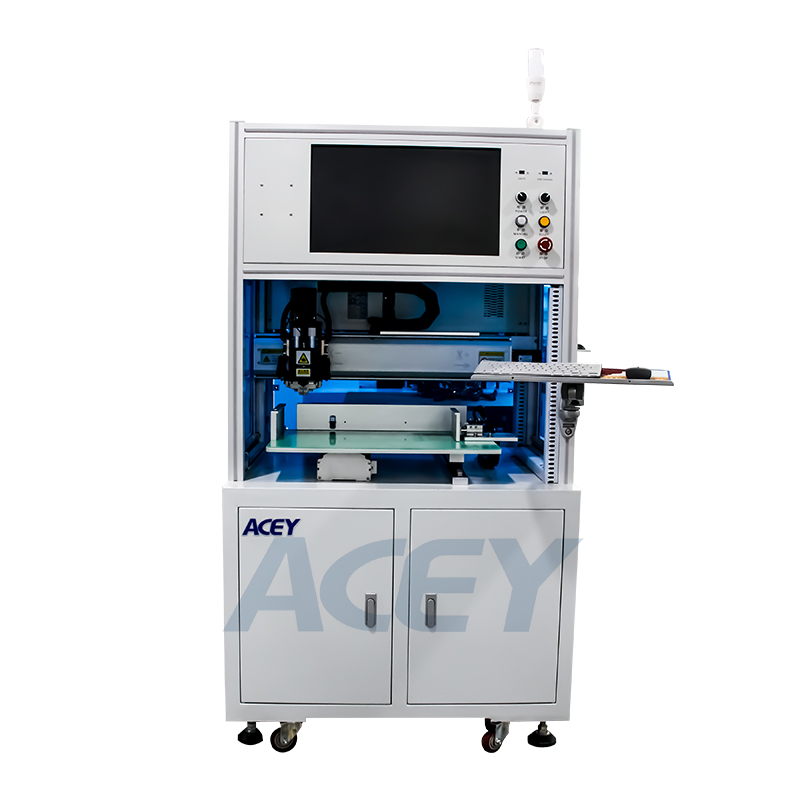

5. Battery pack spot welding machine
6. BMS tester

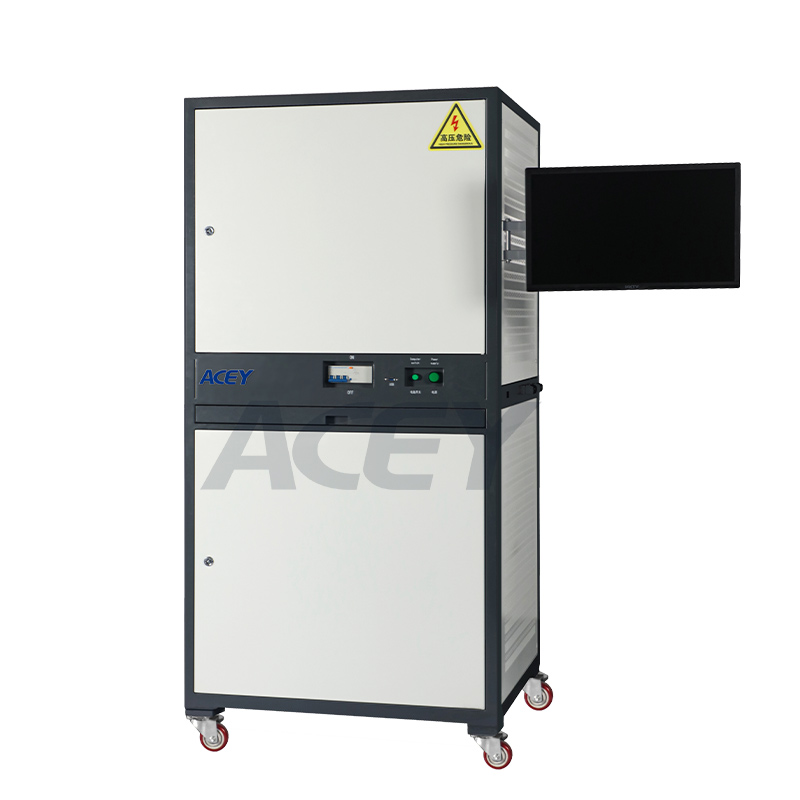

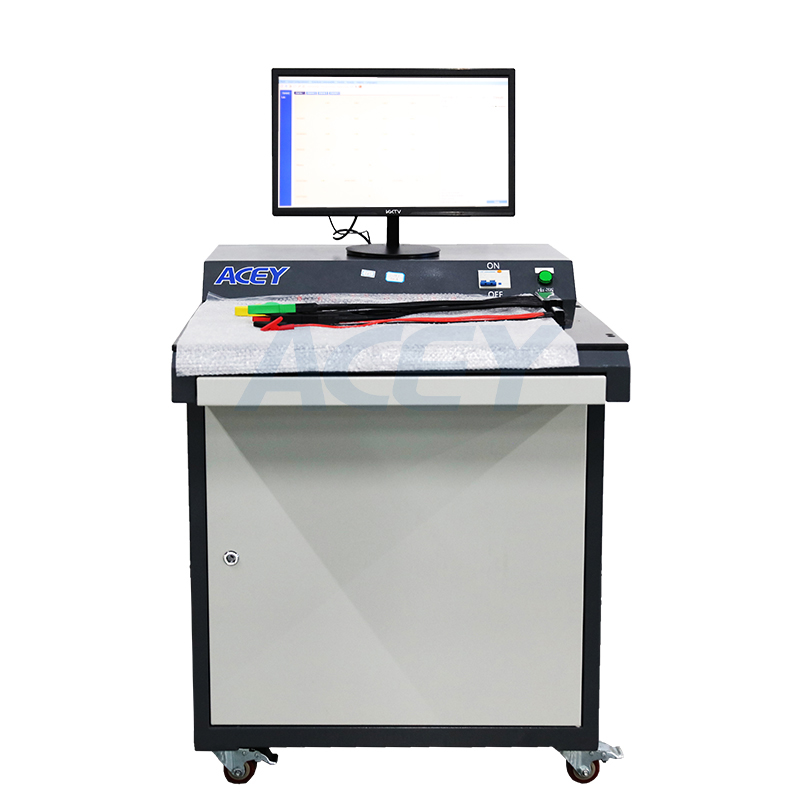

7. Battery integrated tester

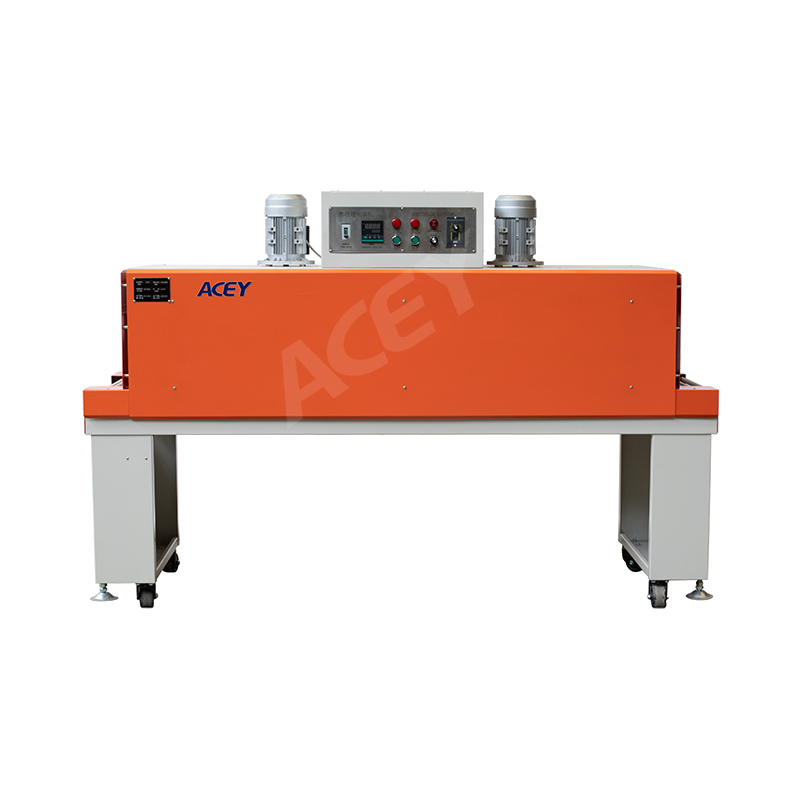

8. Heat shrink wrap machine

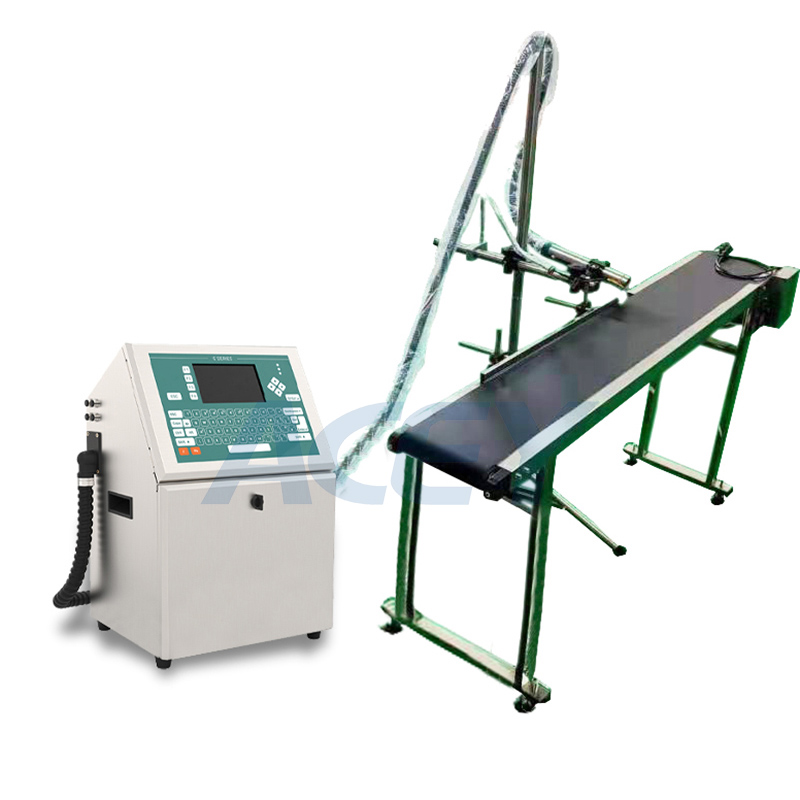

9. Expiry date and batch number printing machine

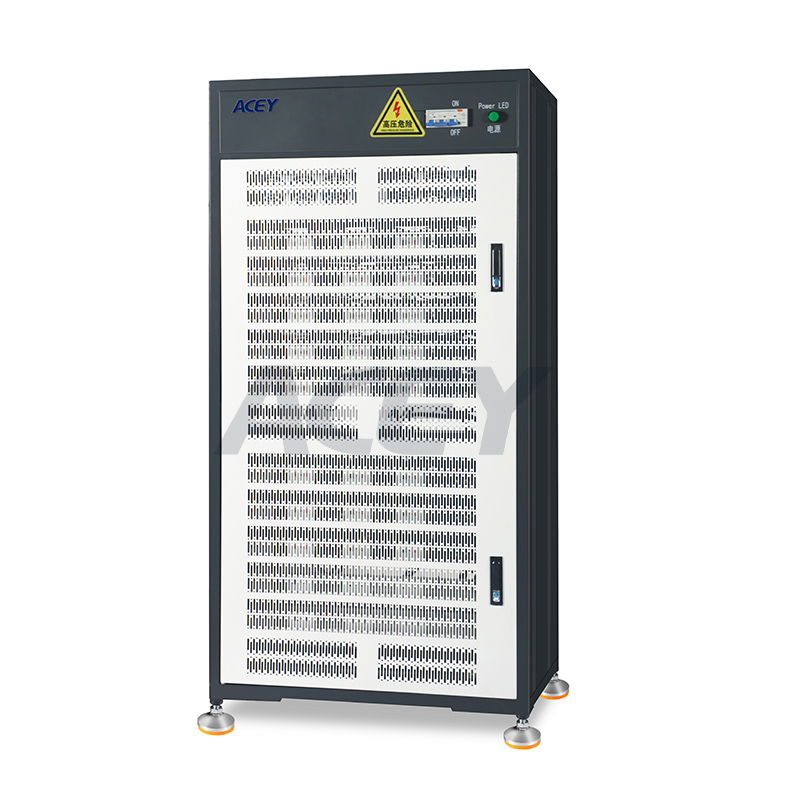

10.Battery pack aging machine
