ACEY-BA12060-24 battery charge discharge aging machine is used for aging, capacity, and cycle life tests of lithium-ion, lead-acid, Ni-MH, Ni-Cd battery pack. It adopts an energy feedback design to return discharged energy to the power grid, achieving high efficiency, low heat generation, and energy savings.
Brand:
ACEYItem No.:
ACEY-BA12060-24Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 SetPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days120V 60A Charge 60A Discharge Energy-Feedback Battery Aging Machine For Lithium Ion/Lead-acid/Ni-MH/Ni-Cd Battery Pack
Product Description
ACEY-BA12060-24 battery aging machine is designed for aging and performance testing of various battery packs, including ternary lithium, lithium iron phosphate, lead-acid, NiMH, and NiCd types. It supports both common-port and separate-port battery pack configurations. The system provides an adjustable and stable output voltage range from 10V to 120V and an adjustable current range from 100mA to 60A. It is widely used by battery manufacturers for module production testing, as well as for charge and discharge testing of battery packs used in vacuum cleaners, power tools, electric scooters, and other applications.
Equipment Composition
The system mainly consists of a power supply module, an AC/DC voltage conversion module (bidirectional AC/DC inverter), a control module, a power module, a cooling system, a data acquisition system (for single cell voltage, total voltage, current, and temperature), an upper computer data processing system, and a cabinet structure.
Equipment Features
Parameters
| No. | Item | Functional Requirements | |
| 1 | Number of Channels | 24 channels | |
| 2 | Channel Operation Mode | Fully independent channels | |
| 3 | Main Channel Voltage | Single Channel Voltage Range | 0V–120V, adjustable within the range |
| Minimum Discharge Cut-off Voltage | 10V (adjustable) | ||
| Accuracy | 0.1%FS ± 0.1%RD | ||
| Resolution | 1mV | ||
| Main Channel Current | Single Channel Current Range | ±60A | |
| Minimum Discharge Current | 100mA | ||
| Accuracy | 0.1%FS ± 0.1%RD | ||
| Resolution | 1mA | ||
| Current Response Time | <10ms (10%FS→90%FS) | ||
| Power | Output Power | 2kW per channel | |
| Stability | ±0.1%FS | ||
| Parallel Function |
Supports main channel parallel operation. |
||
| 4 | Control Program | Supports data synchronization, main/sub-channel data connection, and file merging. | |
| Supports safety protection settings including overvoltage, undervoltage, overcurrent, and overtemperature. | |||
| Supports auxiliary channel protection settings such as overvoltage, undervoltage, and overtemperature. | |||
| Cycle count: Maximum 9999 | |||
| Step time unit: Supports input in min:s format | |||
| Data upload interval: Minimum 1s | |||
| Data Display Mode | Cycle List | Includes cycle number, charge/discharge capacity, charge/discharge efficiency, charge/discharge amount, average charge/discharge voltage, etc. | |
| Control List | Includes step number, operating mode, step time, capacity, energy, median voltage, termination voltage, termination current, etc. | ||
| Alarm List | Includes record number, system time, cumulative time, voltage, current, energy, power, etc. | ||
| 6 | Data Export Method | Test data can be exported to EXCEL format, supporting voltage, current, capacity, energy, and temperature data. | |
| 7 | Curve Type | X-axis: Total time, charge/discharge capacity, cycle count, etc.; freely configurable | |
| Y-axis: Total voltage, current, capacity, cell temperature, charge/discharge capacity, cell voltage, etc.; freely configurable | |||
| 8 | Protection | Power-off data protection, task pause and resume, overvoltage/undervoltage protection, overcurrent/undercurrent protection, SMBus, I2C, HDQ, SPT, CAN, RS485 | |
| 9 | Communication Function (Optional) | SMBus, I2C, HDQ, SPI, CAN, RS485. | |
| Supports reading BMS parameters (voltage, current, temperature, capacity) and DC signal control. | |||

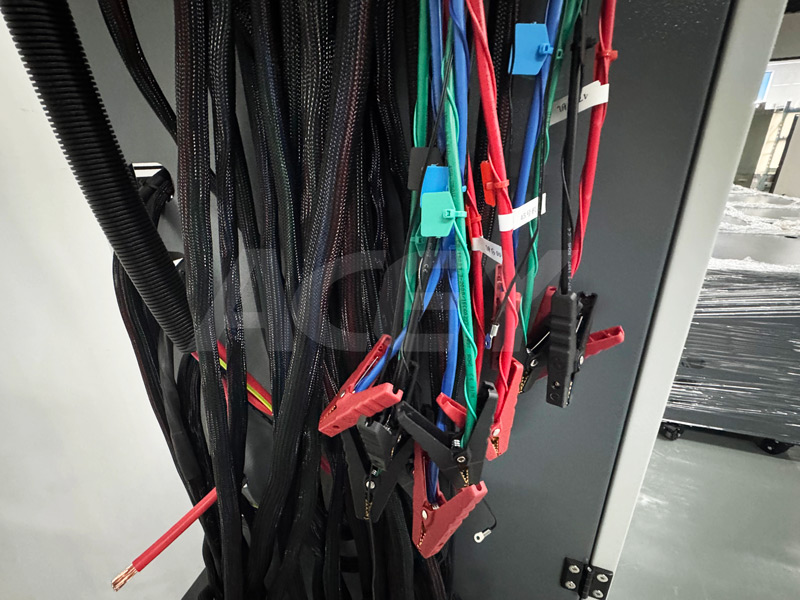

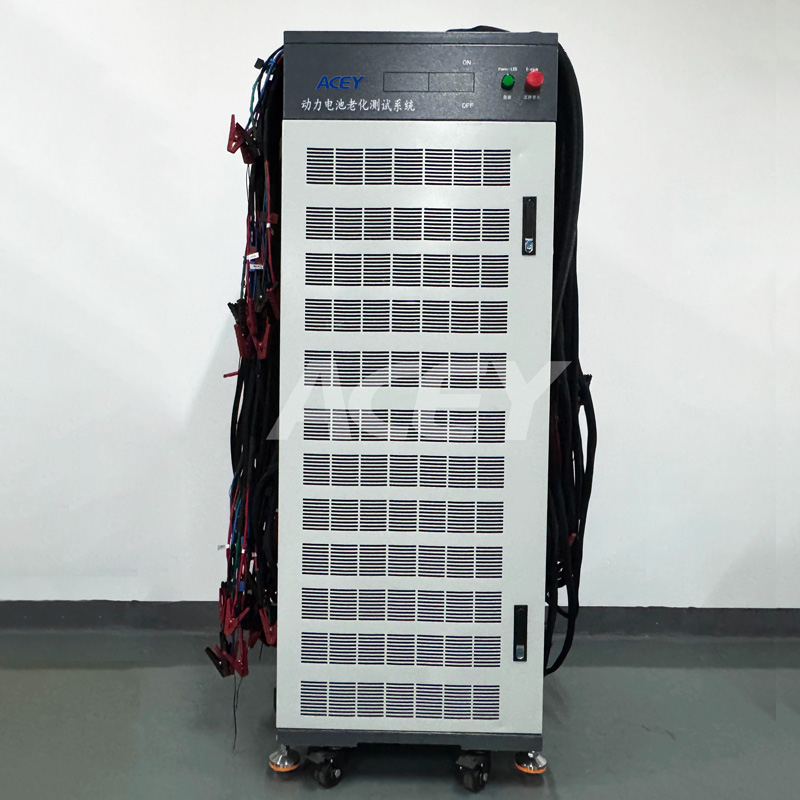

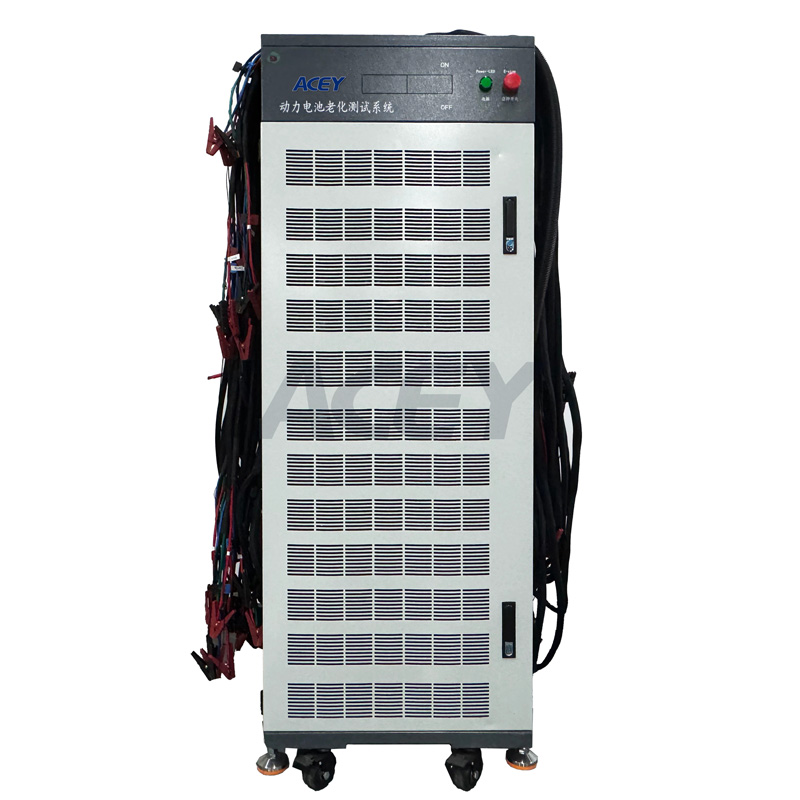

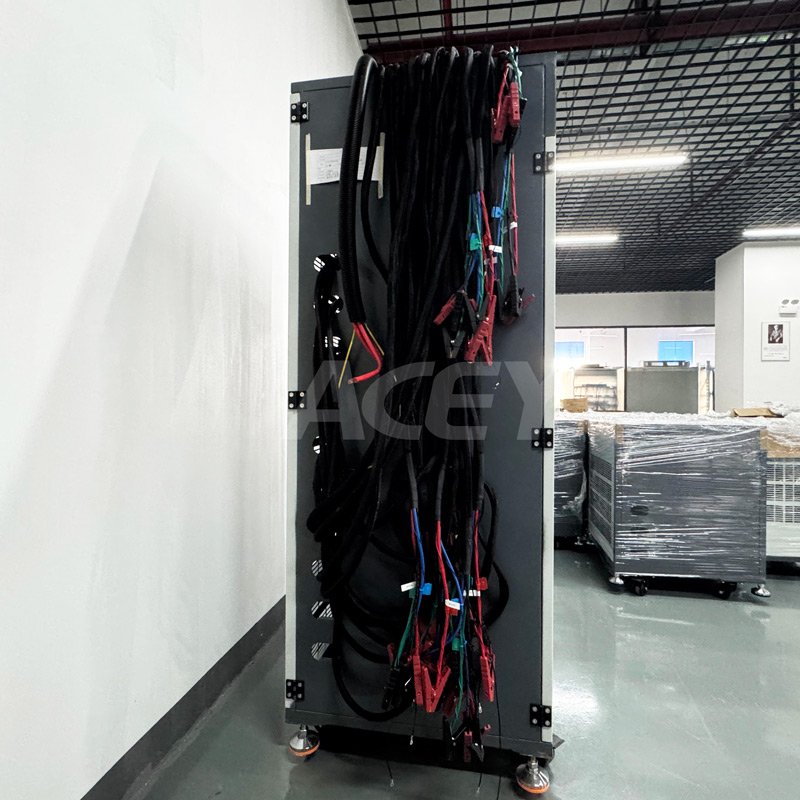

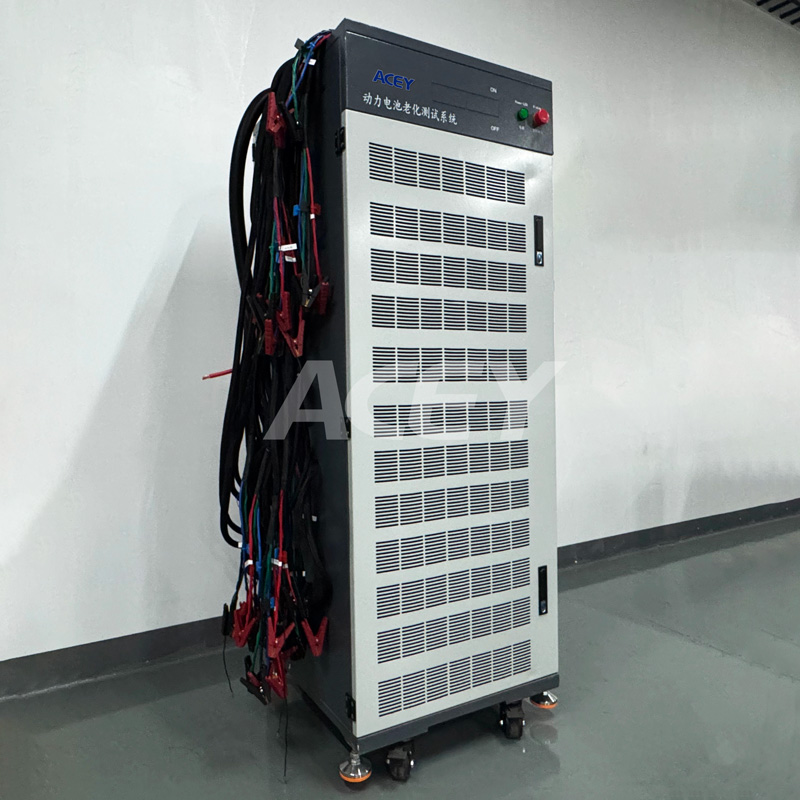

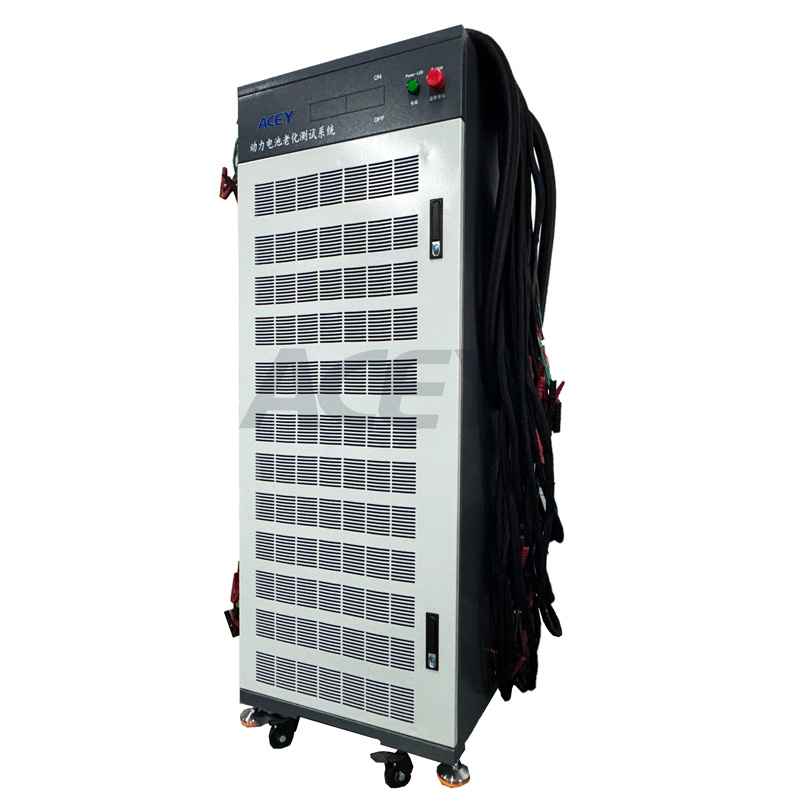

Product Display
