XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
![$this->product_detail['product_name']](/uploadfile/category/d29808239dd7677a1415cfbfa4906a69.jpg)

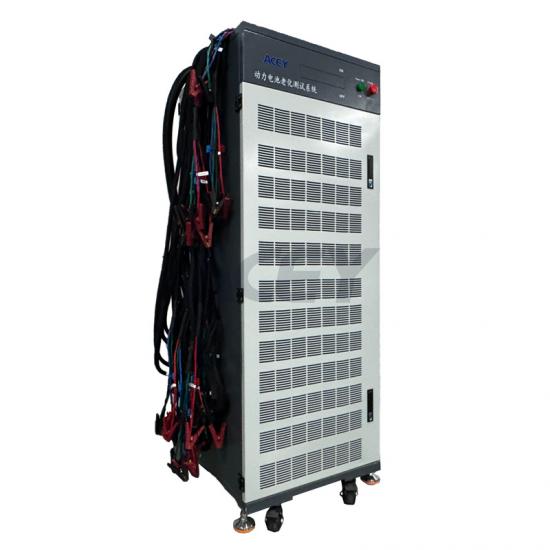

The 100V 100A Battery Charge and Discharge Aging Test System is designed for performance and cycle life testing of various rechargeable batteries, such as Lithium Iron Phosphate Battery, Nickel Manganese Cobalt Battery, Lead-Acid Battery, Nickel-Metal Hydride Battery, Nickel-Cadmium Battery.
Brand:
ACEYItem No.:
ACEY-BA100100-12Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 SetPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days100V 100A Charge 100A Discharge Lithium Ion Battery Pack Testing Aging Machine
Product Description
ACEY-BA100100-12 high-performance battery aging machine offers a stable and fully adjustable output voltage of 8V–100V and current of 500mA–100A, making it ideal for battery manufacturers, EV/HEV systems, research institutions, and charging stations. It supports battery module production testing, high-current charge and discharge evaluation, performance analysis, and routine maintenance. Key features include cycle life testing, capacity measurement, charge/discharge profiling, and temperature characteristic testing—providing a comprehensive solution for battery performance assessment.
Equipment Composition
The system mainly consists of a power supply module, an AC/DC voltage conversion module (bidirectional AC/DC inverter), a control module, a power module, a cooling system, a data acquisition system (for single cell voltage, total voltage, current, and temperature), an upper computer data processing system, and a cabinet structure.
Equipment Features
Parameters
NO
Item
Function requirement
1
Channel
12
2
Action Mode
Completely independent
3
Main channel work mode
Charging: constant current and constant voltage charging CCCV.&CC
Discharge: constant current discharge CD.& CP
Resting, stopping
Main channel test abort condition
Time, voltage, current, capacity, etc
4
Voltage of main channel
Votage range of Charge&discharge
10V-100V
Accuracy
±（0.05%FS+0.05%RD）
Resolution
1mV
Current of main channel
Maximum output current
100A
Minimum output current
100mA
Accuracy
±（0.05%FS+0.05%RD）
Resolution
1mA
Power
Output
Single channel continuous operation maximum power 10KW
Auxiliary channel parameter cut-off function
The main channel step can be set to stop or switch when the auxiliary channel signal reaches certain conditions.
5
Control program
Support for power-down data protection, support for power outages, manual stopping and succession of tests from data files.
Safety protection conditions can be set, including: lower voltage limit, upper voltage limit, lower current limit, upper current limit, voltage and current trend。
Auxiliary channel protection conditions can be set and parameters can be set including: upper voltage limit, lower voltage limit, upper temperature limit and lower temperature limit.
Cycle times
Max 9999
Work step time unit
h、min、s are available
Data logging
Min 5S
6
Data display method
Loop List
cycle number, charge/discharge capacity, charge/discharge efficiency, charge/discharge energy, charge/discharge average voltage, etc.
Process List
process serial number, operation mode, process time, capacity, energy, median voltage, termination voltage, termination current, etc.
Detailed list
There are record serial number, system time, accumulated time, voltage, current, energy, power, etc.
7
Data export method
The data can be exported to EXCEL and chart files, which can provide a variety of data analysis curves such as charging and discharging efficiency, charging and discharging curves, voltage, capacity, current time characteristics, etc., and the curves can be imported into EXCEL.
8
Curve Type
X coordinate: total time, charging and discharging capacity, cycle times, etc., can be set freely.
Y coordinate: total voltage, current, capacity, single body temperature, charge/discharge capacity, single body voltage, etc., can be set freely.
Software protection
Power-down data protection, power-off pause renewal, over-voltage and over-discharge protection, over-current and under-current protection, capacity protection, over-temperature protection, abnormal current fluctuation protection, abnormal charging voltage rise rate protection, abnormal discharge voltage fall rate protection.
Hardware protection
Battery reversal, over-current protection, over-voltage protection, short-circuit protection.
9
Alarm function
The hardware has functions such as emergency cut-off switch, automatic shutdown after power failure, and automatic load connection and disconnection.
10
Output wire
Four-wire connection mode with separate current and voltage lines.
11
Maintainability
Modular structure, available spare parts, spare parts for timely replacement, repair, free of charge during the warranty period.
12
Test channel and battery pack connection method
Alligator clamp/OT clamps
13
Equipment testing environment and technical requirements
Single cabinet requires 30KW 380V three-phase four-wire power configuration, ventilation and dry plant
Working environment: temperature -10℃～40℃ / humidity: 10%～90%
