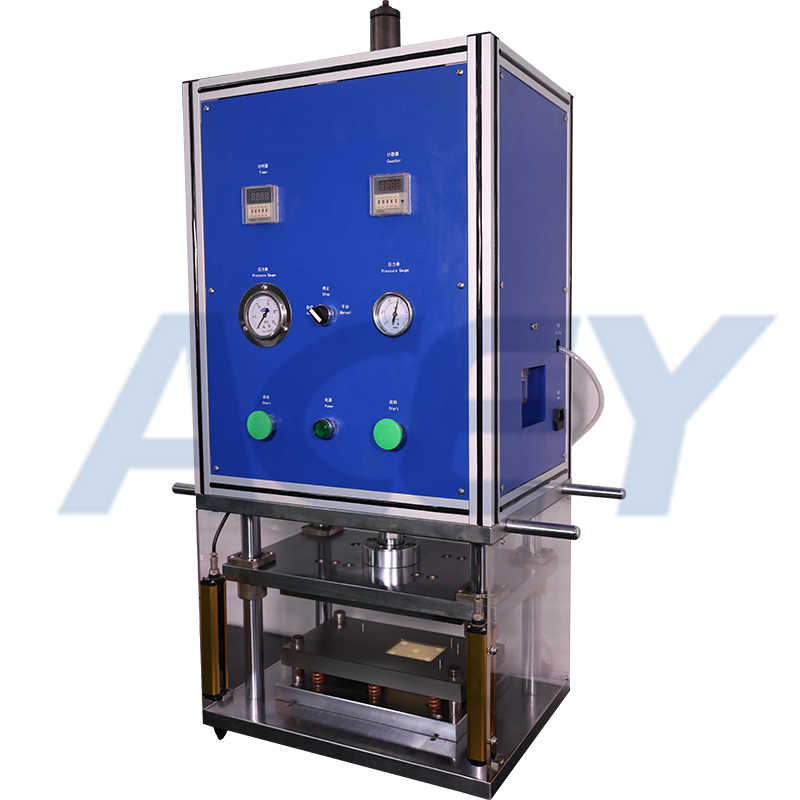

The aluminum-plastic film forming machine is an equipment used in the aluminum-plastic film forming of lithium-ion pouch cell. The equipment is driven by a pressurizing cylinder, and the upper and lower molding dies can be made according to customer requirements to realize the molding of aluminum-plastic film shells of lithium-ion batteries of different sizes.

An aluminum-plastic film forming machine, characterized in that it comprises a frame on which a workbench and a fixing plate are arranged, the fixing plate is located on the upper part of the workbench, and the workbench and the The fixed plates are separated by a predetermined distance, the upper part of the workbench is fixed with a plurality of lower mold fixing seats, the lower part of the workbench is fixed with a power device, and the upper part of the fixed plate is provided with a second power device. The lower part is provided with an upper mold fixing device, the upper mold fixing device is detachably fixedly connected to the power device, the power device drives the upper mold fixing device to move up and down, and the upper mold fixing device includes an upper mold connecting plate And two oppositely arranged fixing parts, the fixing part includes a fixing block and a fixing stud, the fixing block is fixedly connected with the upper mold connecting plate, the fixing stud is screwed with the fixing block, the The upper die position is located between the two fixed parts.

A full-automatic film punching machine, which is mainly used for forming and cutting to length of aluminum-plastic film of soft-packed liquid lithium-ion battery. Including: automatic unwinding→tension control→servo stamping forming→servo automatic drawing→fixed-length cutting→manual rewinding.

The process flow of the equipment is:

1. Manually load the material roll (aluminum-plastic film) to the unwinding mechanism

2. The motor controls the inflatable shaft to automatically discharge the material.

3. The unwinding motor cooperates with the back-end pulling servo to automatically adjust the tension.

4. The servo control pulls out the aluminum-plastic film at a fixed length.

5. Cooperates with the unwinding tension mechanism to ensure the aluminum-plastic The film is discharged smoothly.

6. The rapid pressurizing cylinder and the servo motor cooperate to complete the constant force stamping and forming.

7. The aluminum-plastic film drawn out of the fixed length is cut. 8. The material is collected manually.

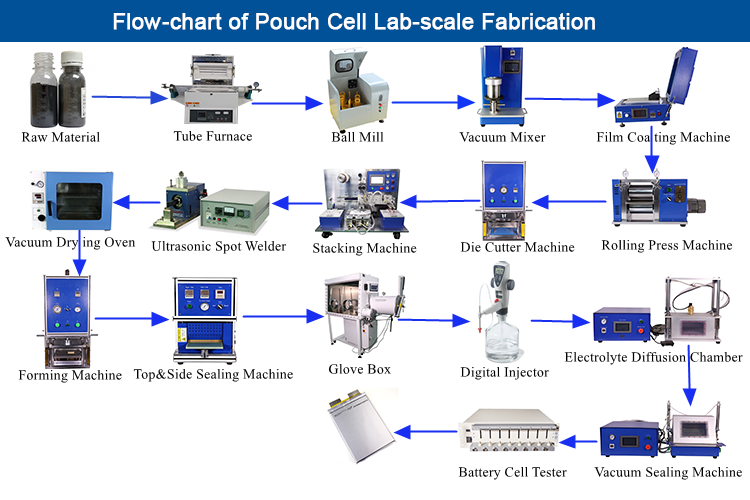

ACEY NEW ENERGY provides pouch cell lab research machine.
