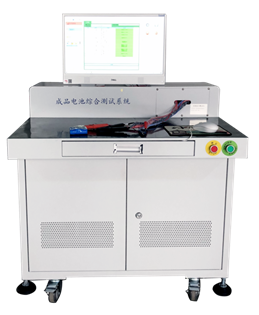

The use of lithium battery comprehensive tester is to test the performance of lithium battery, including voltage, internal resistance, capacity, internal pressure, self-discharge rate, cycle life, sealing performance, safety performance, storage performance, appearance, etc. , over-release, etc.

1. Power switch: the power switch of the tester. 2. Emergency stop switch: cut off the discharge circuit and charging circuit of the battery in an emergency. 3. Press this button for about 1S when the computer is turned on, the screen will automatically light up, and the computer will be turned off by a short press. 4. Under the home page of the test software of the lithium battery comprehensive tester, select the trigger of the lower computer, and press this button to trigger the automatic test of the system. When the computer is running normally, a sudden power failure or forced shutdown may cause damage to computer files. It is recommended to cut off the power when the computer is turned off. If the software fails to start normally, you can delete the original program and continue to use the program files that have been decompressed and backed up.

Clamp method: 1.P+: battery positive terminal. 2.P-: Battery negative terminal. 3.C+: Different port charging positive terminal. 4.C-: Different port charging negative terminal. Charging and discharging are all the same terminal, generally speaking, the battery has only one positive and one negative. Charging and discharging are not in the same port. There are three types of batteries with different ports. The positive and negative ports are different, and the positive and negative ports are different.

1. Positive pole different port: The negative pole is the same port, the positive pole of charging and the positive pole of discharge are not the same port.

2. Negative pole different port: the positive pole is the same port, the charging negative pole and the discharging negative pole are not the same port.

3. Different positive and negative ports: The battery has two sets of positive and negative lines, and the charging and discharging ports are not shared.

The lithium battery comprehensive tester is one of the lithium battery testing equipment that belongs to the lithium battery assembly equipment. This link of the lithium battery comprehensive tester is equivalent to the last step, that is, after the entire lithium battery pack is welded, can it be used? , Safety is not safe, is to use a comprehensive tester to test, if all pass, it is equivalent to this lithium battery is a finished product, you can sell it. Another point to be reminded is that the entire battery pack is equipped with a protection board before the lithium battery comprehensive tester can be used, because the protection board has 2 positive and one negative wires, and the comprehensive tester has 2 clamps to clamp to test.
