XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
![$this->product_detail['product_name']](/uploadfile/category/21ba821835cda2ca9839bd228e6114af.jpg)
Brand:
ACEYItem No.:
ACEY-HSM5035CCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:

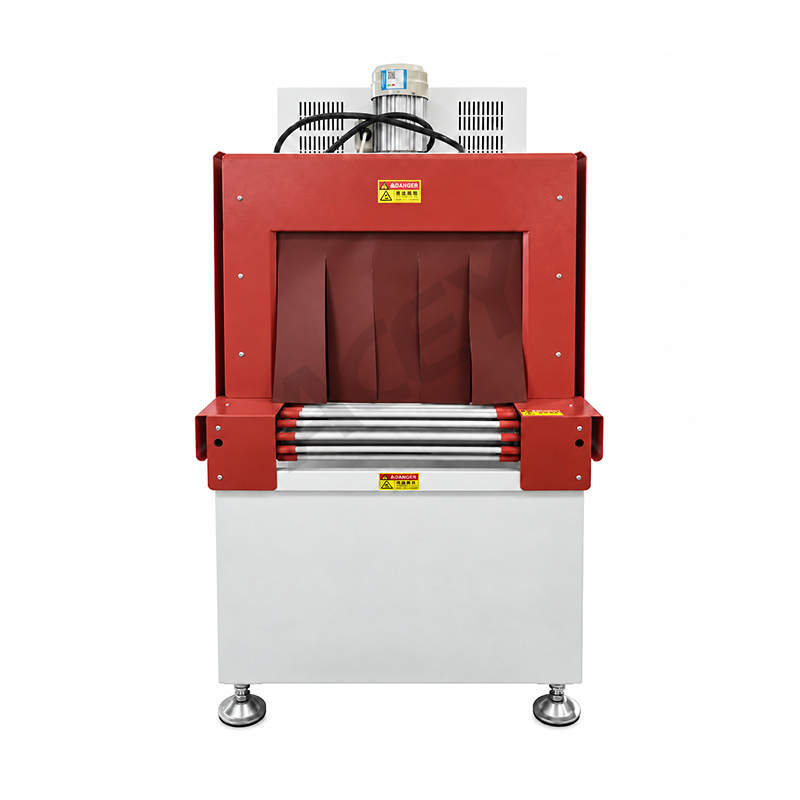

7-35 daysACEY Automatic Heat Shrink Tunnel Machine For PE POF PVC PP
Product Introduction
ACEY-HSM5035C shrink tunnel machine conveys film-wrapped products through a heated tunnel to shrink the film around the product. Its stainless steel heater and hot air circulation system supply heat throughout the shrinking chamber. Conveyor speed and chamber temperature can be adjusted to suit the film and product requirements.
The machine supports PE, POF, PVC and PP shrink films. Its tunnel measures 1,800 × 500 × 350 mm (L × W × H), with an effective passage of 400 × 300 mm (W × H). A chain roller conveyor transports products through the tunnel and supports a maximum load of 25 kg.
Double-layer heat insulation and heat-resistant insulating curtains help reduce heat loss. The machine also includes fault alarms for phase loss, phase sequence errors and short circuits.
Product Features
Technical Specifications
Item
Specification
Model
ACEY-HSM5035C
Equipment Type
Conveyor-Type Heat Shrink Tunnel Machine
Compatible Shrink Films
PE / POF / PVC / PP
Power Supply
380 V, 50–60 Hz
Rated Power
15 kW
Shrink Tunnel Dimensions (L × W × H)
1,800 × 500 × 350 mm
Effective Passage Size (W × H)
400 × 300 mm
Conveyor Speed
0–15 m/min
Conveyor Type
Chain Roller Conveyor
Maximum Conveyor Load
25 kg
Heater
Stainless Steel Heater
Machine Dimensions (L × W × H)
2,100 × 750 × 1,620 mm
Machine Weight
Approximately 200 kg
Application Selection
ACEY-HSM5035C heat shrink tunnel machine is used for heat shrink packaging of products wrapped in PE, POF, PVC or PP film. For battery pack applications, model selection should account for pack dimensions, weight, film requirements and allowable heat exposure.

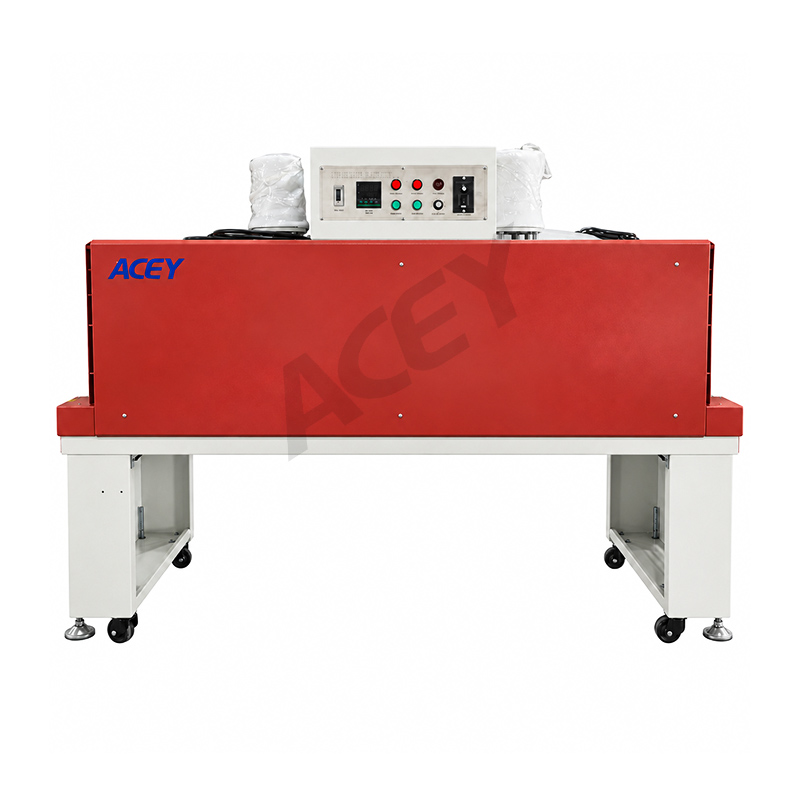

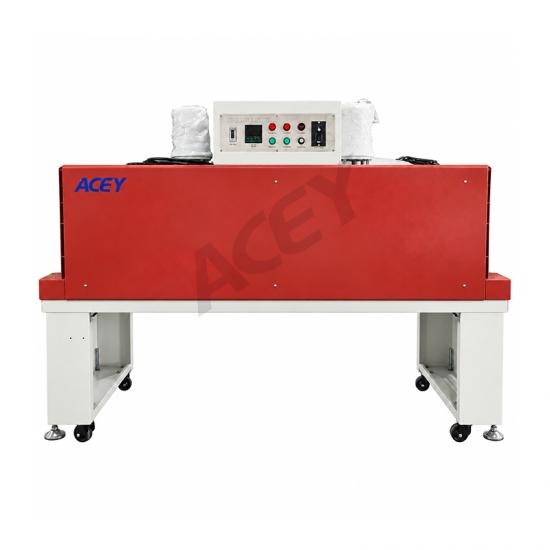

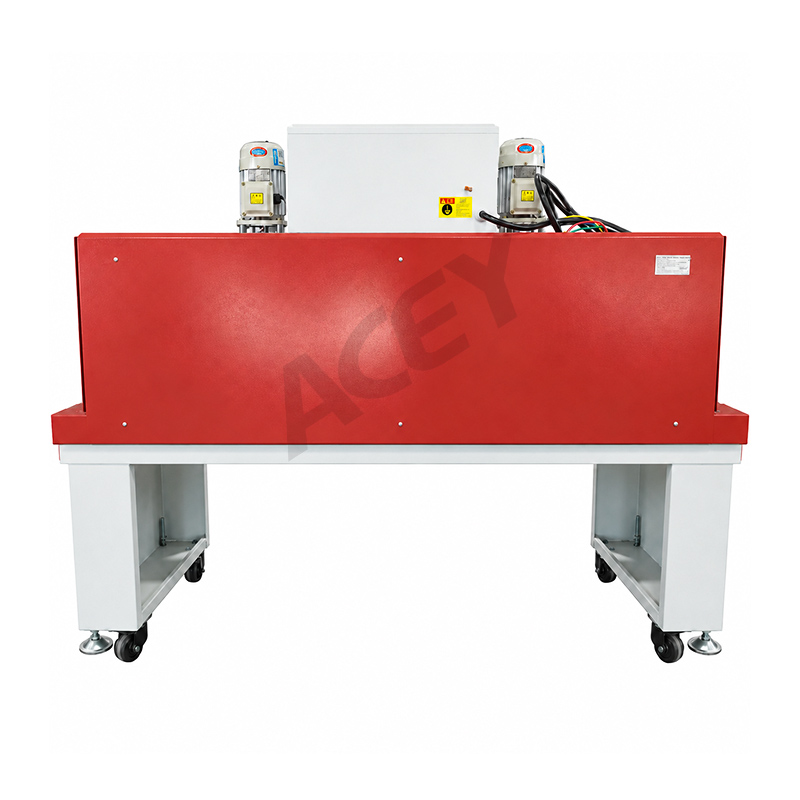

Product Display
FAQ
1. Which shrink films can the ACEY-HSM5035C process?
The machine supports PE, POF, PVC and PP shrink films. Please provide the film type, thickness and product dimensions when requesting model selection advice.
2. Can the conveyor speed and temperature be adjusted?
Yes. Conveyor speed is adjustable from 0 to 15 m/min, and the chamber temperature can also be adjusted. The appropriate settings depend on the film and product requirements.
Request a Quotation
Contact ACEY with your product specifications and shrink packaging requirements. We can review the application, confirm the model and provide a detailed quotation.
Automatic PVC POF Packaging Machine Film Heat Shrink Wrapping Machine
The heat shrink packaging machine uses imported motor makes it more stable during pushing and sealing;And It has a compact structure and a small footprint;Specially designed sealing knife makes sure solid sealing line, no cracking and anti-stick;Usage of imported electrical components reduces failure during the using process.
Automatic PVC POF PE PP Film Heat Shrink Packing Wrapping Machine
BSP series with the lack of phase, phase error, short circuit automatic fault safety alarm. Mining With stainless steel heater, high power supply of wind motor,so that the temperature of shrinkage furnace heatingup quickly, The air quantity is big, the wind is even,according to the size of the product, the quantity of the product can be adjusted. Conveyor belt speed andfurnace chamber temperature to achieve the besteffect of contraction.
Automatic POF PE PP Packaging Machine PVC Heat Shrink Wrapping Machine
ACEY-5035 is an economical shrink packaging machine. The operation is simple. Just pressing the pusher button, the machine automatically seal then the products enter into shrink packaging machine. The machine is widely used in drinks, daily chemical, building materials, food with paper tray or without paper tray etc. And it also can be used for electrical appliances,auto parts, furniture, flooring and other individual or group shrink wrap.
POF PVC Shrink Wrap Packaging Machine
ACEY-4020 Heat Shrink Packaging Machine is designed for cylindrical and combined battery heat shrink packaging process, using a combination of far-infrared and circulating wind heating technology to ensure uniform heat shrinkage of the battery plastic cover, beautiful deformation and high concentration. Suitable for PVC, PP, PE, POF and other types of shrink film.
Automatic Heat Shrink Tunnel Machine For PP PE POF PVC
ACEY-5035C is used in the assembly and packaging of battery packs, particularly for lithium-ion batteries and other types of rechargeable batteries. These machines are designed to securely wrap and seal battery packs using heat shrinkable film, providing protection, insulation, and a clean appearance to the battery packs.
18650 21700 Cylindrical Battery Cell Automatic Heat Shrink Sleeve Applicator Machine
ACEY-ASM-1 automatic shrink sleeve applicator is designed to automatically apply and shrink heat-shrink tubing to cylindrical battery cells. It accurately positions the sleeve, heats it evenly for tight adhesion, and ensures each cell is fully insulated and protected. This process enhances the cell’s appearance, prevents short circuits, and improves overall safety and durability in battery pack assembly.
18650 21700 26650 Battery Automatic PVC Heat Shrink Sleeve Machine With Cover
ACEY-ASM-1C automatic shrink sleeve machine with safety cover is designed for efficient, fully automatic sleeving of cylindrical battery cells. Equipped with a protective enclosure, it ensures safe operation while providing high-speed, precise sleeve application, insulation pad insertion, and uniform heat shrinking.
Automatic Thermal Heat Tunnel Shrink Wrap Machine For PE PP POF PVC
ACEY-HSM5035 Heat Shrink Tunnel Machine is designed for continuous shrink packaging of battery packs and industrial products. It features adjustable conveyor speed, precise temperature control, and uniform hot air circulation for stable shrink results with PE, PP, POF, and PVC films.
