200mm Battery Electrode Manual Horizontal Roller Press Machine

This machine adopts gear transmission to realize the roll pressing.

  • Brand:

    ACEY
  • Item No.:

    ACEY-MRP100W
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1 set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

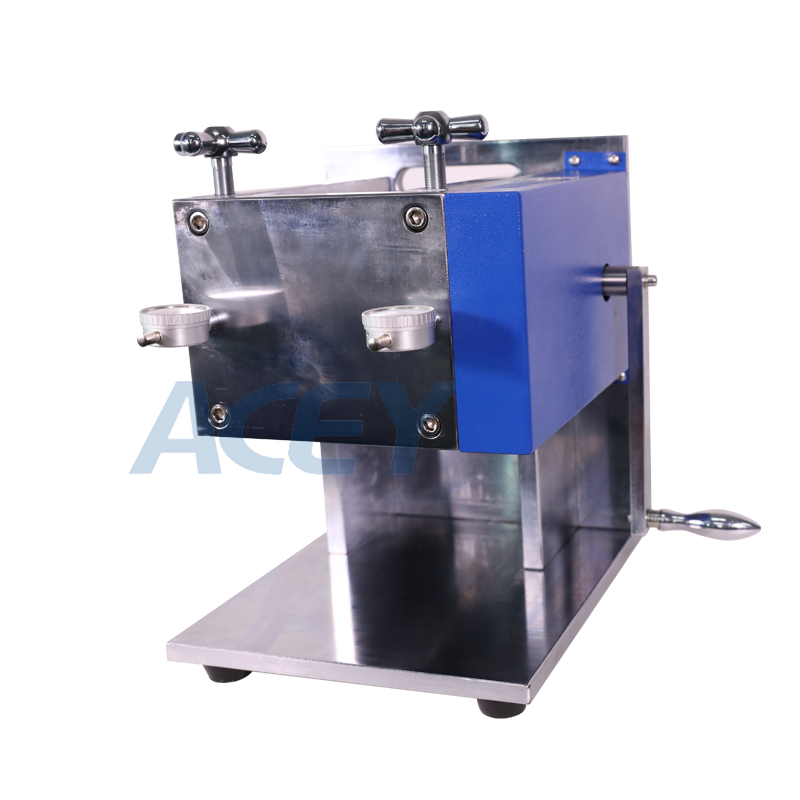

200mm Battery Electrode Manual Horizontal Roller Press Machine

Description

ACEY-MRP100W is mainly used in the laboratory lithium battery materials, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually suppressed.

Features

*Adopt the inclined block to adjust the gap of the tablet, which has good self-control and high adjustment accuracy.

*Adopt gear meshing rotation to realize the roller pressing.

*The thickness and speed of the tablet can be adjusted, and the appearance is exquisite and beautiful.

Specification

Roller size

diameter Φ96mmX100mm

Roller cylindricity

≤±2um.

Roller hardness

HRC62

Roller finish

above 0.4

Rolling thickness

02mm, the gap can be adjusted

Roll placement

horizontal placement

Operation method

manual

Feeding speed

040mm/s, depends on the speed of hand crank

Dimensions

L405mm*W305mm*H355mm

Equipment weight

50KG

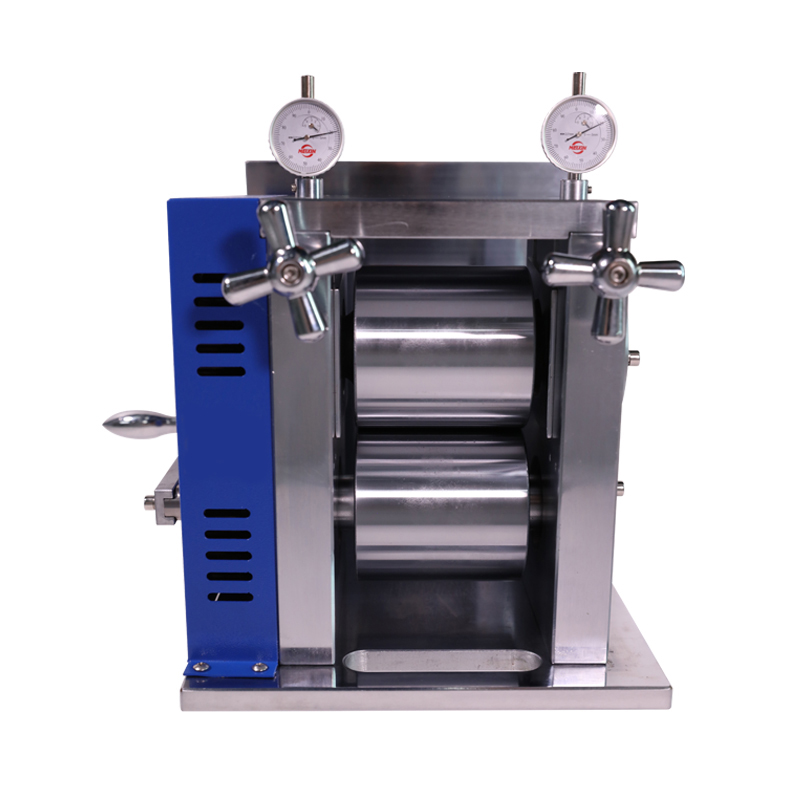

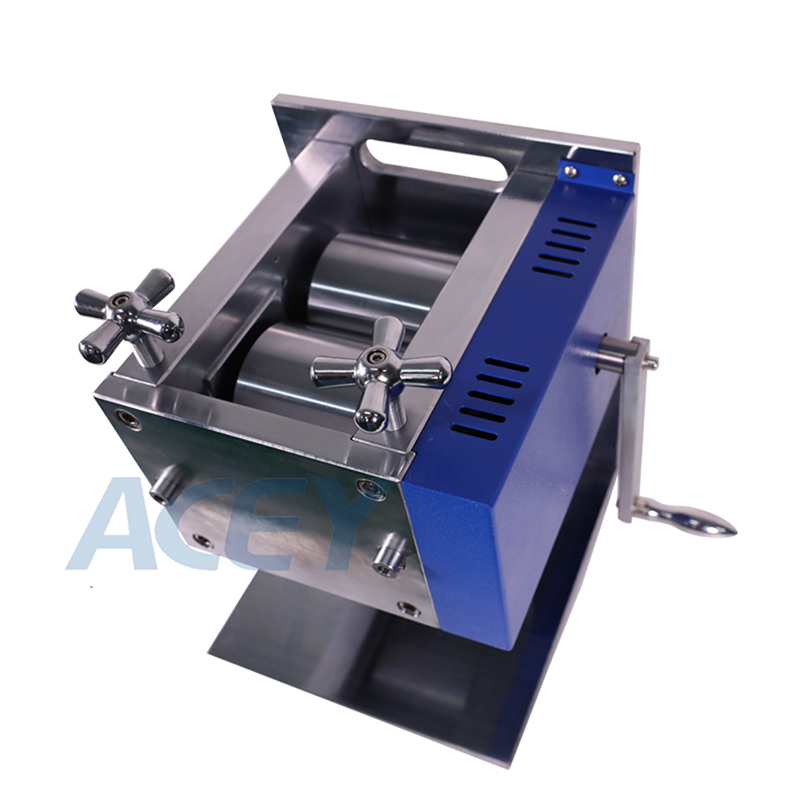

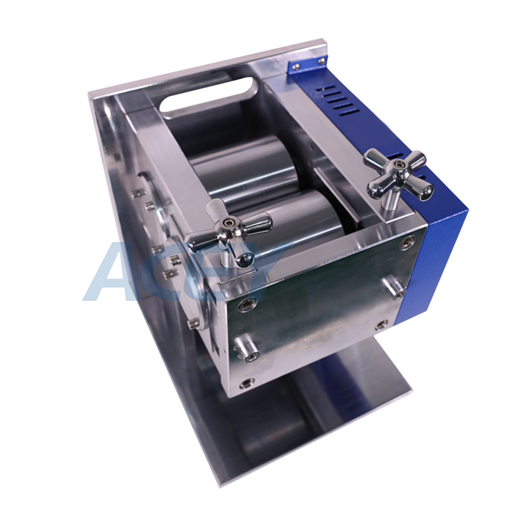

Product Display

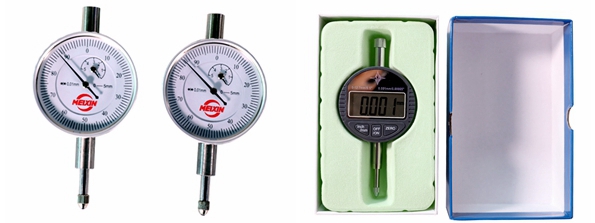

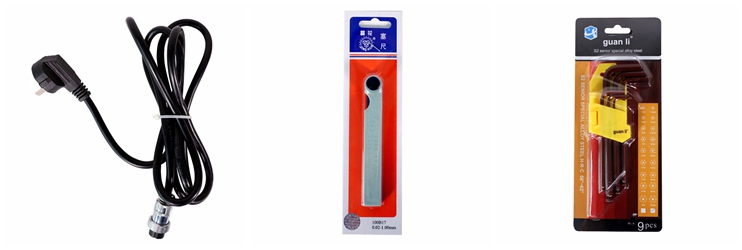

Accessories





Packing
