1.The feeder-type energy-saving prismatic cell testing machine is the latest generation of energy-saving battery testing equipment based on PWM high-frequency power feedback technology exclusively launched in China by Xiamen Acey New Energy Technology Co., Ltd. after years of research and development. It is widely used in lithium-ion batteries and nickel-metal hydride batteries formation and capacity testing of nickel-cadmium batteries. The product's stability, energy saving, precision and quality have been welcomed and praised by many battery industries. The overall technology is currently at the leading domestic level and is leading the continuous advancement of technological changes in the battery industry.

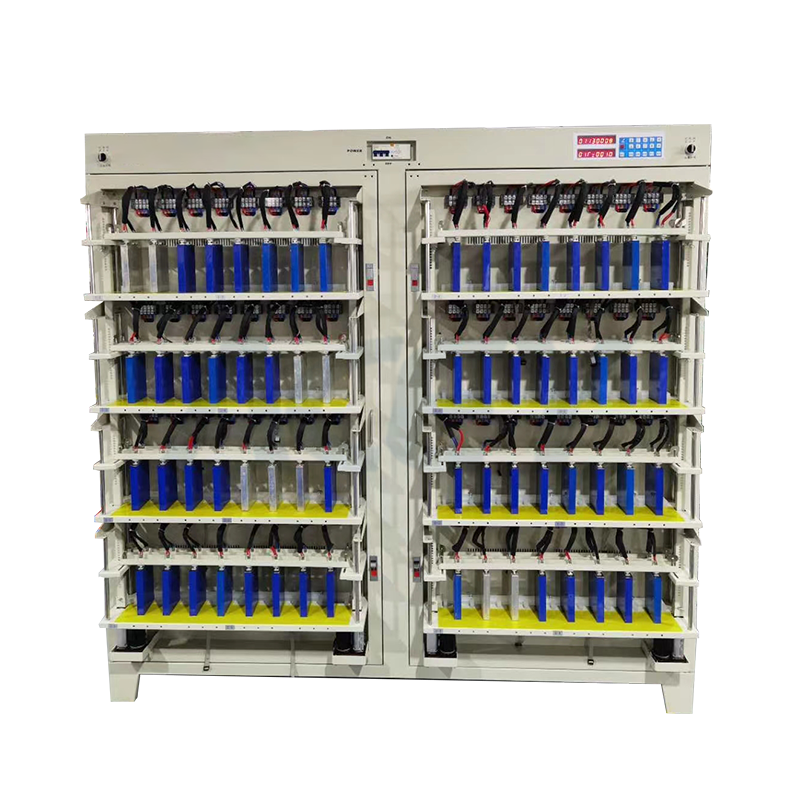

2. The Structure And Appearance Of prismatic cell testing machine

The structure of this equipment is mainly composed of the following parts:

1)One CPU board, the whole cabinet sends and controls uniformly.

2)There are 32 four-channel constant current plates, arranged evenly in four doors.

3)4 bidirectional inverter power supplies, each for 8 constant current boards.

4)Two keyboard boards, front and rear double-sided operation.

5)A total of 16 pallets, the depth of the pallet is 22cm, the epoxy board is attached for insulation, each pallet has 8 channels, and the downward pressure clamp.

3. System Structure And Working Principle

System composition

1)Lithium battery pack equipment (1-10 units).

2)A computer with USB interface (provided by yourself).

3)A USB to 485 interface converter and communication line.

4)A set of ACEY product software

4.Working Principle

The prismatic cell testing machine is connected and controlled by a computer, sending instructions and collecting data, etc.; the keyboard can manually operate the equipment, displaying parameters and status; the constant current board is ordered by the CPU, and has constant current and constant voltage functions; when the battery is charged, the bidirectional power supply converts AC power to 12V Direct current, through the constant current board to realize the charging control and detection of the battery; when the battery is discharged, the process is opposite to charging, the battery voltage is first raised to 12V through the constant current board, and then the direct current is converted into alternating current through the bidirectional power supply. Into the AC power distribution network of the factory, thus realizing the energy feedback of the discharged electric energy of the battery.

Significant power-saving effect: According to actual measurement, the power consumption of the device during charging is reduced by more than 40% compared with that of traditional devices. The comprehensive power-saving rate is more than 60%, and the power consumption is more than 60%, which saves a lot of cost for battery manufacturers.
