How Does A Coating Machine Work?

July 05 , 2023

How does a coating machine work?

A battery coating machine is specifically designed for the application of coatings on battery electrodes. The coating process is critical in battery manufacturing as it helps improve the electrode's performance, stability, and overall battery efficiency. Here's a simplified explanation of how a battery coating machine works:

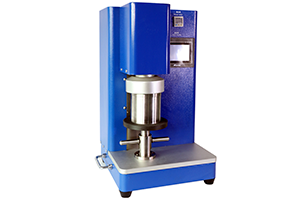

Electrode preparation: The battery electrodes, typically made of materials like lithium-ion compounds or other active materials, are prepared beforehand. This involves mixing the active material with binders, conductive additives, solvents, and other components to create a slurry or paste-like consistency. The slurry needs to be prepared in a (planetary) vacuum mixer.

Coating application: The prepared slurry is fed into the coating machine, which consists of a coating head or a coating blade. The electrode material is typically in the form of a continuous strip or a sheet. The coating head or blade precisely controls the thickness and coverage of the coating as the electrode material passes through it.

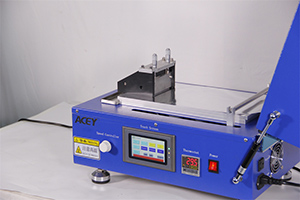

Doctor blade method: The doctor blade method is commonly used in battery coating machines. In this method, the coating head or blade applies a controlled amount of slurry onto the moving electrode material. The doctor blade, which is positioned close to the electrode material, helps to scrape off excess slurry and ensures a uniform coating thickness.

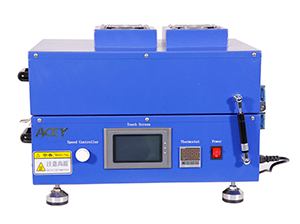

Drying or curing: After the coating is applied, the coated electrode material passes through a drying or curing section. This step is crucial to remove the solvents present in the slurry and to bind the active material to the electrode substrate. The drying process may involve the use of hot air convection, infrared heating, or other drying techniques, depending on the slurry composition and requirements.

Electrode winding and assembly: Once the coated electrode material is dried or cured, it is typically wound onto a spool or rolled up in a specific manner, depending on the battery design. The coated electrodes are then further processed and assembled with other battery components such as separators, current collectors, and electrolytes to form complete battery cells or modules.

The specific design and configuration of a battery coating machine can vary depending on the type of battery, the electrode materials, and the desired coating properties. Advanced battery technologies, such as lithium-ion batteries, may involve more complex coating processes, including multiple coating layers and specialized drying or curing techniques.

Acey new energy is a professional supplier specialized in Lithium Battery Lab Machine, Battery Materials, Battery Pack Assembly Machine and we provide one-stop solution for lithium-ion battery pack assembly line.If you want to learn more details,please feel free to contact us.
