Which is Better, A Lithium or NiMh Battery?

September 12 , 2025

Which is better, a lithium or NiMH battery?

Driven by modern technology, battery technology continues to advance. As two major types of rechargeable batteries, lithium and nickel-metal hydride batteries each offer unique advantages and applications. This article will provide an in-depth analysis of lithium and nickel-metal hydride batteries from multiple perspectives, including energy density, charging time, self-discharge rate, cost, safety, lifespan, environmental friendliness, and related technologies, to help readers better understand and choose the right battery type.

Energy Density

Energy density is a key performance metric that directly impacts battery life and volume and weight. Lithium batteries typically have an energy density between 150 and 250 Wh/kg, while nickel-metal hydride batteries have an energy density of approximately 60 to 120 Wh/kg. This means that lithium batteries can deliver more energy for the same weight, making them suitable for applications requiring high energy density, such as smartphones and electric vehicles.

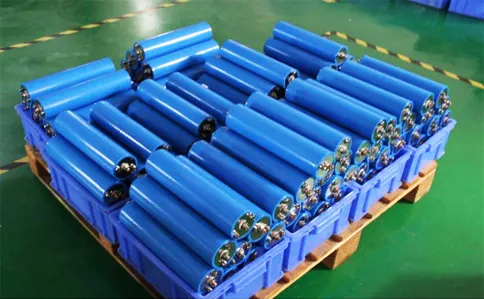

Lithium ion battery

Charging Time
Charging time is a crucial factor in user experience. Lithium batteries charge quickly, typically fully charging within 2-3 hours. In contrast, nickel-metal hydride batteries take longer to charge, typically 3-10 hours. Lithium batteries clearly have an advantage for devices that require fast charging, such as mobile phones and power tools.

Self-discharge rate
Self-discharge rate refers to the natural loss of battery charge when not in use. Lithium batteries have a lower self-discharge rate, approximately 1.5% to 2% per month, while nickel-metal hydride batteries have a higher self-discharge rate, reaching 20% to 30% per month. This means that lithium batteries retain their charge better during extended periods of inactivity, making them suitable for backup power supplies and devices that are not used for extended periods.

Cost
Cost is an important consideration when choosing a battery. Nickel-metal hydride batteries have lower production costs and are relatively affordable. Lithium batteries have a more complex production process and are relatively expensive, but with technological advances and large-scale production, their prices have steadily declined, gradually becoming the mainstream in the market. For applications with limited budgets, nickel-metal hydride batteries may be more attractive.

Safety
Safety is a key issue in battery use. Nickel-metal hydride batteries are generally considered safer than lithium batteries because they have lower specific heat capacity and energy density, and a melting point of 400°C. This means they will not heat up rapidly and ignite in the event of a collision, crushing, puncture, or short circuit. However, due to the high reactivity of lithium ions and high energy density, some types of lithium battery raw materials are flammable. A short-circuit can cause a temperature rise that could lead to spontaneous combustion. Therefore, nickel-metal hydride batteries offer a superior safety advantage.

Service Lifespan
Service lifespan is a key indicator of battery performance. Lithium-ion batteries typically have a lifespan of over 1,000 charge cycles, while nickel-metal hydride batteries have a lifespan of 300-500 charge cycles. This means lithium-ion batteries perform better over extended periods of use and are suitable for applications requiring long battery life, such as electric vehicles and energy storage systems.

Environmental Performance
Environmental performance is a key consideration in modern battery technology. Nickel-metal hydride batteries do not contain toxic heavy metals and have a high recycling value. While lithium-ion batteries do not contain hazardous substances such as cadmium, their production and recycling processes do have some environmental impact. Overall, nickel-metal hydride batteries offer better environmental performance.

Application Scenarios
Lithium-ion batteries are widely used in smartphones, laptops, electric vehicles, power tools, and renewable energy storage systems. Their high energy density, fast charging, and long battery life make them a preferred choice for these high-performance devices. NiMH batteries are more commonly used in digital cameras, communications devices, personal cosmetics devices, and hybrid vehicles. Their low cost and high safety make them competitive in these areas.

Charging Speed
Lithium batteries generally charge faster than NiMH batteries. Lithium batteries can be fully charged in one to three hours, while NiMH batteries take more than ten hours. Lithium batteries' fast charging capability makes them more suitable for applications that require rapid charging, such as smartphones and electric vehicles.

Charging Methods
Lithium batteries and NiMH batteries use different charging methods. Lithium batteries typically use a constant current constant voltage (CCCV) charging method, which initially charges at a constant current. Once the voltage reaches a certain level, the battery switches to a constant voltage until fully charged. NiMH batteries, on the other hand, rely more on constant current charging, resulting in smaller current fluctuations and a more uniform voltage during charging.

Charging Efficiency
Charging efficiency refers to the efficiency with which a battery converts electrical energy into chemical energy during the charging process. Lithium-ion batteries typically have a coulombic charging efficiency between 80% and 90%, while nickel-metal hydride batteries typically have a coulombic charging efficiency of 66%. This means that for every 100 ampere-hours of charge delivered, 150 ampere-hours of charge are required. This indicates that lithium-ion batteries experience less energy loss during charging and are more efficient.

Temperature Sensitivity
Ni-metal hydride batteries are temperature-sensitive, causing their voltage to drop with temperature fluctuations and potentially exploding in extreme temperatures. In contrast, lithium-ion batteries, while also temperature-sensitive, generally tolerate temperature fluctuations better and maintain a constant voltage even at high temperatures.

Charging Safety
Ni-metal hydride batteries are generally considered safer than lithium-ion batteries because they contain fewer active components, which reduces the likelihood of battery reactions. Due to their chemical properties, lithium-ion batteries are more susceptible to thermal runaway when overheated or overcharged, requiring protection circuitry to ensure safe operation.

Heat Generation Mechanism and Thermal Model
Lithium-ion batteries undergo chemical reactions during charging and discharging, generating heat. The negative electrode of a lithium-ion battery has a SEI layer. When the temperature reaches 80°C to 120°C, the SEI layer decomposes, causing the battery to generate excessive heat. Thermal models for lithium-ion batteries are typically based on the formula proposed by Bernardi et al., assuming uniform heat generation within the battery.

The heat generation mechanism of nickel-metal hydride batteries is similar to that of lithium-ion batteries, but due to their different chemical composition and reaction characteristics, the heat generation rate and thermal model may differ. Nickel-metal hydride batteries also generate heat during charging, but the amount of heat released is generally lower than that of lithium-ion batteries.

Thermal Management System (BTMS)
The BTMS for lithium-ion batteries is generally more complex because lithium-ion batteries are more sensitive to temperature. Lithium-ion batteries have a narrow operating temperature range, with an optimal operating temperature of approximately 25°C and a maximum operating temperature difference of no more than 5°C. Lithium-ion battery thermal management systems require strict temperature control to prevent thermal runaway and maximize battery life. NiMH batteries have relatively simple thermal management systems because they are less sensitive to temperature. NiMH batteries can operate over a wide temperature range, and extreme temperatures rarely affect their performance and lifespan.

Cooling Technologies
Common cooling technologies for lithium-ion batteries include air cooling, liquid cooling, and phase change material cooling. Liquid cooling systems are widely used for lithium-ion batteries, particularly in electric vehicles, due to their efficient heat exchange capabilities. Liquid cooling systems can maintain uniform battery temperature, reducing the risk of performance degradation and thermal runaway.

NiMH batteries may utilize air cooling or simple liquid cooling systems. Because nickel-metal hydride batteries have a lower risk of thermal runaway, their cooling system design can be relatively simple and cost-effective.

Temperature Control
Lithium-ion batteries require more stringent temperature control, requiring a precise temperature control system to maintain the batteries within the optimal operating temperature range. A lithium-ion battery thermal management system may include components such as temperature sensors, fans, pumps, and coolant for active temperature control.
Ni-metal hydride batteries require less stringent temperature control and may only require a passive thermal management system, such as a heat sink or natural convection cooling.

Thermal Safety
Thermal safety of lithium-ion batteries is a key consideration in thermal management. Operating lithium-ion batteries at high temperatures accelerates electrochemical reaction rates, leading to capacity degradation, shortened battery life, and even the potential for fire. Therefore, a lithium-ion battery thermal management system must be able to prevent overheating.
Ni-metal hydride batteries have relatively high thermal safety because they react less violently when overheated than lithium-ion batteries. A nickel-metal hydride battery thermal management system focuses more on maintaining battery performance than preventing thermal runaway.

Lithium-ion vs Nickel-Metal Hydride Batteries Comparison

Aspect	Lithium-ion Battery	Nickel-Metal Hydride (NiMH) Battery
Energy Density	150–250 Wh/kg, higher, lighter, longer runtime; ideal for EVs & smartphones	60–120 Wh/kg, lower; bulkier for same capacity
Charging Time	2–3 hours (fast charging supported)	3–10 hours (slower charging)
Self-discharge Rate	Low: 1.5–2%/month; holds charge well	High: 20–30%/month; loses charge quickly
Cost	Higher cost, but prices dropping with mass production	Lower cost, more affordable
Safety	Risk of thermal runaway, flammable under abuse; needs protection circuits	Safer, lower energy density, less prone to fire/explosion
Service Lifespan	>1000 charge cycles (longer lifespan)	300–500 charge cycles (shorter lifespan)
Environmental Performance	No toxic cadmium, but recycling has environmental impact	No toxic heavy metals, higher recycling value, greener
Application Scenarios	Smartphones, laptops, EVs, power tools, energy storage	Cameras, small electronics, personal devices, hybrid vehicles
Charging Speed	1–3 hours (fast charging supported)	>10 hours (slow)
Charging Method	CCCV (constant current → constant voltage)	Constant current (more uniform voltage)
Charging Efficiency	80–90% (less energy loss)	~66% (higher energy loss)
Temperature Sensitivity	Moderate; can tolerate fluctuations but needs control	High; voltage drops with temperature changes, explosion risk at extremes
Charging Safety	Needs monitoring; risk of overcharge/overheat	Safer, fewer active components
Heat Generation	Generates more heat (SEI layer decomposition 80–120°C)	Generates less heat overall
Thermal Management System (BTMS)	Complex, narrow temp. range (~25°C optimum), active control required	Simple, wider operating range, less affected by extremes
Cooling Technologies	Air, liquid, phase change; liquid cooling common in EVs	Air or simple liquid cooling; low cost
Temperature Control	Strict; requires sensors, fans, pumps, coolant	Relaxed; often passive (heat sink, convection)
Thermal Safety	High risk if overheated; can degrade, catch fire	High thermal safety; focus on performance, not runaway

Conclusion

If you're looking for high energy density, fast charging, and a long lifespan, lithium batteries are better.
If safety, environmental friendliness, and low cost are more important, nickel-metal hydride batteries are better.
