Acey new energy is specialized in lithium battery R and D machine manufacturing.

Provide with you lithium battery R&D solutions.

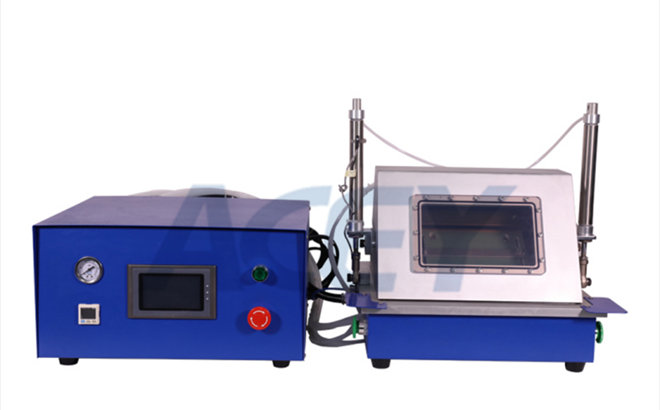

Top & side battery sealing machine is mainly used in heating type sealing equipment on the top and side of pouch cell lithium-ion batteries. The device uses resistance heating to seal the head, so that the aluminum-plastic film can be melted under a certain pressure.

*Professional anti-scalding design, the temperature of the upper and lower irons can be adjusted through the button on the thermostat panel;

*The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products;

*The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;

* The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly and accurately to ensure the parallelism requirements of the product after edge sealing;

*It can be applied to the product batteries of different specifications, and the adjustment is simple and convenient, without adjustment and replacement of the seal head;

*The frame is made of aluminum profile, which has a beautiful appearance; the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;

*Small size, smooth and even seal marks, beautiful appearance of the edge seal; pouch cell heat sealing machine equipment

Besides, The process of exploring the pouch battery also needs the pre-sealing machine and the second sealing machine, pre-sealing machine will be working in the glove box , the vacuum pump and the power supply are external, the second sealing machine does not need to be carried out in the glove box, and it comes with acupuncture function.
