How Does the Lithium Battery Double-sided Spot Welder Work?
Sep 21, 2022How Does the Lithium Battery Double-sided Spot Welder Work?
The double-sided spot welding machine for lithium battery pack is developed on the basis of single-sided spot welding machine. It is suitable for welding various lithium battery spot welding machines, fully realizing one machine for multiple purposes.
How the double-sided spot welder for lithium battery pack is realized, and its working principle is revealed for you.

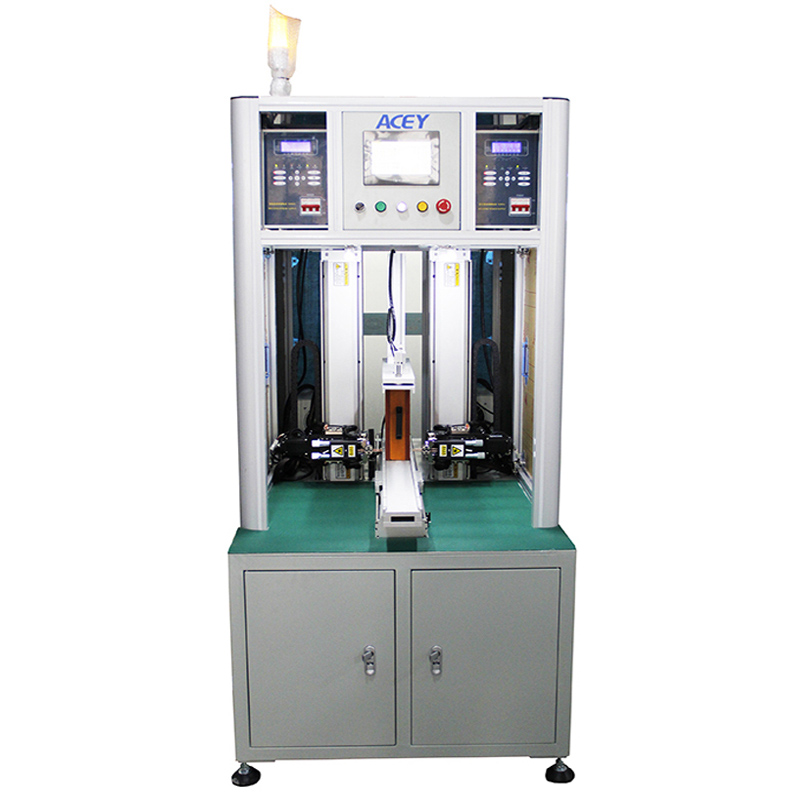

Working principle of double-sided spot welder for lithium battery pack

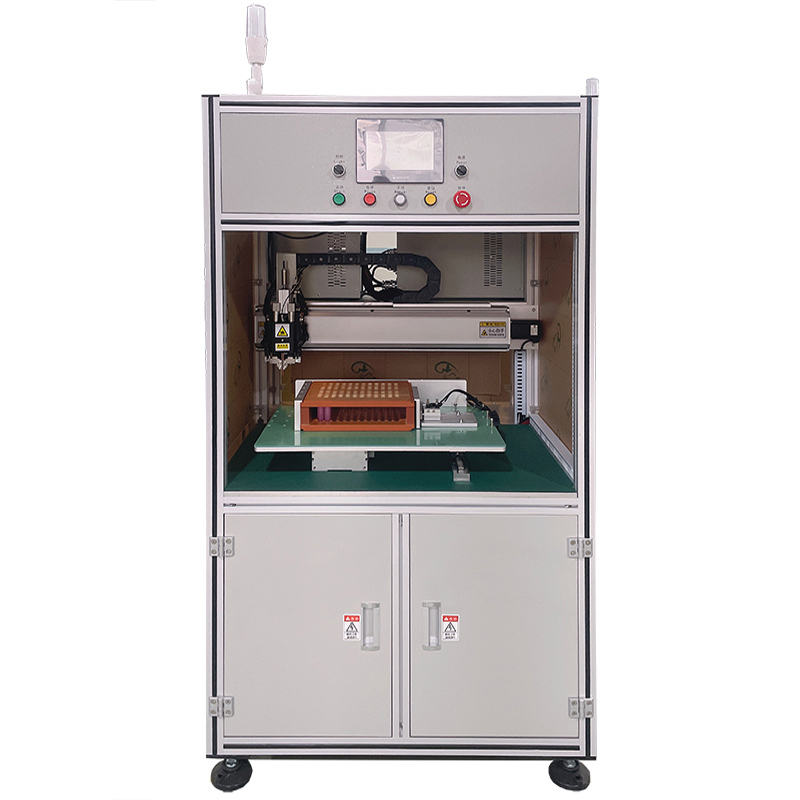

Double side spot welding machine. During the development of spot welding equipment, battery spot welding equipment can be customized according to the production process and welding requirements of users. There are many types of XY axis spot welding machines, double-sided spot welding machines and single head spot welding machines for welding lithium battery packs.
Double side spot welder is developed on the basis of single side medium frequency spot welder. First, you need a workstation. Such a workstation is required for welding of some parts. The second part is the requirements for purchasing lithium battery assembly and processing equipment. The premise is that the transformer of intermediate frequency spot welding machine must have a load rate greater than 50%. The dual station intermediate frequency spot welding machine uses a group of main control transformers and a group of controllers to work between the two stations, and must have self-locking features.
Medium frequency spot welding machine adopts high-performance pneumatic components. The winch and guide shaft are chrome plated, and the transmission pressure is flexible and reliable. The secondary interior of the welding transformer is cooled by water. It adopts optimized design, high permeability materials, low no-load loss, strong and stable power output, and long service life.
Microcomputer controller control, multi standard welding, double pedal, double pulse, double current control, thyristor temperature monitoring and multiple protection functions. The main circuit is controlled by two-way water-cooled thyristor to ensure balanced and reliable current output. The medium frequency spot welder adopts a dual station design, which is suitable for the welding of various lithium battery spot welders, fully realizing one machine for multiple purposes.
Acey new energy is a professional supplier of both manual spot welding machine and automatic welding machine. Welcome to contact us for more details.
